Pump, WW Exec, 4.0hp, 230v, 1-Spd, 56fr, 2-1/2" x 2", OEM

Pump, WW Exec, 4.0hp, 230v, 1-Spd, 56fr, 2-1/2" x 2", OEM
Click to enlarge

More images

Click to enlarge
Sale Price: $330.00
Compared at: $440.00
You Save: $110.00
Product ID : 3711621-13 371162113
Weight: 35.00 lbs
E-mail to a friend | Add To Wish List

Overview

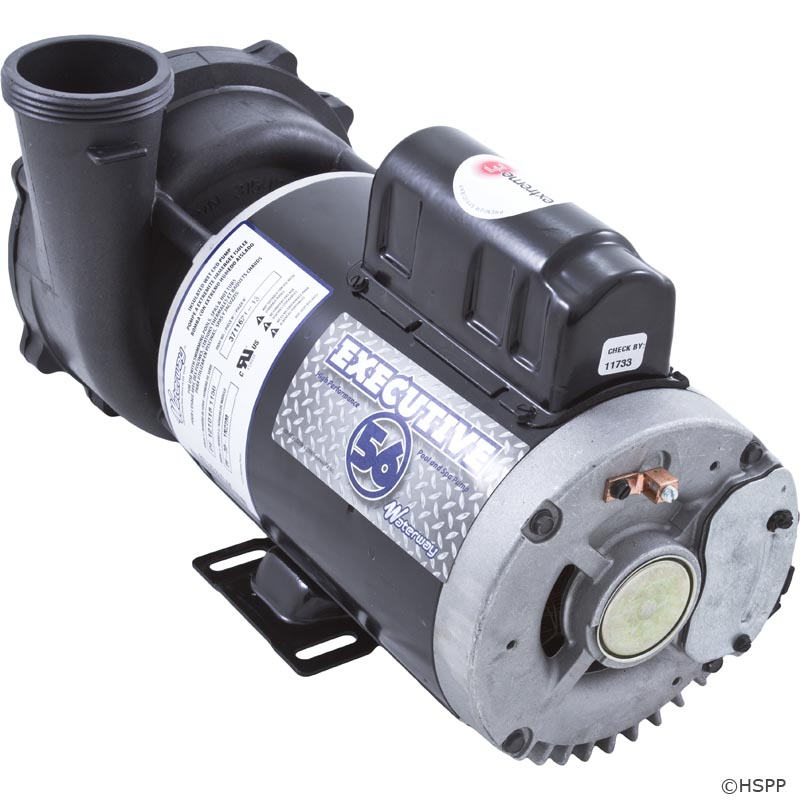

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features:
Executive wet end designed specifically for 56-frame motors
56-frame motor for added strength, cooler operating temperature, and longer motor life
Large 6-1/2" diameter wet end for higher head pressure
2-1/2" intake for improved flow performance and reduced noise
Wet end can be rotated for easy installation
Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
Two speed motors have four sets of insulated windings for increased efficiency
Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
Available in 1 to 5Hp and in single or dual speed

Purchase

Description

Complete Pump Type Portable Spa Pump
Speed 1 Speed (1-Spd)
Motor Voltage 230v
Drain Plug Location 3,6,9 o`clock
Pump to Motor Foot Types 4a
Suction Style Center

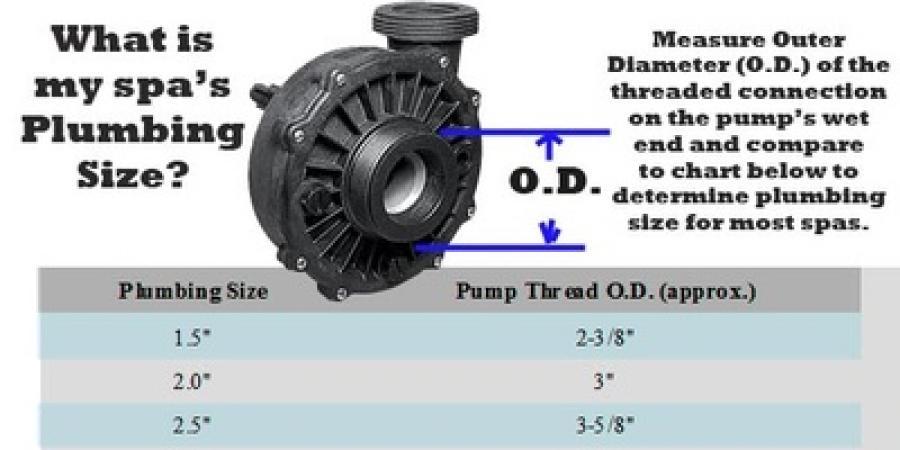

Suction Connection (Physical Dimension) 3-11/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2-1/2"
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 4.0hp
Motor Frame 56 Frame Thru-Bolt
Motor Amperage/Wattage 12.0A
Manufacturer Waterway
Pump Model Executive
Manufacturer Impeller Number 310-4190
Volute Fastening Type 8 Screws
Volute/Sealplate Number 315-1240
