Due to industry shortages of motors, Gecko is temporarily supplying a 3.0hp motor for this 2.5hp pump. Actual running amperages will remain the same while utilizing the 2.5hp impeller.
Aqua-Flo by Gecko's original offering in this high performance spa line, the "XP2", offers high performance while utilizing the same space requirements as most other applications. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, heavily jetted spas requiring increased flow.
Spa Pump Features:
Fine tuned impeller that moves water through the system with maximum performance
2" suction and discharge
48 and 56 frame versions
Thermally protected to extend life expectancy of motor
Multiple drain locations
Continuous rated horsepower of 1.5hp, 2.0hp, 2.5hp and 3.0hp (SEE THE AVAILABLE STYLES TAB)
Note: Due to a design change in the current XP2/XP2e pump wet ends, face plate or volute replacement is not suggested. Instead, replace the wet end to avoid issues with how it fits.
California Title 20 Compliant
In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.

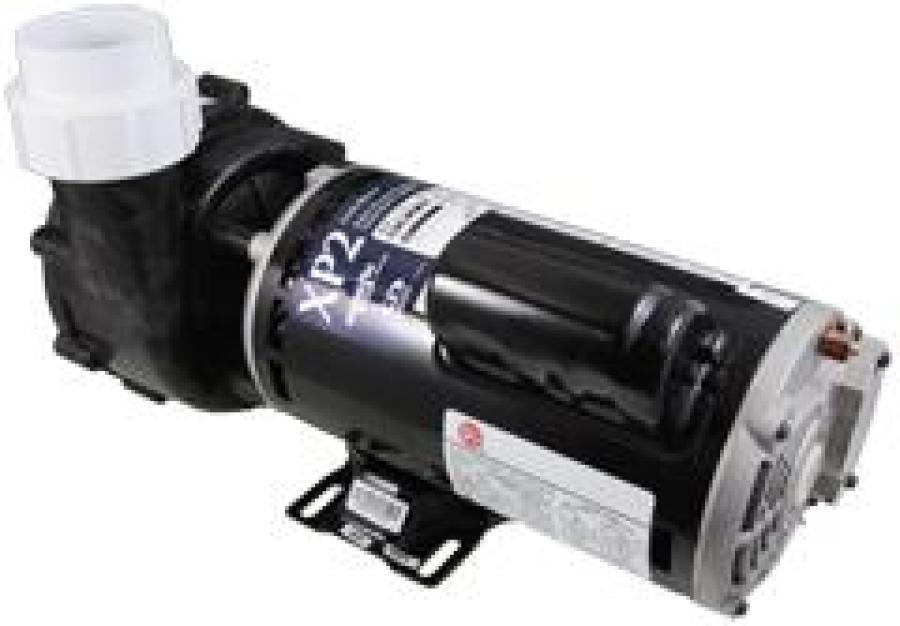

The part number 06125000-1040 refers to a Gecko Aqua-Flo Flo-Master XP2 series spa pump. This is a high-performance, 2.5 HP (operational horsepower), 230V, dual-speed pump with a 48-frame motor and a side discharge.
Because Gecko/Aqua-Flo is a major global supplier to the hot tub industry, this pump is an Original Equipment Manufacturer (OEM) component found in a vast range of brands.
Spa Manufacturers Using This Pump
The following manufacturers have used the 06125000-1040 pump or its direct variations in at least some of their models:
Marquis Spas (frequently cited as an exact replacement)
