The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors, along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and a large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.
The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.
Spa Pump Features:
Executive wet end designed specifically for 56-frame motors
56-frame motor for added strength, cooler operating temperature, and longer motor life
Large 6-1/2" diameter wet end for higher head pressure
2" intake for improved flow performance and reduced noise
The wet end can be rotated for easy installation
Two double shielded ball bearings with moisture-resistant grease for quieter operation and longer life
Two-speed motors have four sets of insulated windings for increased efficiency
Dimensions (H x W x L): 9.08" x 8.05" x 14.275"

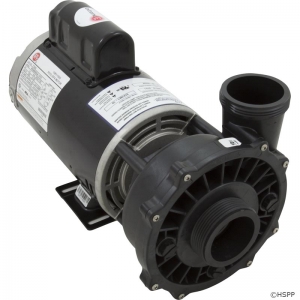

The part number ME-30226-20 refers to a complete Waterway Executive 3 HP (True Rated), 230V, 2-Speed spa pump.
This is a very common OEM pump used by numerous hot tub manufacturers because the "wet end" can be rotated for flexible installation.
Spa Manufacturers Using This Pump
Waterway pumps are widely adopted as original equipment across the spa industry. This specific pump (formerly P/N 3721221-1D) may be found in spas from brands including:
