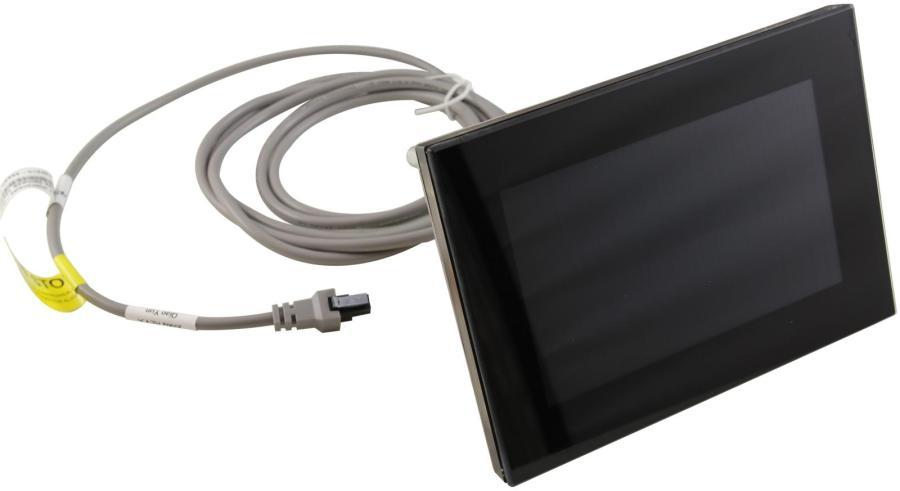

The part number G8535-03 refers to the Balboa Water Group SpaTouch 3 touchscreen control panel.
This is a widely compatible, generic component used by a multitude of spa manufacturers who incorporate Balboa BP series control systems into their hot tubs.
Spa Manufacturers Using the G8535-03 Panel
Since the
SpaTouch 3 is compatible with all Balboa BP Series control systems, it is used by a vast number of spa brands.
The panel itself is a generic touchscreen, with the specific functionality defined by the spa pack it connects to.
Aquaterra Spas
Artesian Spas
Cal Spas
Caldera Spas
Clearwater Spas
Coast Spas
Dynasty Spas
Master Spas: Uses the panel with their own internal part number X310191.
Marquis Spas: Uses this panel with their own internal part number 650-0680.
Northern Hot Tubs
Platinum Spas
QCA Spas
Strong Spas
Sundance Spas
Vita Spas
Key Features of the G8535-03
According to information from parts distributors and Balboa Water Group, the G8535-03 is the current reference for the SpaTouch 3 panel, replacing previous versions like 57254 and 57255:

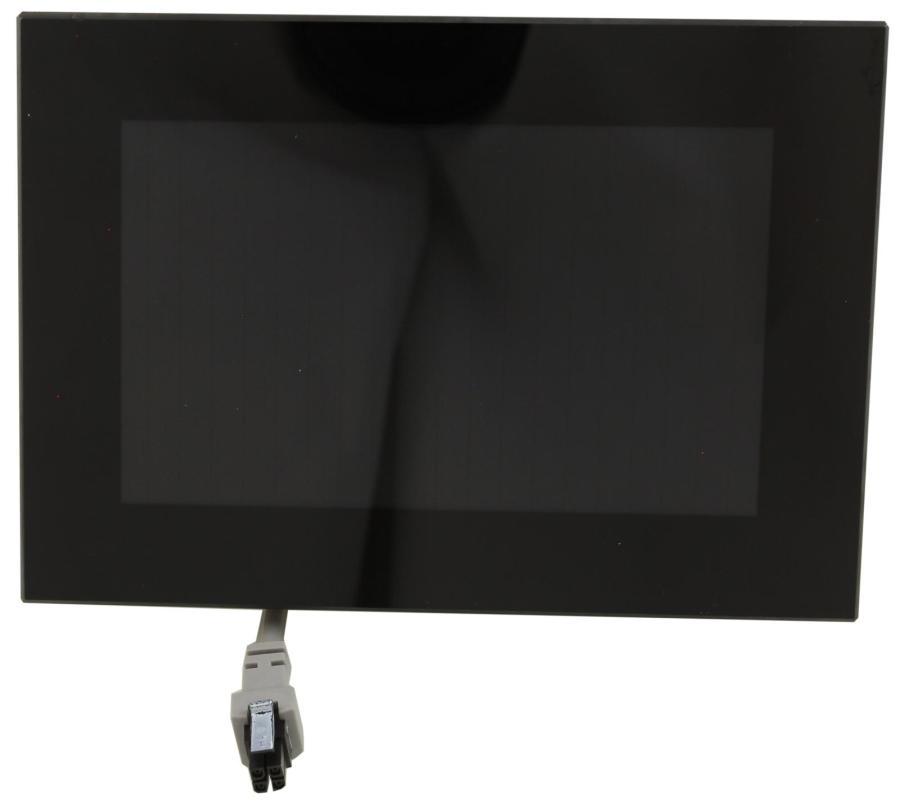

Display Type: 5-inch capacitive color touchscreen.
Compatibility: Designed to work with all Balboa BP Series control systems (including BP2000, BP600, BP2100, etc.).

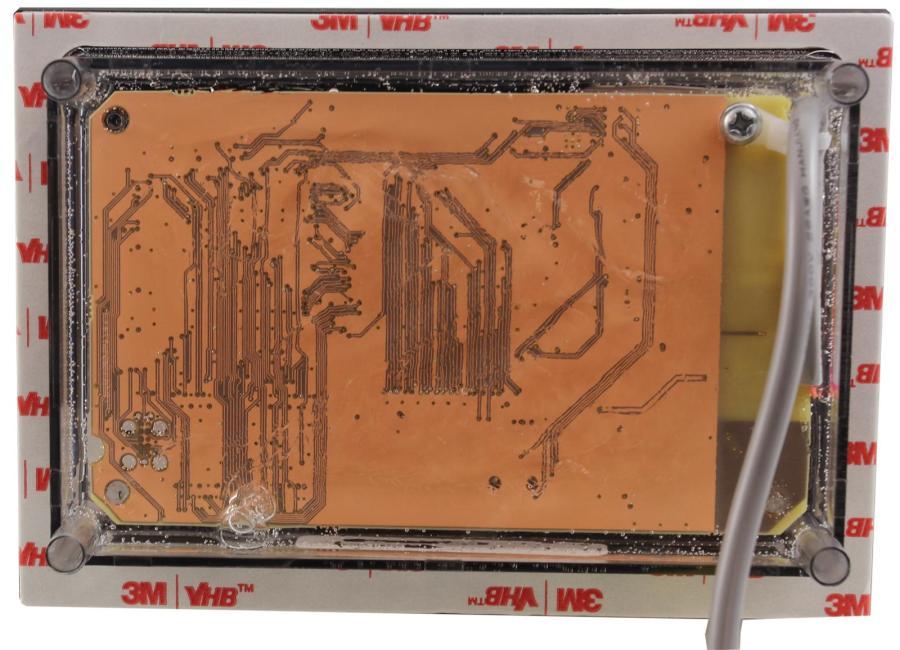

Design: Features a clear frame bezel and fully potted electronics for moisture protection.
