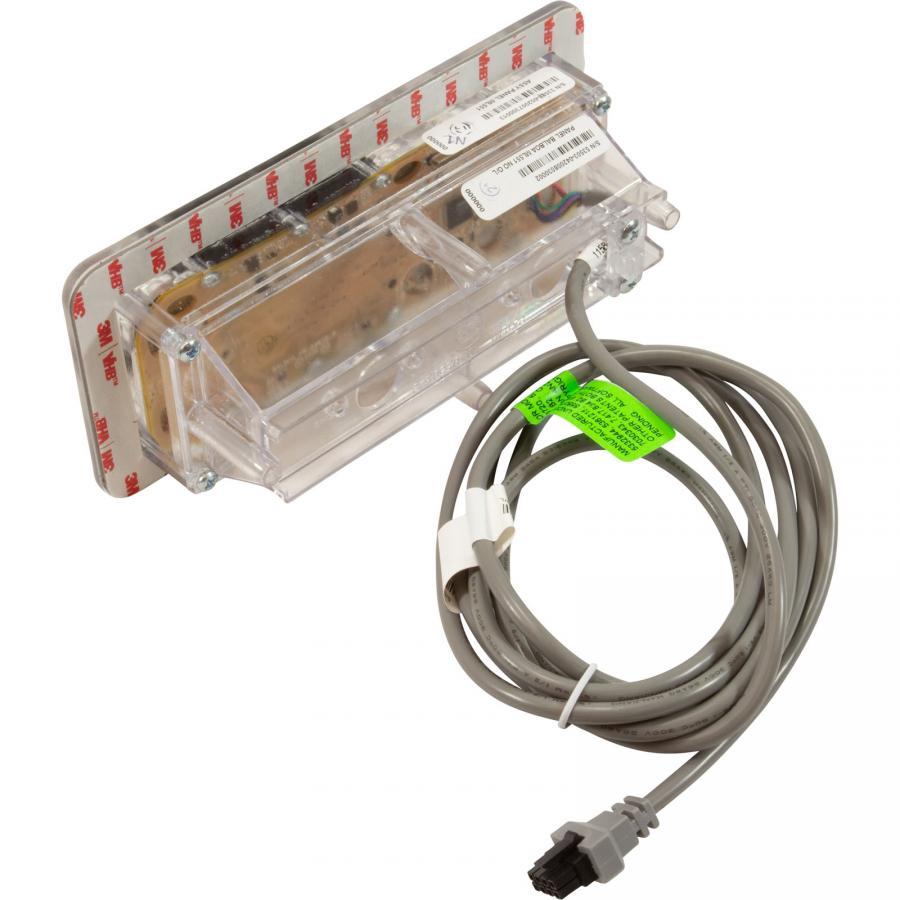

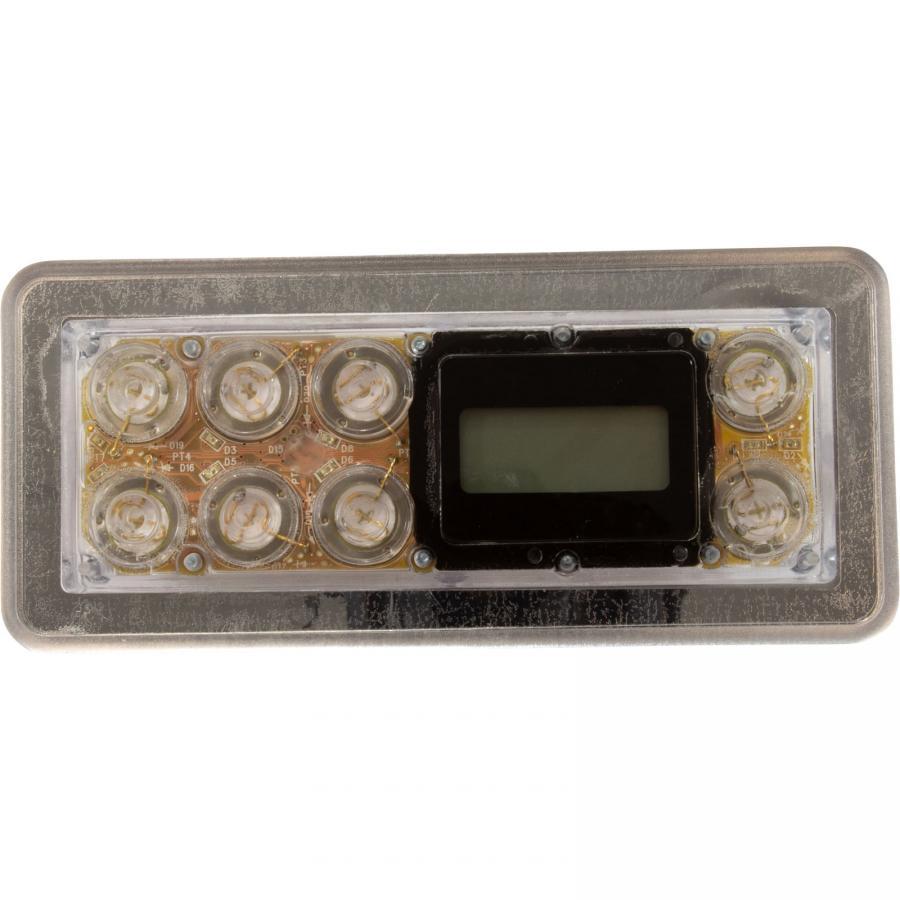

The Balboa 53503-04 Topside is a control panel for hot tubs and spas. Here are some details about the product:
It’s a Topside Control Panel.
The brand of the product is Balboa.
The model is ML551.
The topside type is electronic and it comes complete.
The cord connector type is an 8-pin Molex Plug Connector.
The topside shape is rectangular.
The cord length is 7ft.
The panel size is 7 1/4" x 3 3/8" cutout, 6 5/8" x 2 3/8" minimum.
It has 8 buttons.

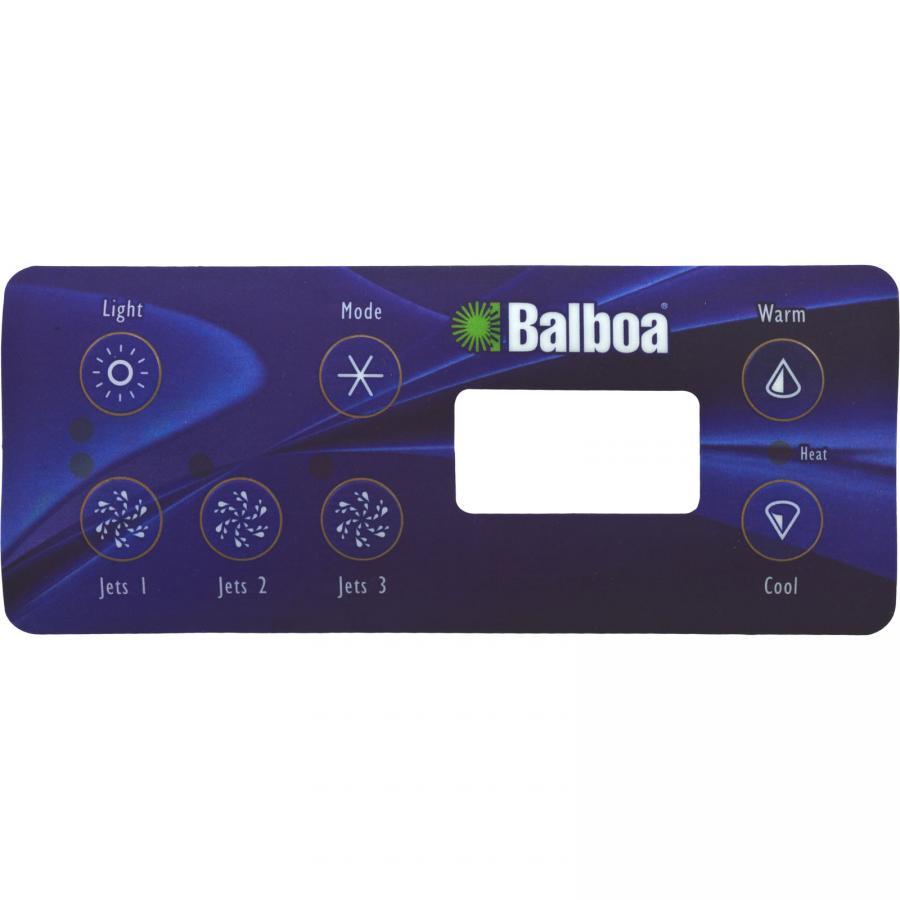

Please note that you must purchase an overlay for complete functionality.
The Balboa Water Group part number 53503-04 (Model ML551) is a common, 8-button LCD topside control panel widely used by many hot tub manufacturers because it is compatible with the versatile Balboa EL and GL series control systems.
Manufacturers Using the Balboa 53503-04 Topside
Many manufacturers incorporate Balboa's standardized control systems into their spas, including:
Aquaterra Spas
Artesian Spas
Cal Spas
Coast Spas
Coleman Spas
Dynasty Spas
Emerald Spas
Fantasy Spas
Freeflow Spas
Great Lakes Spas
Jacuzzi (on certain models)
Life Smart Spas
Marquis Spas (on E-Series and other models)
Master Spas
Platinum Spas
QCA Spas
Strong Spas
Sundance Spas (on certain models)
Thermo Spas
Vita Spas
Compatible Control Systems
The 53503-04 topside uses an 8-pin Molex-style plug and is designed specifically for use with Balboa's EL and GL series spa packs. It is also compatible with Balboa serial standard circuit boards, such as:
Balboa VS501SZ
Balboa VS504SZ
Balboa VS510SZ
Balboa VS511SZ
Balboa VS514SZ
Balboa VS515SZ
Balboa VS520SZ
Key Takeaways
To ensure a perfect match, the most reliable method is to check the specific part number and chip number on the sticker of your hot tub's main control box. While many manufacturers use the 53503-04 topside, different overlays with varying button configurations (e.g., for one, two, or three pumps) were used by the various spa brands.
