Fitment guidelines: For use with VL620S and VS/GS control systems
Compatible overlays: 11774, 11773, 11877

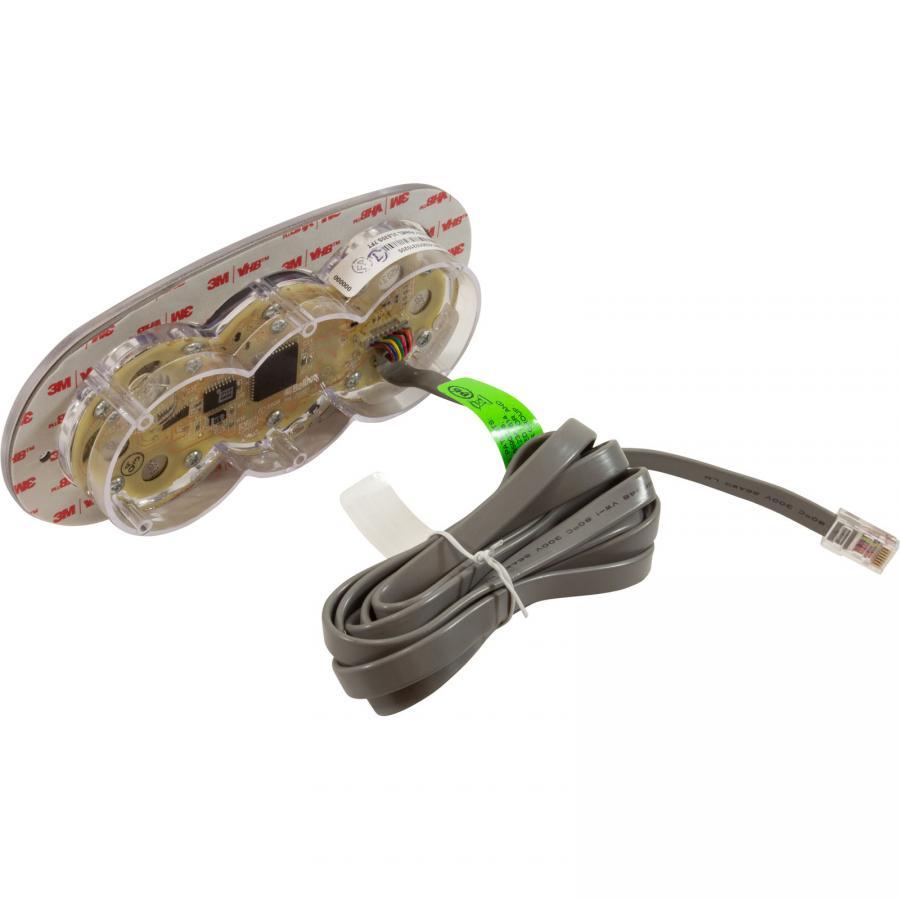

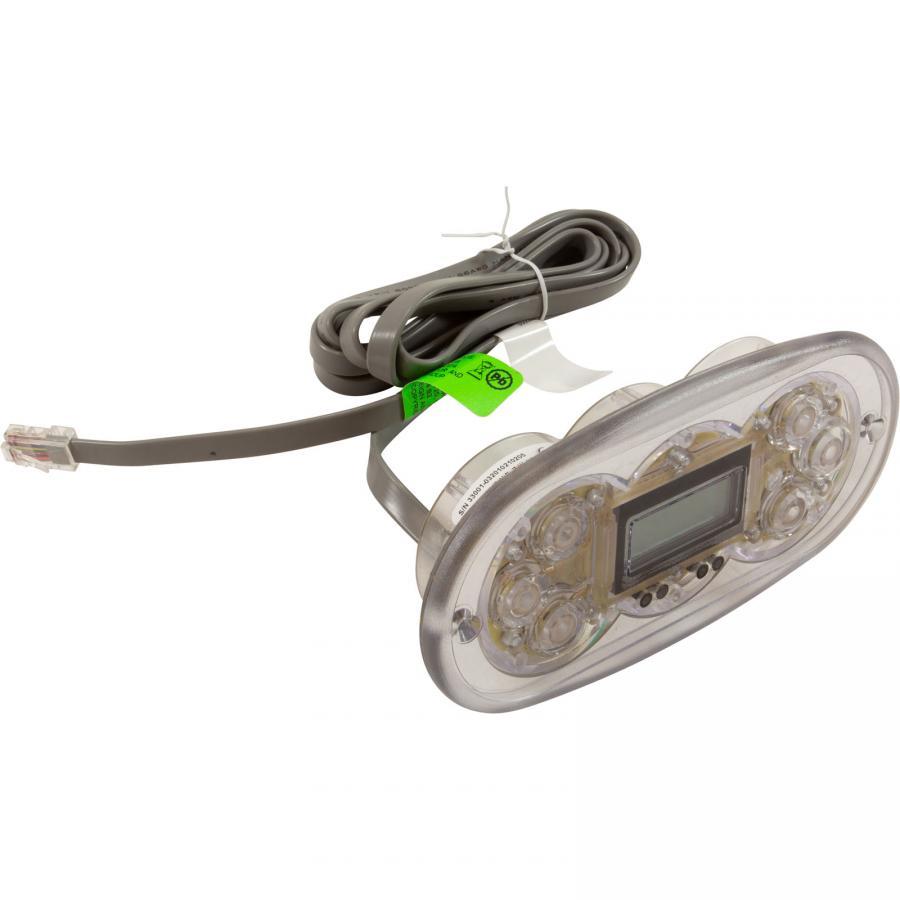

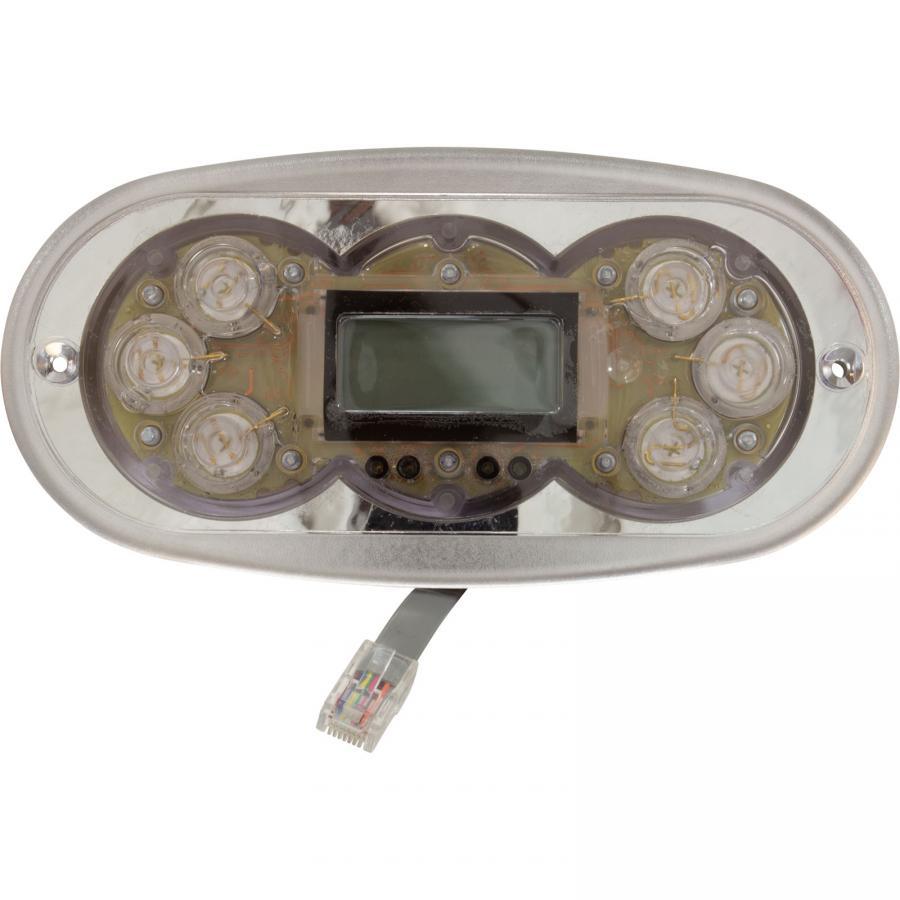

The Balboa 55582-02 topside is a 6-button control panel that is designed for use with Balboa VS/GS control systems. It has an oval shape and measures 7 inches wide by 3.5 inches tall. The panel has a self-adhesive gasket for mounting and comes with a 7-foot cord.

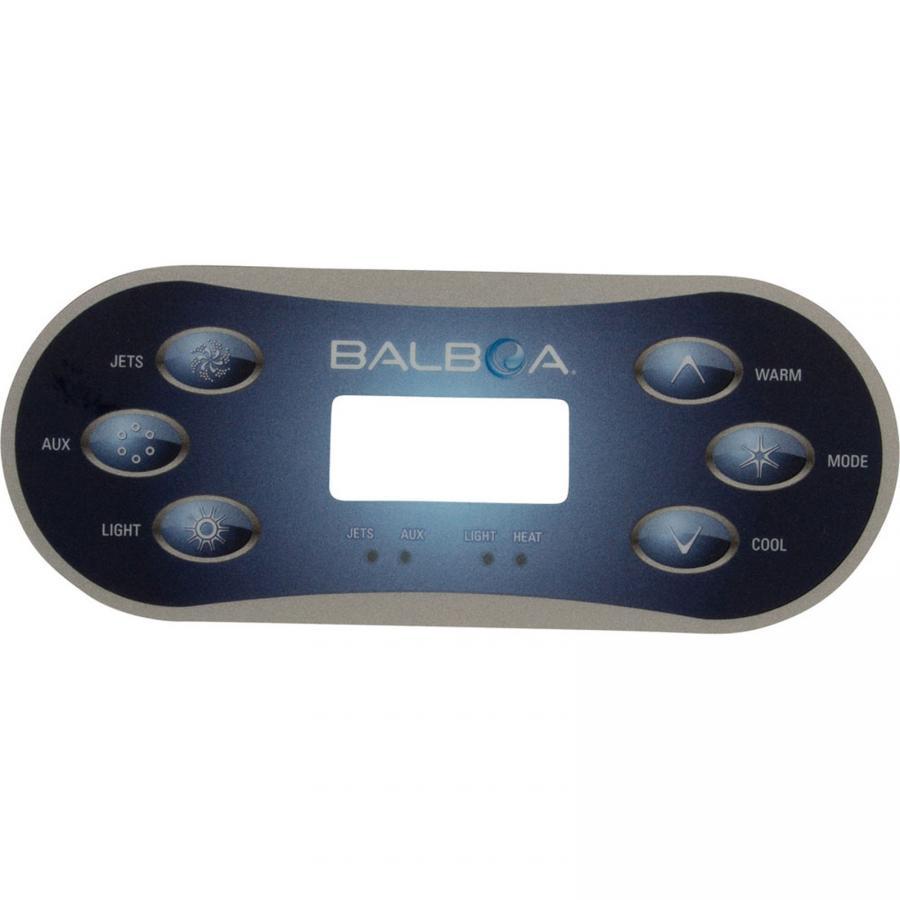

The topside is compatible with the following overlays:
11774: Black overlay with white buttons
11773: White overlay with black buttons
11877: Clear overlay
The Balboa 55582-02 topside is a high-quality product that is backed by a one-year warranty from the manufacturer. It is a reliable and easy-to-use control panel that is perfect for spas and hot tubs.
Here are some of the features of the Balboa 55582-02 topside:
6 buttons for easy control of your spa or hot tub
Self-adhesive gasket for easy mounting
7-foot cord for convenient placement
Compatible with a variety of overlays
Backed by a one-year warranty from the manufacturer
The Balboa topside control panel part number 55582-02 (also known as the VL620S model) is used in spas manufactured by several companies that integrate Balboa control systems.
Manufacturers Using Balboa Part 55582-02
Artesian Spas: This specific topside panel is commonly used in their South Seas Series.
Clearwater Spas: Used in select models of their spas, particularly those with VS504 control systems manufactured between 2011 and 2014.
Other Manufacturers: This part is a generic Balboa component and may have been used by a wide variety of other spa builders who utilize the compatible Balboa VS503SZ, VS504SZ, VS514SZ, and EP0600 control systems. These manufacturers can include:
H2O
Platinum Spas
Superior Spas
Key Details of the Part
Part Name: Balboa VL620S Topside Control Panel Button Configuration: 6-button panel (typically for Jets 1, Jets 2/Aux, Light, Warm, Mode, Cool).
Compatibility: Designed for use with specific Balboa VS and GS series control systems.
Alternative Part Numbers: Also known by part numbers G8262, 55582-01, and 50055.
Because many manufacturers use third-party components, the specific overlay graphic sticker on your panel usually identifies the exact spa brand and model.
