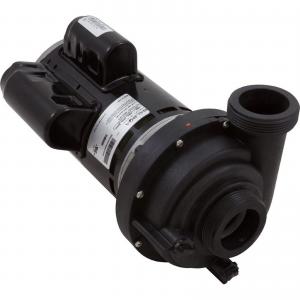

Pump, BWG, 2-Spd, 2.5hp, 230v, 60Hz, OEM
Product ID: 6500-343 6500343
Weight: 35.00 lbs
Price:
$539.99
$599.99
| Manufacturer | Balboa Water Group |
| Pump Model | TheraMax |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 2.5hp |
| Motor Frame | 49 Frame Thru-Bolt |
| Motor Amperage/Wattage | 11.0A/3.3A |
NO PUMP STAND included
The part number 6500-343 refers to the Theramax dual-speed spa pump, a 2.5 HP, 230V component used extensively as original equipment in Sundance Spas and Jacuzzi Hot Tubs.
This pump is a 48-frame, baseless model typically used as the primary jet pump in high-performance spa series.
Hot Tub Models and Brands Using the 6500-343
Sundance and Jacuzzi are the primary manufacturers utilizing this part, often across multiple decades of production.
- Sundance Spas:
- 850/750 Series (1997–2004): Altamar, Austin, Cameo, Capri, Optima, and Maxxus (as Pump 1).
- 780 Series (2007–07/2010): Camden, Certa, Hamilton, Hartford, and Hawthorne.
- 680 Series (2008–07/2010): Burlington.
- Additional Models: Bahia (2002–2006), Calypso (1997–1999), Caprio ST (2001–2003), Cayman (2003–2006), Cyprus (2000–2002), and Palermo (2002–2005).
- Jacuzzi Hot Tubs:
- J-300 Collection (2002–07/2010): Models J-335, J-345, J-355, J-365, J-375, and J-385.
- J-200 Collection (2007–07/2010): Models J-230, J-270, and J-280.
- Additional Series: J-325 (2005–2007) and earlier J-300 series models (J-330 through J-380) from 2002–2004.
- Gatsby Spas: Certain legacy models (e.g., S35A9-B) utilize this pump.
Key Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Balboa Water Group (Current OEM for Sundance/Jacuzzi) |
| Horsepower | 2.5 HP Continuous (approx. 4.2–4.5 Brake HP) |
| Voltage / Speed | 230V / 2-Speed (11.0A High / 3.3A Low) |
| Frame Size | 48Y (48-Frame) |
| Connections | 2" Male Buttress Thread (measures ~3" across threads) |
| Discharge | Side Discharge (Wet end can be rotated in 90° increments) |
Replacement Information
- Baseless Design: The 6500-343 is "baseless," meaning the mounting foot is not attached directly to the motor.
- It requires a separate mounting bracket (part #6000-532) for installation.
- Part Evolution: It serves as a direct replacement for numerous legacy Sundance part numbers, including 6500-128, 6500-261, 6500-761, and 6500-347.
- Current Version: The modern equivalent is often listed as 6500-343S. For a single-speed version of this pump, the part number is 6500-341
