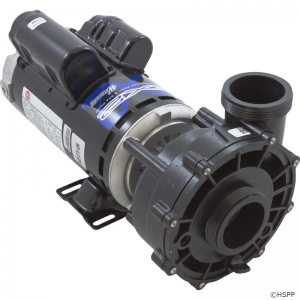

| Complete Pump Type |
Portable Spa Pump |
| Speed |
2 Speed (2-Spd) |
| Motor Voltage |
230v |
| Drain Plug Location |
4,6,9 o`clock |
| Pump to Motor Foot Types |
2 |
| Suction Style |
Center |
| Suction Connection (Physical Dimension) |
3-1/16"od |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Pipe Size |
2" |
| Discharge Style |
Side |
| Discharge Connection (Physical Dimension) |
3-1/16"od |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Pipe Size |
2" |
| Horsepower |
3.0hp |
| Motor Frame |
48 Frame Thru-Bolt |
| Motor Amperage/Wattage |
12.4/3.3 |
| Manufacturer |
Waterway |
| Pump Model |
EX2 |
| Manufacturer Impeller Number |
310-2350 |
| Volute Fastening Type |
8 Screws |
| Volute/Sealplate Number |
315-2311 |
Spa Manufacturers Using This Pump
As a primary OEM component, this pump is found in numerous spa brands, including:
- Catalina Spas
- Master Spas
- Bullfrog Spas
- Artesian Spas
- Cal Spas
- Marquis Spas
- Dream Maker Spas
- Viking Spas
