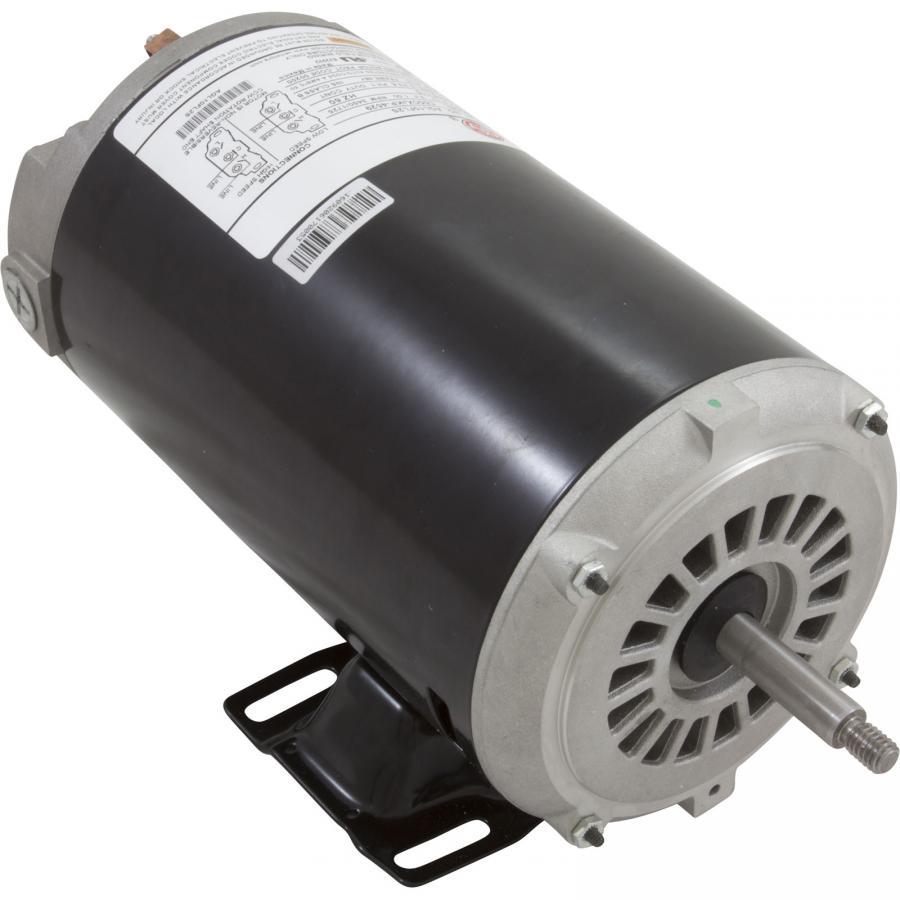

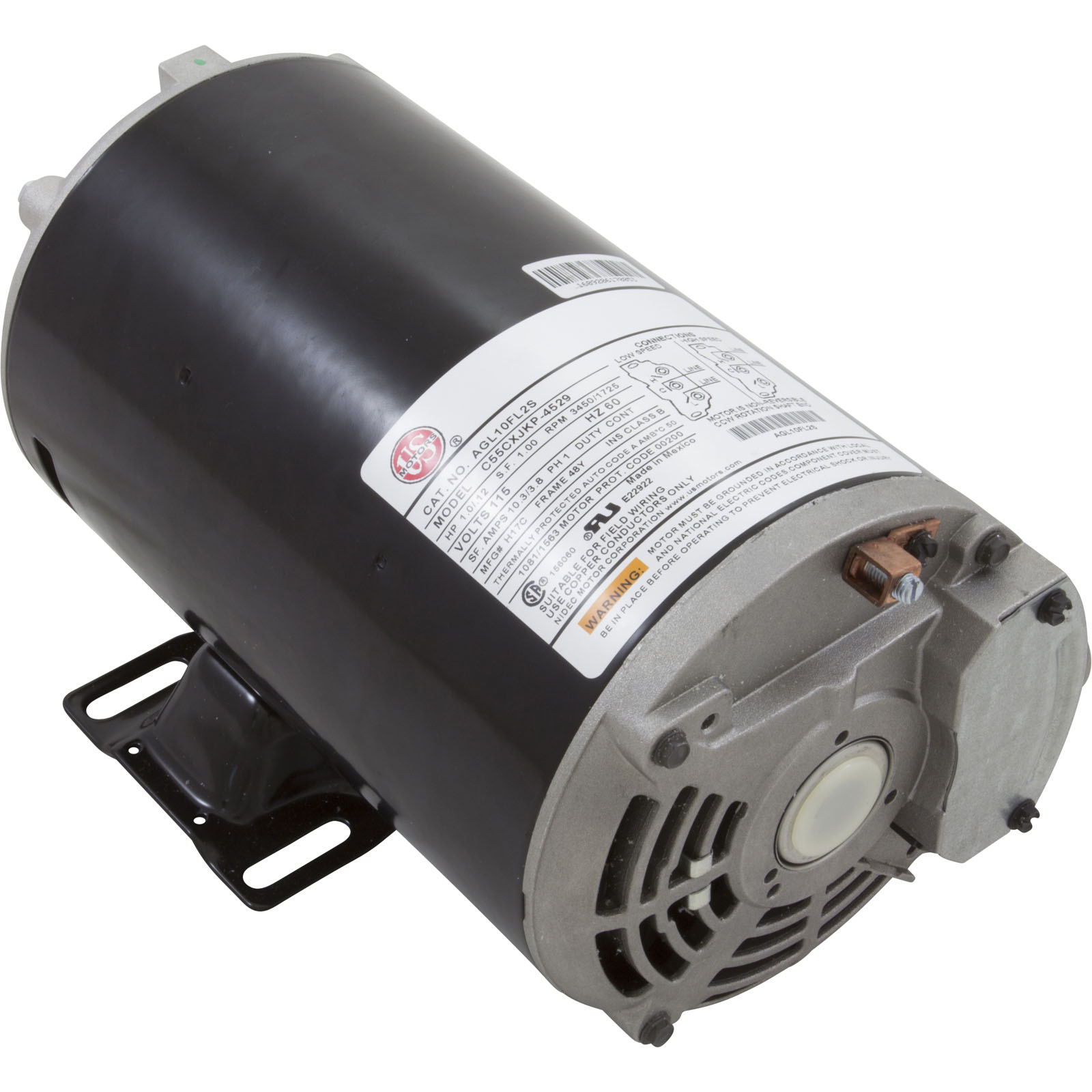

1 HP 3450/1725 RPM, 10.3 amps, 115V 60hz. Single Phase. Capacitor Start

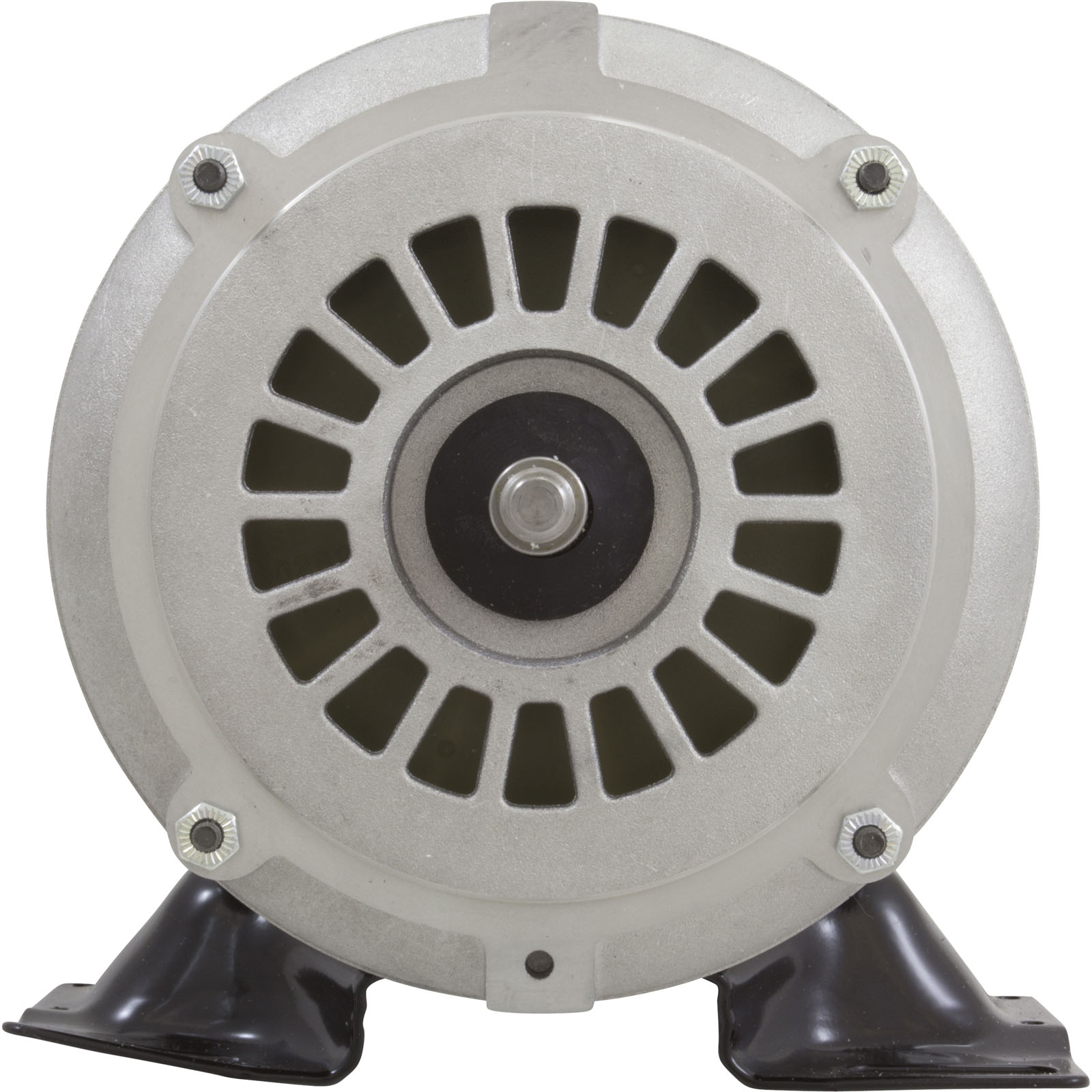

NEMA 48Y Open Frame, 1/2" diameter stainless steel shaft with 3/8" dia. end thread
1.0 Service Factor, Auto Overload Thermal Protection, Class B insulation
Non-Reversible - CCW Rotation facing the shaft
Rigid Base Mount, Ball Bearings, 3 1/2 shaft height

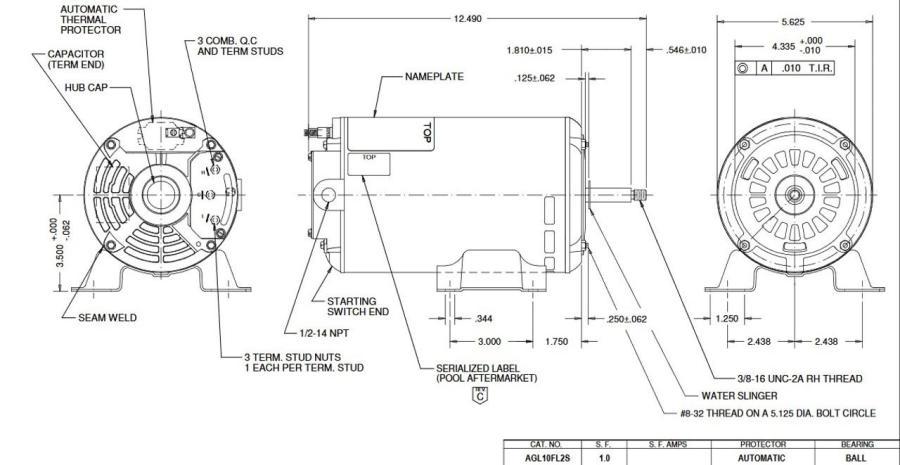

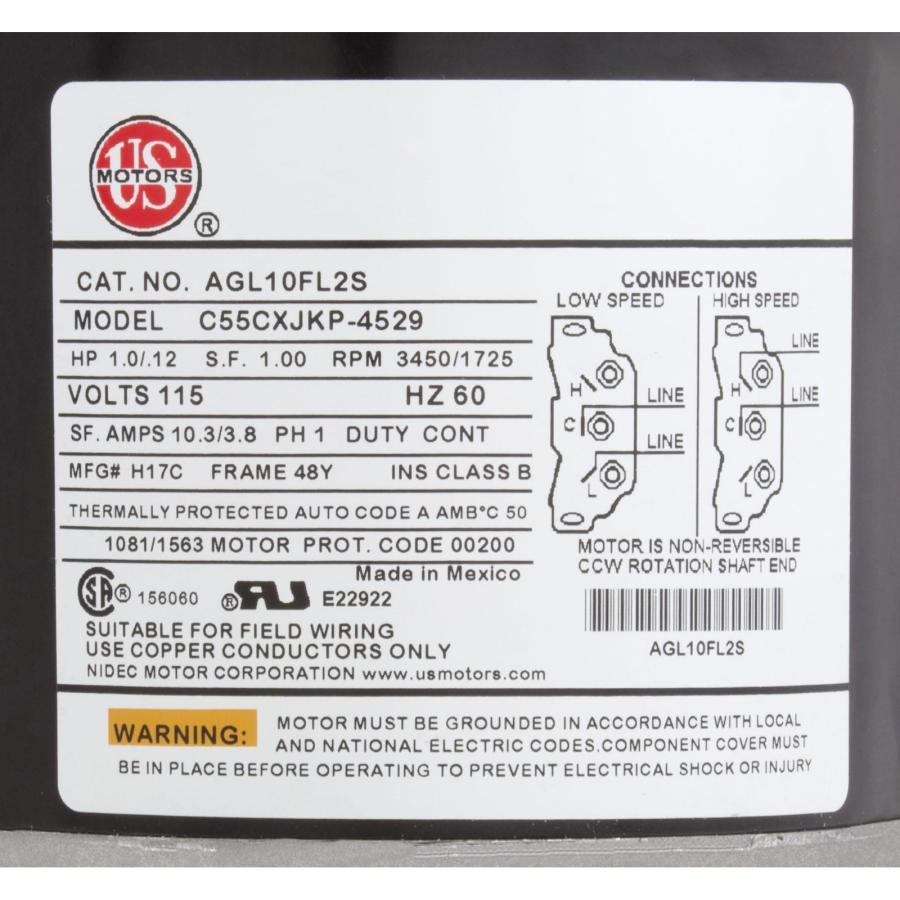

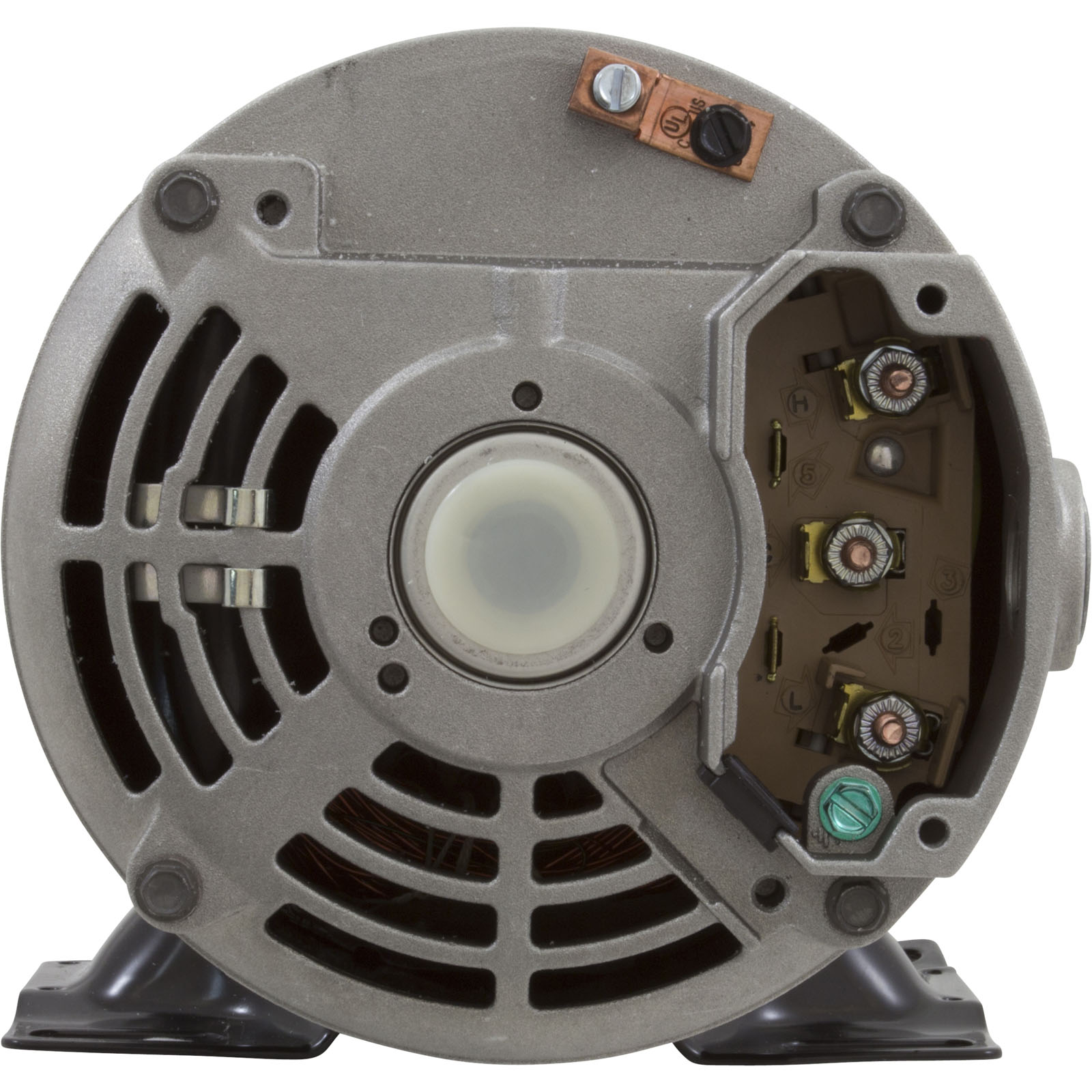

Above-ground swimming pool and spa motors. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Wiring connection diagram on the motor nameplate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo, and many other above-ground pool and spa pumps.
Motor Type
Spa
Motor Amperage
10.3A/3.8A
Voltage
115v
Frame Type
48Y
Speed
2 Speed (2-Spd)
Horsepower
1.0hp
Total Horsepower
1.0thp
Motor Shaft Type
Threaded
Motor Style
Thru Bolt
Capacitor On Top
No
Manufacturer
US-Motors
Nidec Motor Corp/US Motors
AGL10FL2S
5238-84, 612939 , C55CXFBY-2918, EMR-60-6004
Effective July 19, 2021, the US Dept of Energy regulations on single-speed, two-speed, and booster pumps go into effect. Please check your local and State codes to comply with their requirements for replacement pump motors.
ATTENTION: Shipping Restrictions Apply! California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed. New York: New York State Energy Research and Development Authority (NYSERDA) Section 509.23 has adopted the same standards as the State of California Title 20 laws. This pump/motor fails to meet these new regulations. Consequently, shipping this pump/motor to New York is illegal and violates state law. Should an order for this item be placed with a New York shipping address, we will be forced to cancel the order.
Familiarize yourself with the laws and building codes in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
