Balboa Water Group/Vico pumps provide long life, excellent performance, value pricing, and configuration flexibility all in a cost-effective package. With flow rates that can exceed 230 gallons per minute, Vico pumps are ideal for value-priced applications in any size spa. With lower price points, ease of installation, high flow rates, and energy-efficient packages, Vico pumps offer the options you need and spa owners truly appreciate.
Spa Pump Features:
Compact 56 frame design
Dual Speed Pump (can be wired for one speed)
Energy efficient and whisper quiet
Multi-direction volute mounting options deliver a range of plumbing configurations
All seals are carbon ceramic with Viton elastomers for long-lasting performance. Easily enduring prolonged heat and chemical exposure
California Title 20 Compliant
Motor Voltage
230v
Speed
2 Speed (2-Spd)
Motor Amperage/Wattage
12.0A/3.5A
Horsepower
4.0hp
Manufacturer
Vico/Balboa
Pump Model
Ultimax
Suction Pipe Size
2"
Suction Connection Type
Male Buttress Thread (mbt)
Suction Style
Center
Discharge Pipe Size
2"
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Style
Side
Motor Frame
56 Frame Thru-Bolt

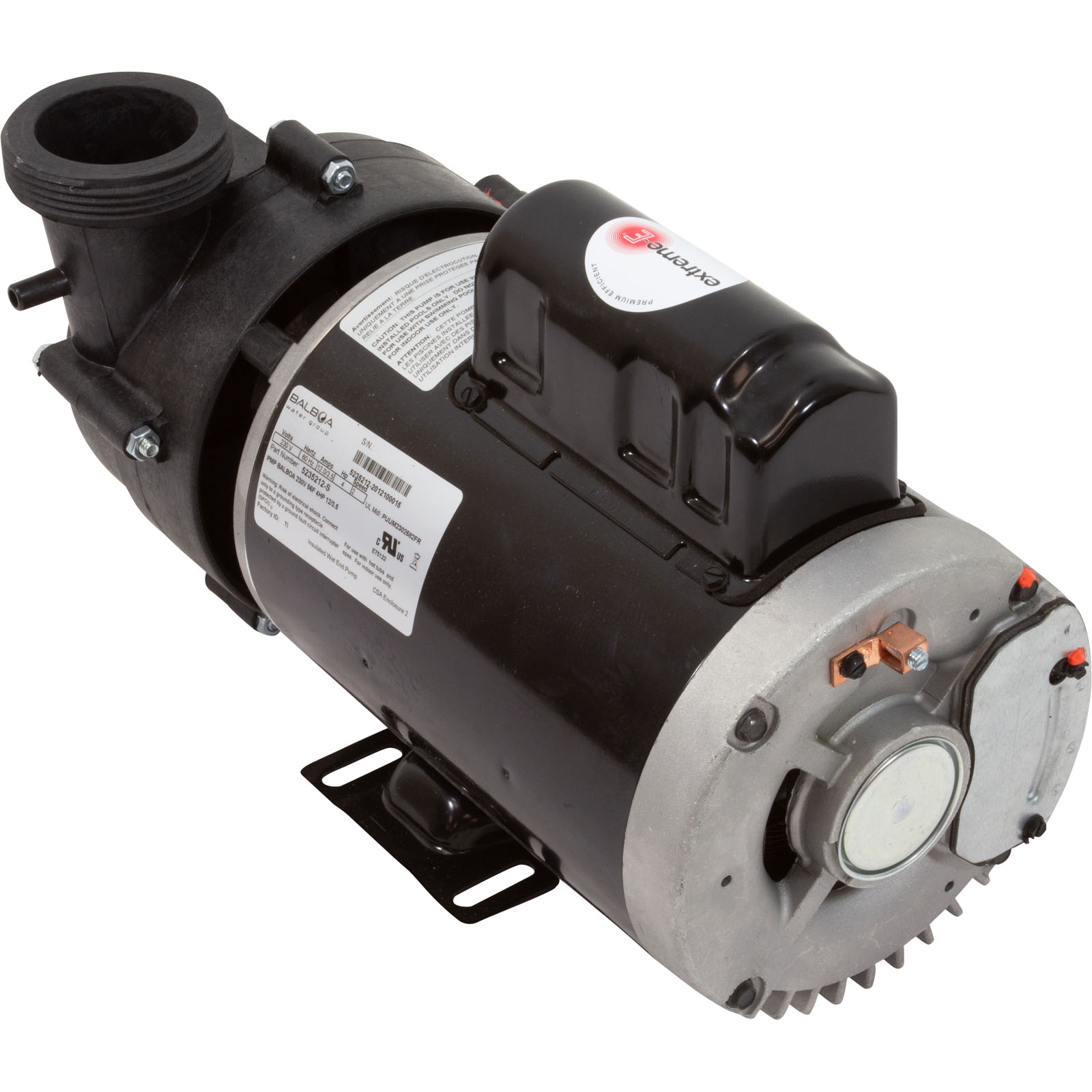

The Balboa Vico Ultimax pump with part number 5235212-S has been used as an original equipment manufacturer (OEM) part in various hot tub and spa brands.
Manufacturers often use standard components from suppliers like Balboa, which provides design flexibility across many spa models
Brands known to have utilized the 5235212-S pump or its compatible variations in their spas include:
Coleman Spas: This pump (and its associated OEM part numbers 110733, 109982, and 103699) was standard on some of their models.
Master Spas: The 5235212-S is listed as a potential replacement for certain Master Spas pumps (e.g., X320528 model).
Clearwater Spas: While specific part numbers vary, some configurations use Balboa Vico pumps.
