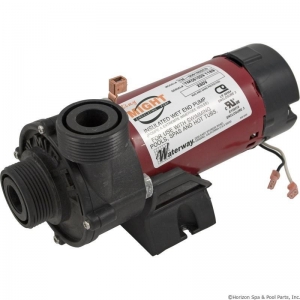

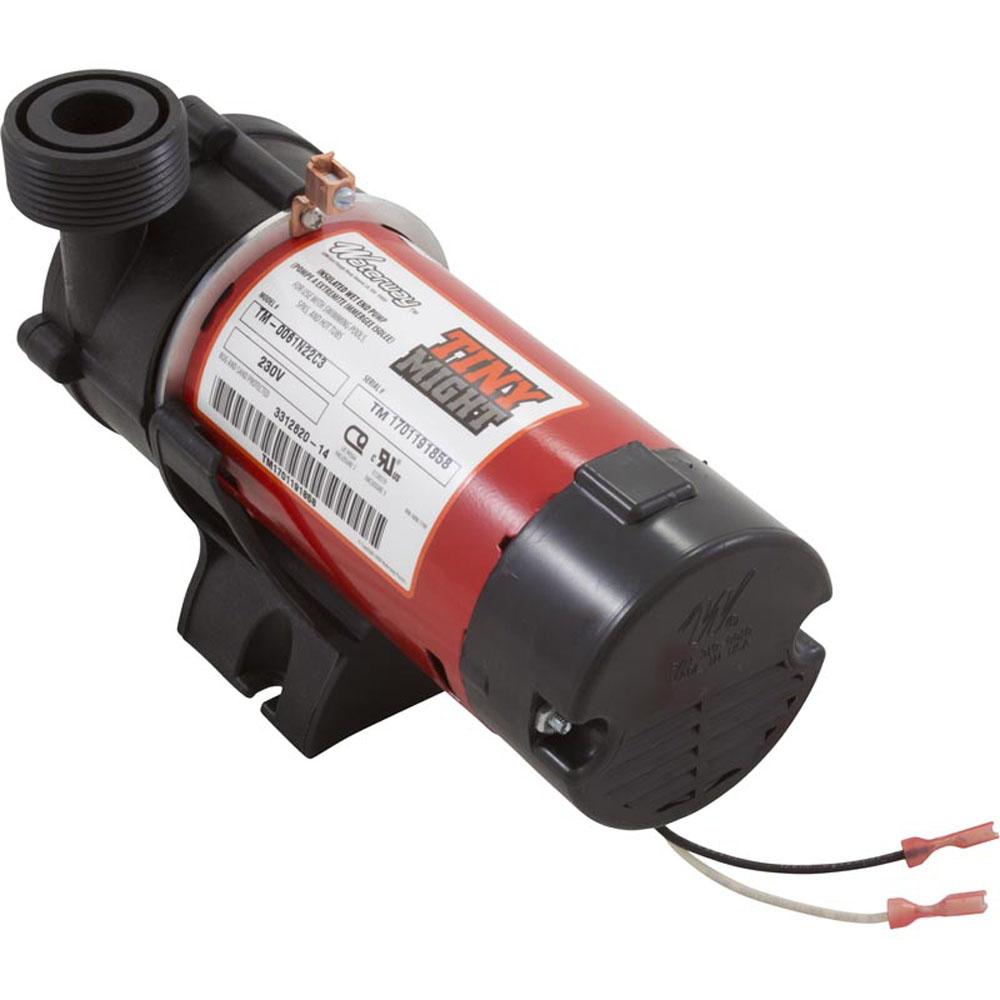

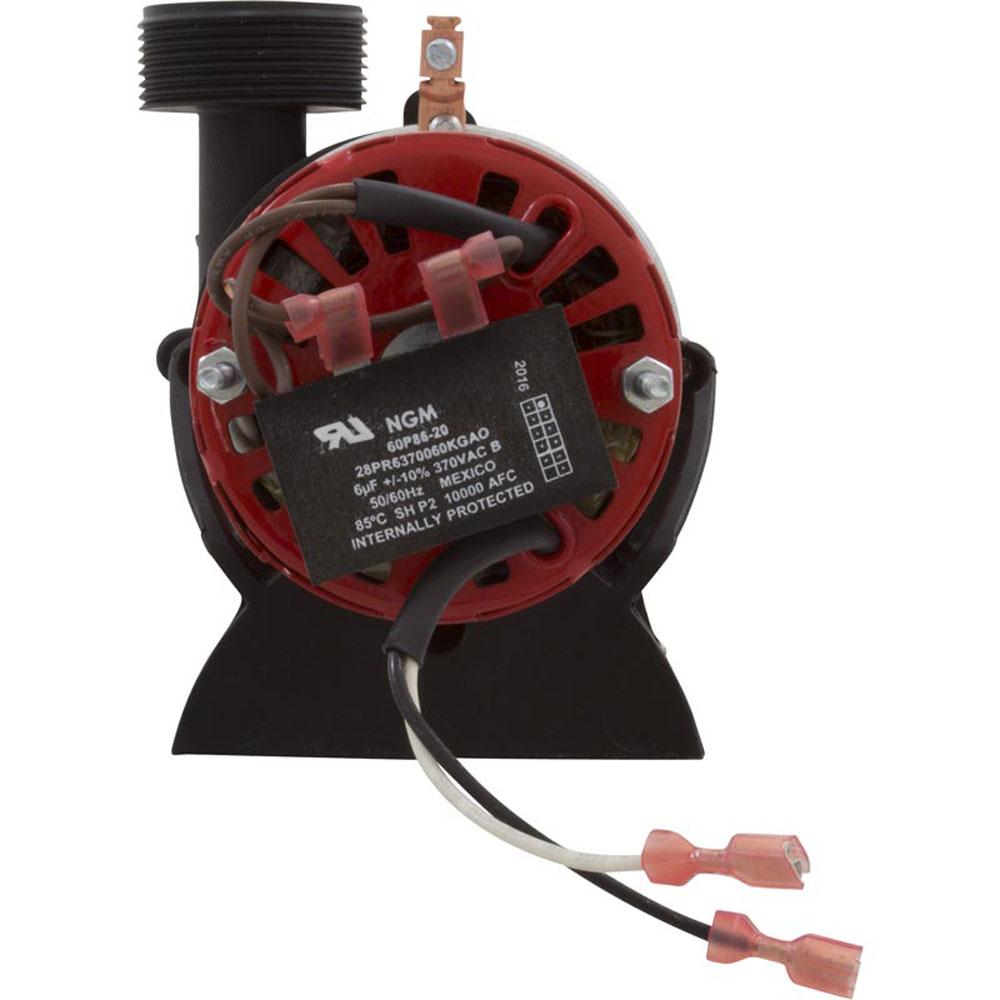

Circulation, Pump WW Tiny Might, 1/16hp, 230v, 1/2"s x s/1"Union, OEM

Circulation, Pump WW Tiny Might, 1/16hp, 230v, 1/2"s x s/1"Union, OEM

Be the first to review this product

Product ID: 3312620-14

Weight: 10.00 lbs

$251.99
~~$279.99~~

BUY MORE - SAVE MORE DISCOUNT AT CHECK OUT

SHIPPING COST DISCOUNT SEEN IN CART AND APPLIED AT CHECKOUT.

What Brand is Replacement for?

Term and Conditions

Yes, I reviewed, understand, and agree to the terms and conditions

Add to wish list E-mail to a friend

Overview

Spa Pump Features: High volume side discharge efficiency 60% more efficient than similar center discharge pumps Side discharge for optimum flow Union or barb styles available Wetend can be rotated for easy installation Large 6-1/2" diameter wet end for higher head pressure Dimensions (H x W x L): 5.9" x 3.4" x 10.1"

Complete Pump Type	Circulation Pump
Speed	1 Speed (1-Spd)
Motor Voltage	230v
Drain Plug Location	None
Pump to Motor Foot Types	Footless
Suction Style	Center
Suction Connection (Physical Dimension)	1-15/16" od, 3/4" id
Suction Connection Type	Male Buttress Thread (mbt), Slip (s)
Suction Pipe Size	1", 1/2"
Discharge Style	Side
Discharge Connection (Physical Dimension)	1-15/16" od, 3/4" id
Discharge Connection Type	Male Buttress Thread (mbt), Slip (s)
Discharge Pipe Size	1", 1/2"
Horsepower	1/16hp
Motor Amperage/Wattage	0.5A
Manufacturer	Waterway

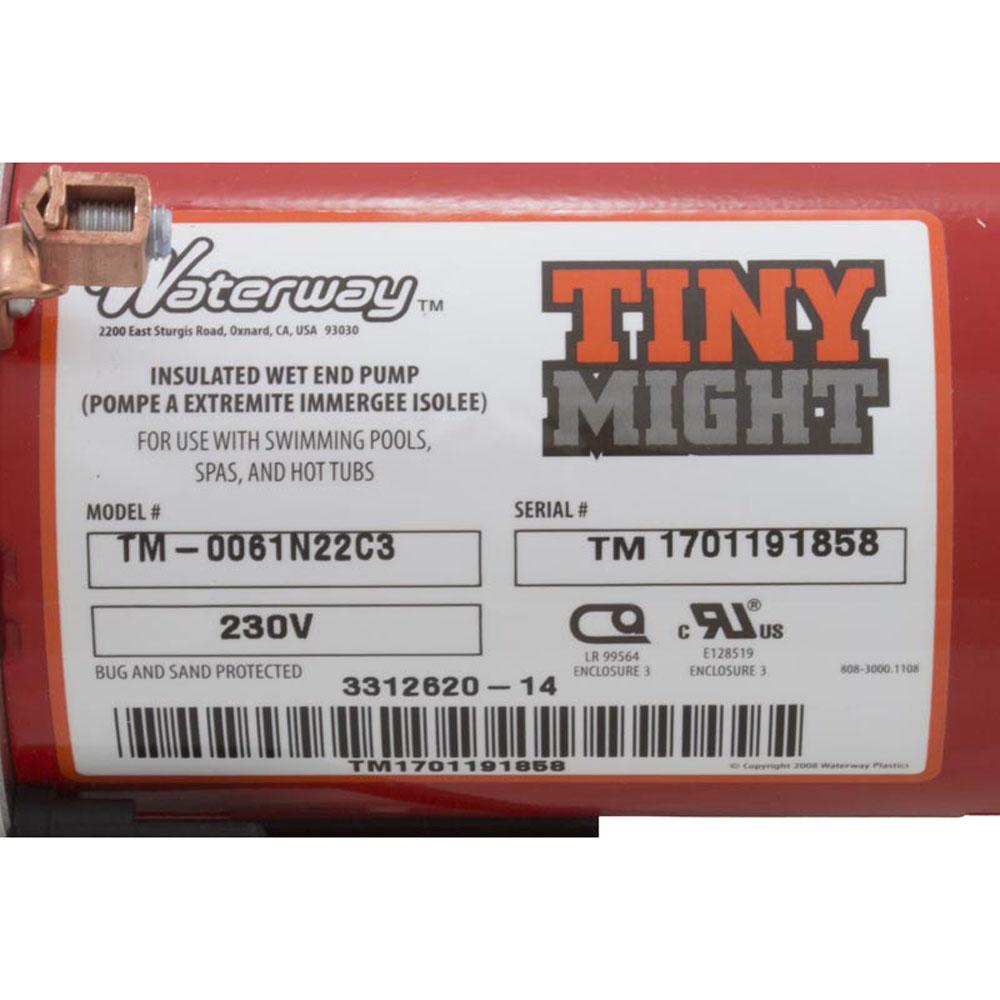

Pump Model	Tiny Might
Volute Fastening Type	4 Screws

Replaces: _3312620-0411 , _3312620-0458 , _3312620-1406 , _3312620-1466 , _3312620-1470 , _3312620-1472 , _3312620-1473 , _3312620-1485 , _3312620-1496 , _3312620-19 , _3312620-1968 , 1-P101TM1024 , 300-9020 , 322060 , 404032 , 428745 , 609798 ,806105066152 , 9330-10S , TM-0061N22C3 , WWP-10-1430 , WWP331262014
