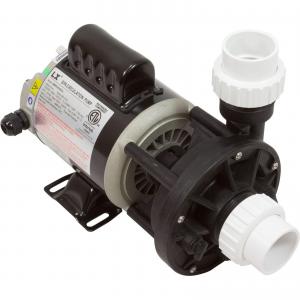

The LX Circulation pump 48WTC0153C-1 is a 24-hour circ pump that can be operated at either 115v or 230v. It has a dual voltage of 120 or 240v. The amp draw is 1.6A (120V) & 0.8A (230V). It has a 1-1/2" union with a side discharge. The pump comes with unions included.
The compact size makes this circ pump an ideal replacement for other comparable pump brands and models. It connects to a 1 1/2 inch inner diameter plumbing/hose/pipe. This is a 48-frame circulation pump for hot tubs.
This high-quality spa circulation pump is heavy-duty with a side discharge. It includes 2x pump unions and o-rings too!
The pump is configured for 230-volt operation and draws 0.8 amps at 115V or 1.6 amps at 230V. The circulation pump comes with a mounting base.
The LX Spa Circulation Pump, LX 48WTC, has a horsepower of 1/15HP, RPM of 1725, an intake of 1-1/2", and a discharge of 1-1/2" Side Discharge. It has a frequency of 60Hz and a high speed (Amp) of 0.7.
This is a powerful Water Technology limited LX Whirlpool Bath Pump: WTC series hot tub spa pump. It’s an efficient and saving-energy product that improves water performance and reduces noise. The mechanical seal type ensures watertight for long-time continuous operation.
This circulation pump replaces the following 120v spa pump models: discontinued 02093635-2 replaced by 02093000-2010, 02410362-2,02093644,321810, X321790,02093637-2,02093460-2,02410433-2,02093636-2
is a spa circulation pump manufactured by LX Lingxiao Pump. It is widely used as a replacement part in hot tubs and spas from various manufacturers.
Manufacturers Using This Pump
The LX 48WTC0153C-I pump, or equivalent models it replaces, have been used in spas from several different companies:
Sundance Spas: This pump was specifically designed for use in Sundance spas manufactured before July 11, 2011.
Jacuzzi: The pump or its direct replacements are compatible with some Jacuzzi models.
Dynasty Spas: An alternate part number for this pump (02093012-2510) is linked to Dynasty Spas.
Energy Saver Spas: LX Guangdong pumps were predominantly used by this manufacturer.
Other Manufacturers: The pump is also a common replacement for comparable circulation pumps from Aqua-Flo/Gecko Alliance (Circ-Master model CMHP) and Waterway (Iron Might model). These third-party pumps were used in many other brands of hot tubs.
