The Iron Might is the ultimate in efficiency. It uses only 1.3 Amps while offering twenty-four hour circulation, pumping 40 gallons per minute (GPM).
Spa Pump Features:
Side discharge for optimum performance
24 hour circulation
48 frame proven design
1-1/2" union in/out
Only 1.3 Amps
Dimensions (H x W x L): 8.25" x 6.5" x 12"
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size
1-1/2"
Discharge Style
Side
Discharge Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size
1-1/2"
Horsepower
1/15hp
Motor Frame
48 Frame Thru-Bolt
Motor Amperage/Wattage
1.3A

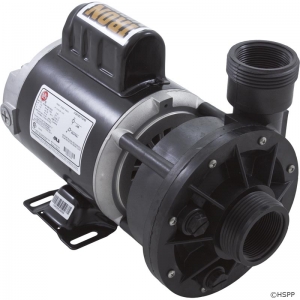

The part number 3410030-1E refers to the Waterway "Iron Might" circulation pump, which is manufactured by Waterway Plastics.
This specific pump is widely used as a standard, reliable circulation pump in various hot tubs and spa systems across different brands.
Manufacturers That Have Used the Waterway Iron Might Pump
Waterway provides these pumps as original equipment manufacturer (OEM) parts to a large number of spa and hot tub brands globally. Because it is an industry-standard component, it can be found in products from many companies.
Specific brands that commonly use or are compatible with this pump include:
Gecko Alliance (as part of their system integration)
Waterway (their own branded spas and systems)
Numerous other independent hot tub and spa manufacturers use this widely available and enduring 48-frame design pump for 24-hour water circulation in their products. The specific hot tub models that use it are extensive and vary by year and configuration.
The pump is designed for continuous 24-hour operation and is known for its durability and efficiency.
