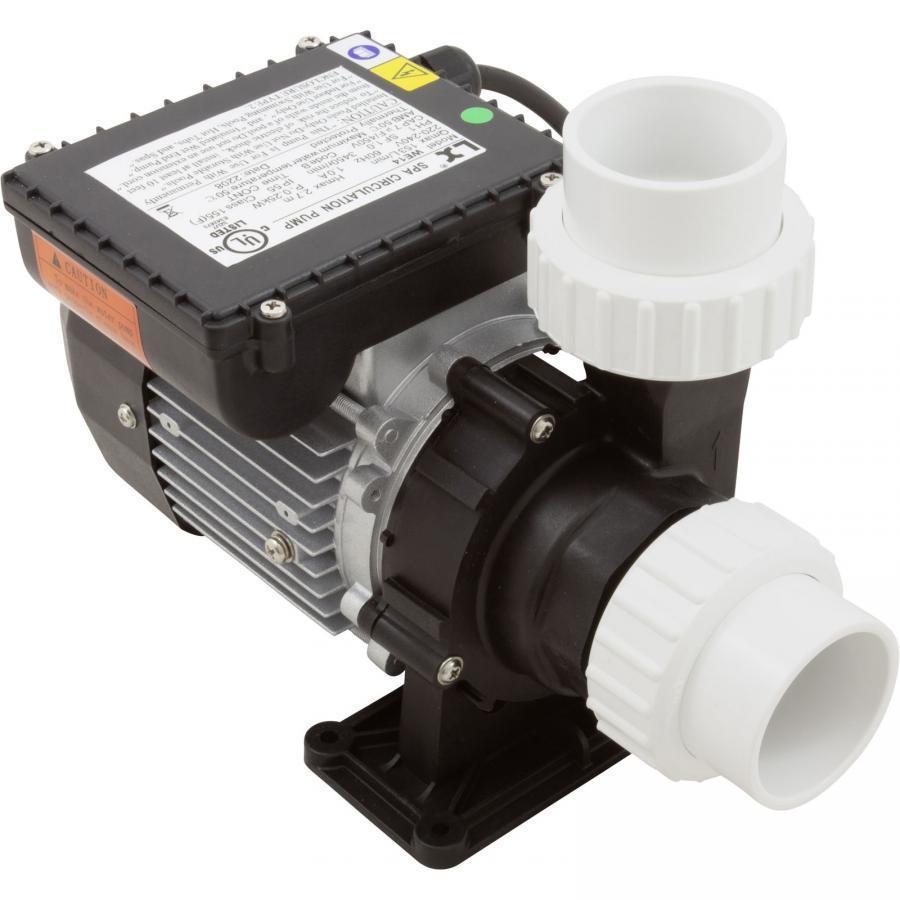

The WE14 230V Circulation Pump is a high-quality hot tub pump that operates on 220 - 240 volts.

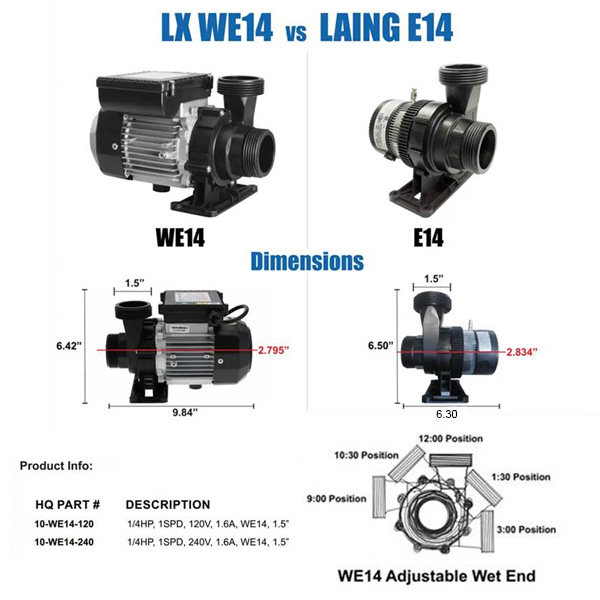

This model has the same wet end size and union threads as the Laing E14.
The pump dimensions are 9-3/4" long front to back, 6-1/2" tall, and 6-1/2" wide.
It can be used to replace the smaller Laing Thermotech E14 pump, space permitting in the hot tub.
This pump is compact and whisper quiet, producing less than 50 dB of noise.

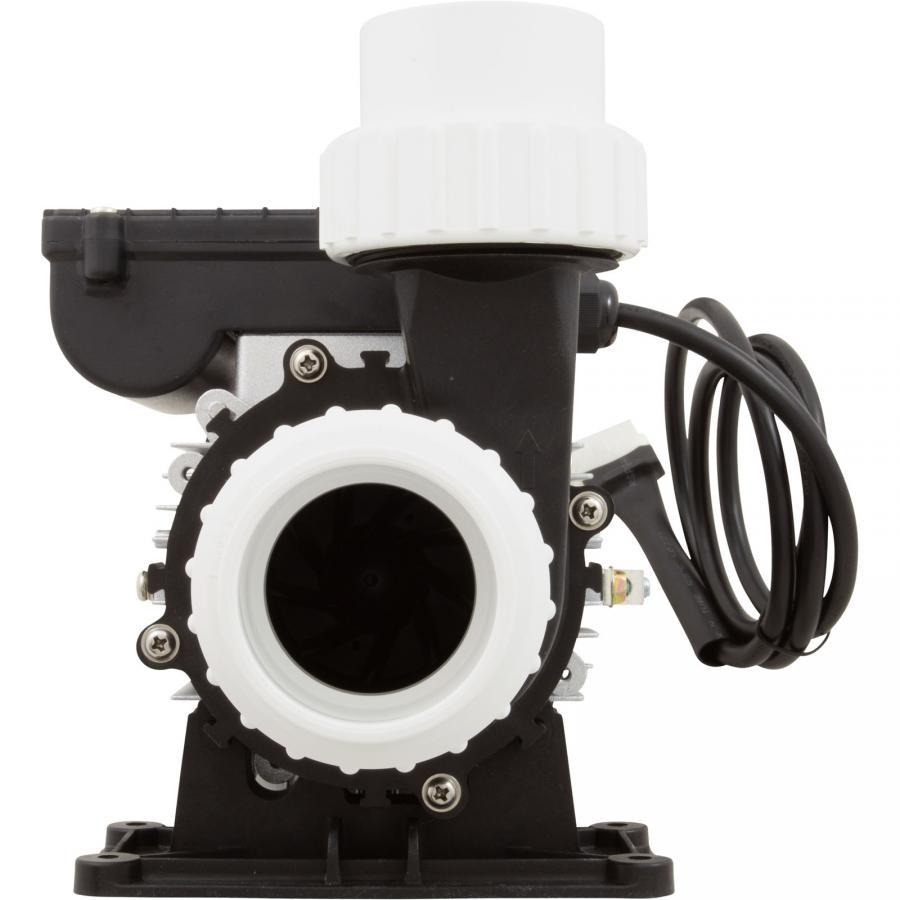

It features a built-in motor bracket for mounting in 5 different discharge angles2 and has a side discharge for maximum flow.
The WE14 model has the largest run-out flow of the E series at 36 GPM.
It has 1 ½” Male buttress connections and is powered by only 230 VAC.
Please note that after filling the spa with water and before turning on the spa, you should loosen both hoses on the WE14 pump until the water dribbles out.
This will allow any trapped air to escape and prevent a “dry startup.”

| Accessory Pump Type |
Circulation |
| Manufacturer |
Lingxiao-Pump |
| Pump Model |
WE14 |
| Speed |
1 Speed (1-Spd) |
| Motor Voltage |
230v |
| Suction Style |
Center |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Pipe Size |
1-1/2" |
| Discharge Style |
Side |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Pipe Size |
1-1/2" |
| Motor Amperage/Wattage |
1.0A |
