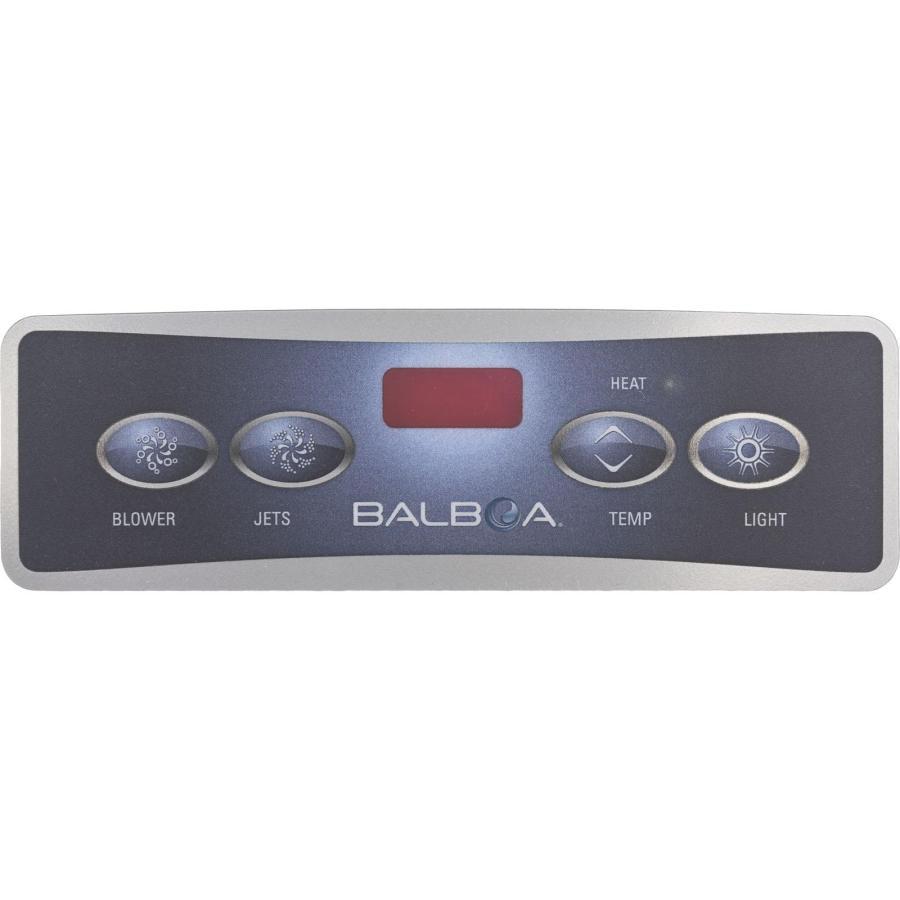

The Balboa 10671 (also listed as 80-10671-K) is a 4-button self-adhesive overlay designed for the VL403 (Lite Duplex) series topside control panel.
It is primarily used for entry-level or compact hot tubs that feature a single jet pump and an air blower.
Compatible Topside Control Panel
This overlay fits the rectangular Balboa VL403 (Lite Duplex Digital) series topside panel.
Dimensions: Approximately 6-1/4" to 6-3/8" wide by 2-1/4" high.
Topside Model Number: Specifically engineered for Balboa panel #54130 and also compatible with #51676.
Display: Designed for panels with an LED display.
Button Configuration
The 10671 overlay features a 4-button layout organized to control:
Blower
Jets
Temp (Temperature adjustment)
Light
Spa Manufacturers Using This Part
Because it is a standardized component for Lite Duplex systems, it is utilized by several manufacturers for their single-pump plus blower configurations:
Jacuzzi / Bullfrog / Tiger River: Compatible with various series under these brand umbrellas.
Cal Spas: Frequently listed as a standard component for their portable models.
Master Spas: Used in some legacy and entry-tier models requiring blower control.
Coast Spas: Incorporates these components in their multi-feature compact lines.
Marquis Spas: Utilizes Balboa equipment for advanced functionality and reliability.
LifeSpring Spas: Often uses this control panel configuration.
