| Topside Type |
Electronic |
| Manufacturer |
Balboa Water Group |
| Model |
Duplex Digital |
| # of Buttons |
4 |
| Part Type |
Overlay |

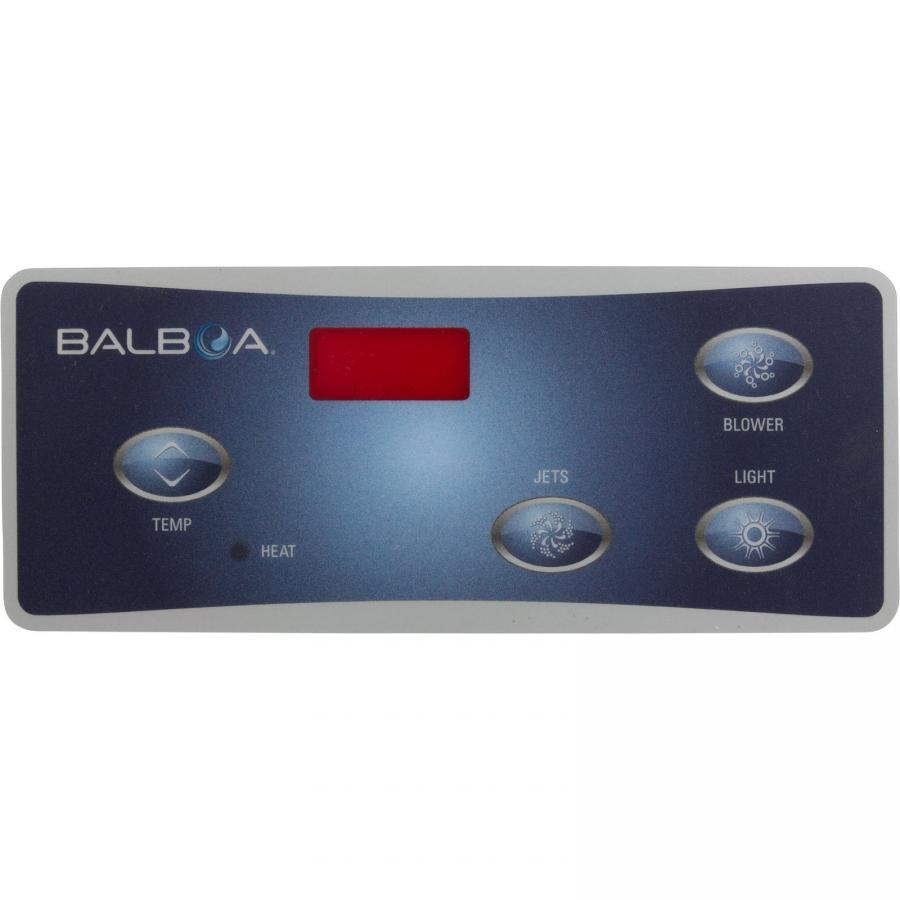

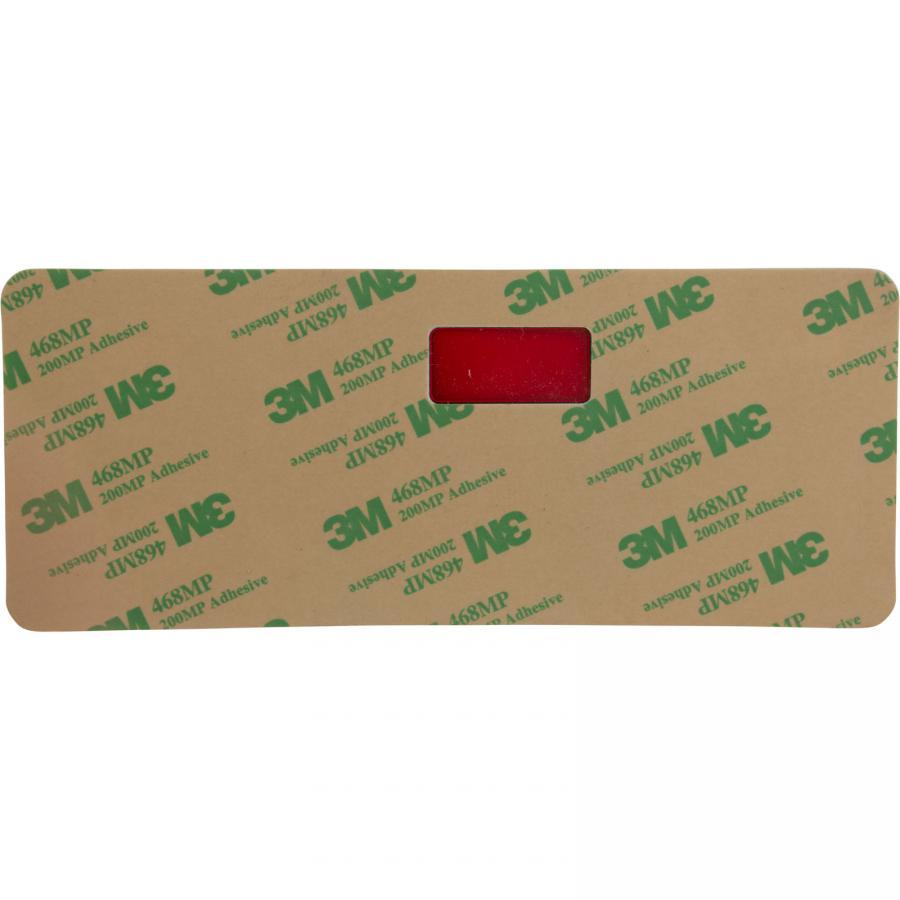

The Balboa 10307 is a 4-button self-adhesive overlay designed for the VL404 series (Duplex Digital) topside control panel.
It is primarily used for spa systems that include a single jet pump and an air blower.
Compatible Topside Control Panel
- Model: Balboa VL404 / Duplex Digital LED.
- Topside Model Numbers: Fits panels #51223 and #54145.
- Shape: Rectangular.
- Dimensions: Approximately 7-3/8" to 7-1/2" wide and 3-1/4" to 3-1/2" high.
Button Configuration
The 10307 overlay features a 4-button layout typically organized as follows:
- Set/Temp (including a spot for a heat indicator light).
- Jets.
- Blower.
- Light.
Spa Manufacturers Using This Part
Because it is a standardized Balboa part for Duplex Digital systems, it is used by several manufacturers, including:
- Leisure Bay Spas: Specifically used in the Celebrity and Elite series.
- Cal Spas: Frequently listed as a standard component for their legacy portable models.
- Bullfrog Spas: Known to use top-tier Balboa electronics across many of their series.
- Other Brands: Often found in models from Master Spas, Marquis Spas, and Coast Spas that utilize the VL series.
