| Speed |
1 Speed (1-Spd) |
| Motor Voltage |
115v |
| Suction Style |
Bottom |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Pipe Size |
1-1/2" |
| Discharge Style |
Center |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Pipe Size |
1-1/2" |
| Horsepower |
0.5hp |
| Motor Amperage/Wattage |
5.5A |

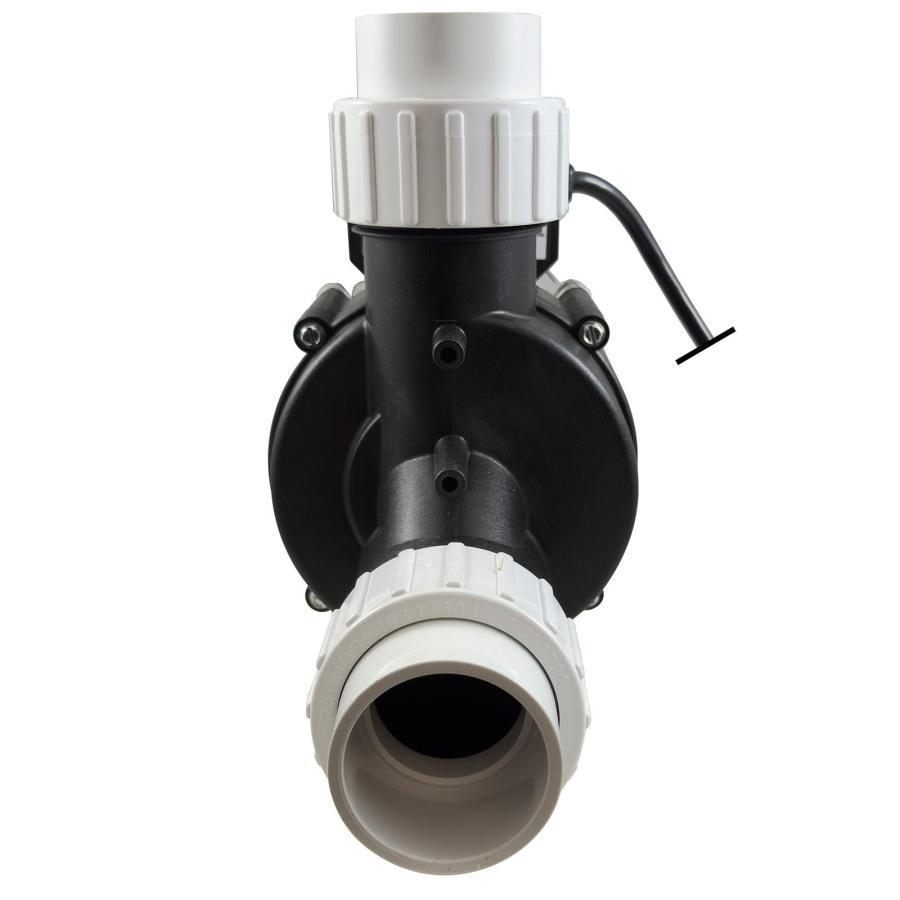

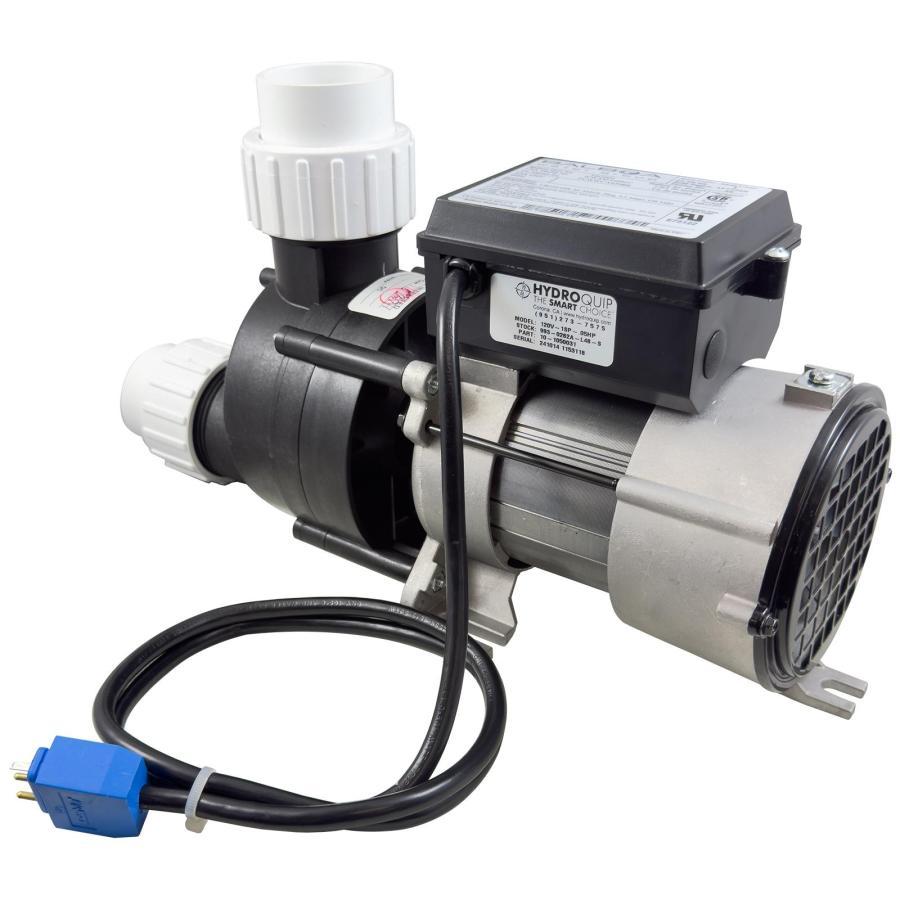

The part number 993-0262A-L48-S refers to a
Hydro-Quip Baptismal/Circulation Pump (BES-6000 series), which is a 0.5 HP, 115V-120V single-speed pump featuring a 48-inch molded J&J style cord.
While it is commonly used in baptismal pool systems, it is also utilized by manufacturers as a high-reliability circulation pump for various leisure water applications.
Primary Manufacturers and Brands
Because Hydro-Quip acts as an OEM (Original Equipment Manufacturer) and provides "private label custom equipment," this pump is often found in systems from the following manufacturers:
Hydro-Quip: The original equipment manufacturer for the BES-6000 series.
- Waterway Plastics: Often cross-branded or identified as a Waterway Genesis variant (CD Self-Drain) due to the shared design of the wet end components.
- Balboa Water Group: Listed as a distributor and manufacturer for several variants of this pump line, including those used in baptismal and specialty circulation systems.
- Marquis Spas: Hydro-Quip is a recognized pump provider for Marquis Spas, and similar circulation pump configurations are used in their high-end models.
- Caldera Spas, Master Spas, and Freeflow Spas: Retailers specializing in these brands often stock this part as a compatible replacement for their circulation and filtration systems.
Specifications and Compatibility
Performance: 0.5 HP, 120V, single-speed, drawing approximately 5.5 Amps.
- Connections: 1-1/2" MBT (Male Buttress Thread) intake and discharge ports.
- Cord Style: Features a 48-inch molded cord with a J&J style mini-connector.
- Common Interchangeable Part Numbers:
- 993-0265-L48
- 10-0265
- 321FF10-0101
