| Motor Voltage |
115v |
| Speed |
2 Speed (2-Spd) |
| Motor Amperage/Wattage |
10.8A/2.8A |
| Horsepower |
1.0hp |
| Manufacturer |
AquaFlo/Gecko |
| Pump Model |
XP2 |
| Suction Pipe Size |
2" |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Style |
Center |
| Discharge Pipe Size |
2" |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Style |
Side |
| Motor Frame |
48 Frame Thru-Bolt |
| Drain Plug Location |
4,6,9 o`clock |

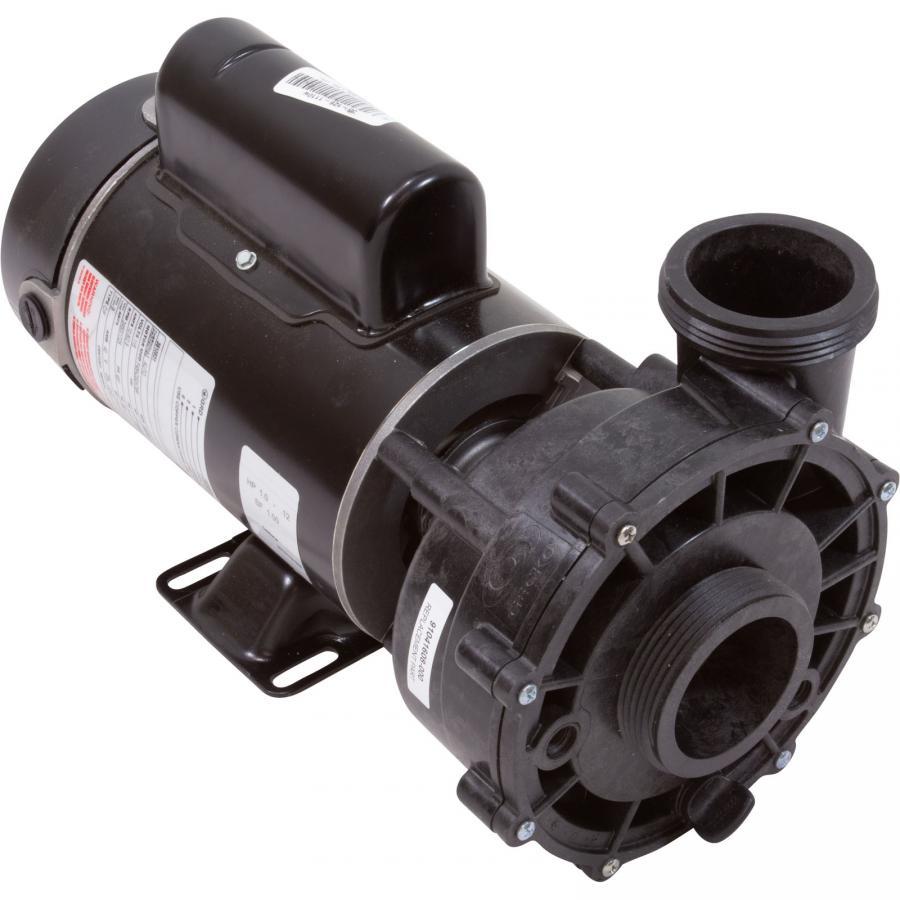

- Model: Aqua-Flo XP2
- Horsepower: 1.0 HP continuous
- Break horsepower: 1.5 HP
- Voltage: 115V
- Speed: 2-speed
- Flow rate: 125 GPM (high speed) / 62.5 GPM (low speed)
- Discharge size: 2"
- Suction size: 2"
- Drain plug location: 4, 6, or 9 o'clock
- Pump to motor foot types: 9
- Suction style: Center suction
- Discharge style: Side discharge
- Warranty: 2 years
This pump is a good choice for small to medium-sized spas with up to 16 jets. It is a two-speed pump, so you can adjust the flow rate and pressure to your needs. It is also energy efficient, with a low operating cost.
Here are some additional details about the pump:
- The motor is a 48 frame induction motor with a capacitor start.
- The pump is made of cast iron and stainless steel, which makes it durable and corrosion resistant.
- The pump comes with a set of unions, but you will need to purchase hoses separately.
I hope this helps!
Here are some of the key features of the 34-402-2410W spa pump:
- 2-speed operation for efficient water circulation
- Cast iron and stainless steel construction for durability
- Capacitor start motor for quiet operation
- UL, CUL, and ETL certified
If you are looking for a reliable and efficient spa pump, the 34-402-2410W is a good option to consider.
Here are some of the differences between the 34-402-2410W spa pump and the 48WUA1001C-II spa pump:
- The 34-402-2410W has a lower horsepower (1.0 HP vs 1.5 HP).
- The 34-402-2410W has a lower flow rate (125 GPM vs 122 GPM).
- The 34-402-2410W has a lower voltage (115V vs 230V).
- The 34-402-2410W has a different drain plug location (4, 6, or 9 o'clock vs 12 o'clock).
Ultimately, the best spa pump for you will depend on your specific needs and requirements. If you are not sure which pump is right for you, I recommend consulting with a qualified spa technician.
