| Motor Voltage |
230v |
| Speed |
2 Speed (2-Spd) |
| Motor Amperage/Wattage |
12.0A/4.4A |
| Horsepower |
4.0hp |
| Manufacturer |
Lingxiao (LX) Pump |
| Pump Model |
56WUA |

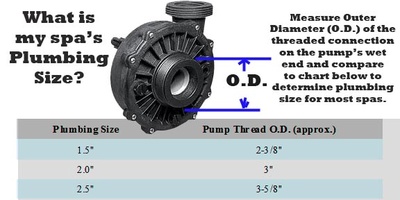

| Suction Pipe Size |
2" |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Style |
Center |
| Discharge Pipe Size |
2" |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Style |
Side |
| Motor Frame |
56 Frame Thru-Bolt |
| Drain Plug Location |
3,6,9 o`clock |

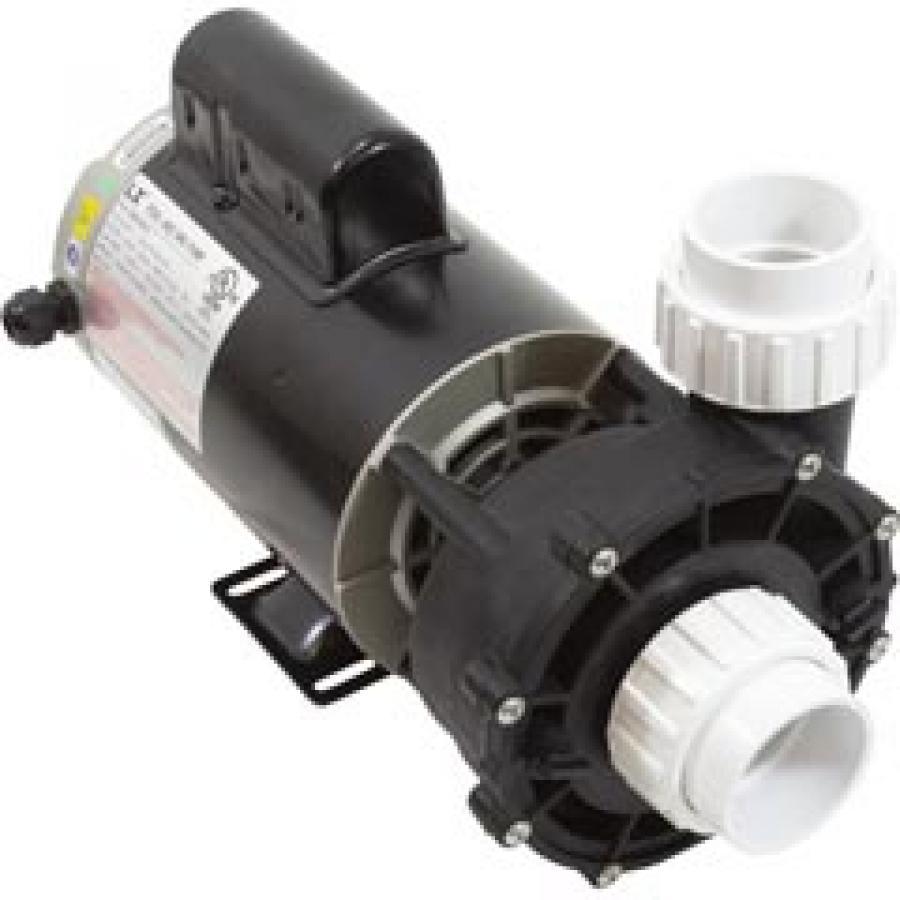

- Model: 56WUA400-II
- Horsepower: 4 HP continuous
- Break horsepower: 6 HP
- Voltage: 230V
- Speed: 2-speed
- Flow rate: 275 GPM (high speed) / 137.5 GPM (low speed)
- Discharge size: 2"
- Suction size: 2"
- Drain plug location: 4, 6, 9 o'clock
- Pump to motor foot types: 56
- Suction style: Center suction
- Discharge style: Side discharge
- Warranty: 2 years
This pump is a good choice for large spas with up to 32 jets. It is a two-speed pump, so you can adjust the flow rate and pressure to your needs. It is also energy efficient, with a low operating cost.
Here are some additional details about the pump:
- The motor is a 56 frame induction motor with a capacitor start.
- The pump is made of cast iron and stainless steel, which makes it durable and corrosion resistant.
- The pump comes with a set of unions, but you will need to purchase hoses separately.
I hope this helps!
Here are some of the key features of the 56WUA400-II spa pump:
- 2-speed operation for efficient water circulation
- Cast iron and stainless steel construction for durability
- Capacitor start motor for quiet operation
- Two sets of 2" unions included
- UL, CUL, and ETL certified
If you are looking for a reliable and efficient spa pump for a large spa, the 56WUA400-II is a good option to consider.
Can replace MTRAOS-193767 MTRAOS-187563, 7-187563-02. R63MWENA-4727, TT505
