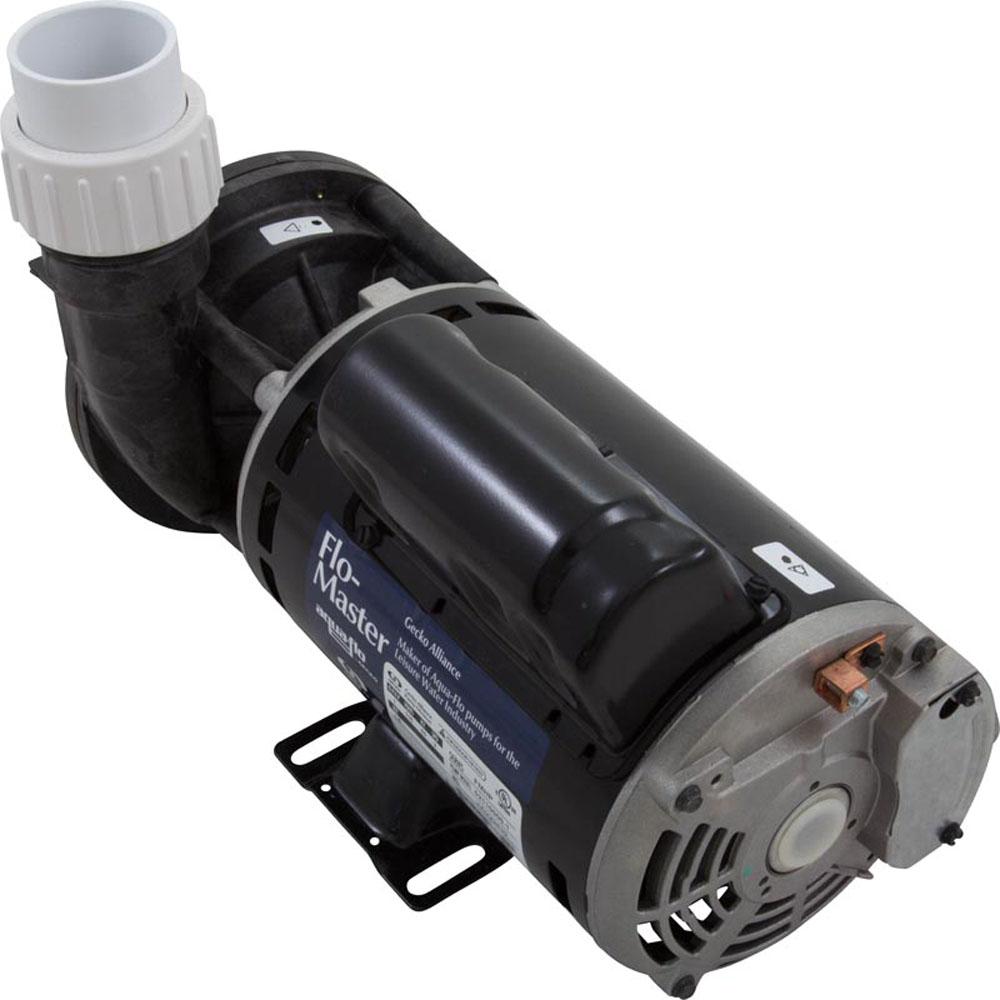

Pump, Aqua Flo FMHP, 1.0ohp/1.5thp, 115v, 2-Spd, 48fr, 1-1/2", OEM

Pump, Aqua Flo FMHP, 1.0ohp/1.5thp, 115v, 2-Spd, 48fr, 1-1/2", OEM

Be the first to review this product

Product ID: 02110000-1010 021100001010

Weight: 35.00 lbs

$463.49
~~$514.99~~

BUY MORE - SAVE MORE DISCOUNT AT CHECK OUT

SHIPPING COST DISCOUNT SEEN IN CART AND APPLIED AT CHECKOUT.

What Brand is Replacement for?

Term and Conditions

Yes, I reviewed, understand, and agree to the terms and conditions

Add to wish list E-mail to a friend

Overview

Aqua-Flo by Gecko's Flo-Master HP pumps are designed with a unique, high-performance impeller providing flow rates that exceed all tested competition. Ideal for larger, multi-jetted tubs or similar applications requiring greater output. Each pump is engineered with careful attention to detail and accuracy. Spa Pump Features: Long life shaft seal Built-in overload protection Reinforced engineered plastic construction Adapts to hair and lint traps for self priming aplications Stainless steel volute fasteners

Complete Pump Type	Portable Spa Pump
Speed	2 Speed (2-Spd)
Motor Voltage	115v
Drain Plug Location	6,9 o`clock
Pump to Motor Foot Types	15
Suction Style	Center
Suction Connection (Physical Dimension)	1-7/8" id, 2-7/16" od
Suction Connection Type	Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size	1-1/2"
Discharge Style	Side
Discharge Connection (Physical Dimension)	1-7/8" id, 2-7/16" od
Discharge Connection Type	Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size	1-1/2"

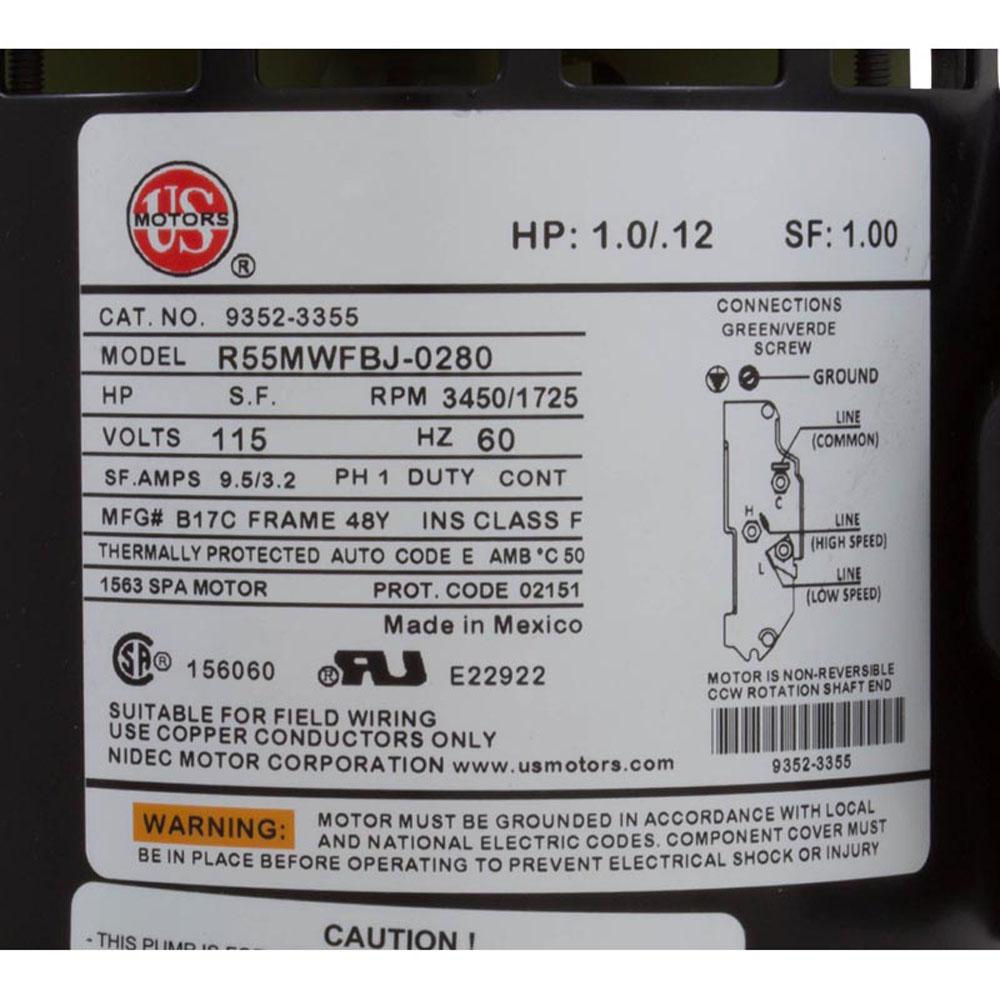

Horsepower	1.0hp
Motor Frame	48 Frame Thru-Bolt
Motor Amperage/Wattage	10.3A/3.8A
Manufacturer	AquaFlo/Gecko
Pump Model	Flo-Master FMHP
Manufacturer Impeller Number	91693601
Volute Fastening Type	8 Screws
Volute/Sealplate Number	92770501

Part number 02110000-1010 is an OEM Aqua-Flo Flo-Master FMHP series spa pump manufactured by Gecko Alliance.

This is a 1.0 HP, 115V, 2-speed pump with a 48-frame motor and side discharge.

This specific pump model has been used by several hot tub manufacturers, primarily in 110V/115V "Plug and Play" or smaller portable spa configurations:

Coleman Spas: Specifically used in models manufactured between 1996 and 2000, such as the Model 10 and Model 010.
Watkins Wellness (Hot Spring Spas): This pump is frequently used as a direct replacement for the Wavemaster 3000 pump found in various Hot Spring and Tiger River spa models.
Viking Spas often incorporates these compact Aqua-Flo pumps in their smaller, 115V-rated spa models.
Gecko Alliance / Spa Builders: As a standard component in many Gecko-designed spa control systems and pump kits provided to numerous independent hot tub brands.
