Balboa Water Group
11448
11448 , 316884 , BB11448
| Manufacturer |
Balboa Water Group |
| Model |
VL403 |
| # of Buttons |
4 |
| Topside Shape |
Rectangular |
| Part Type |
Overlay |

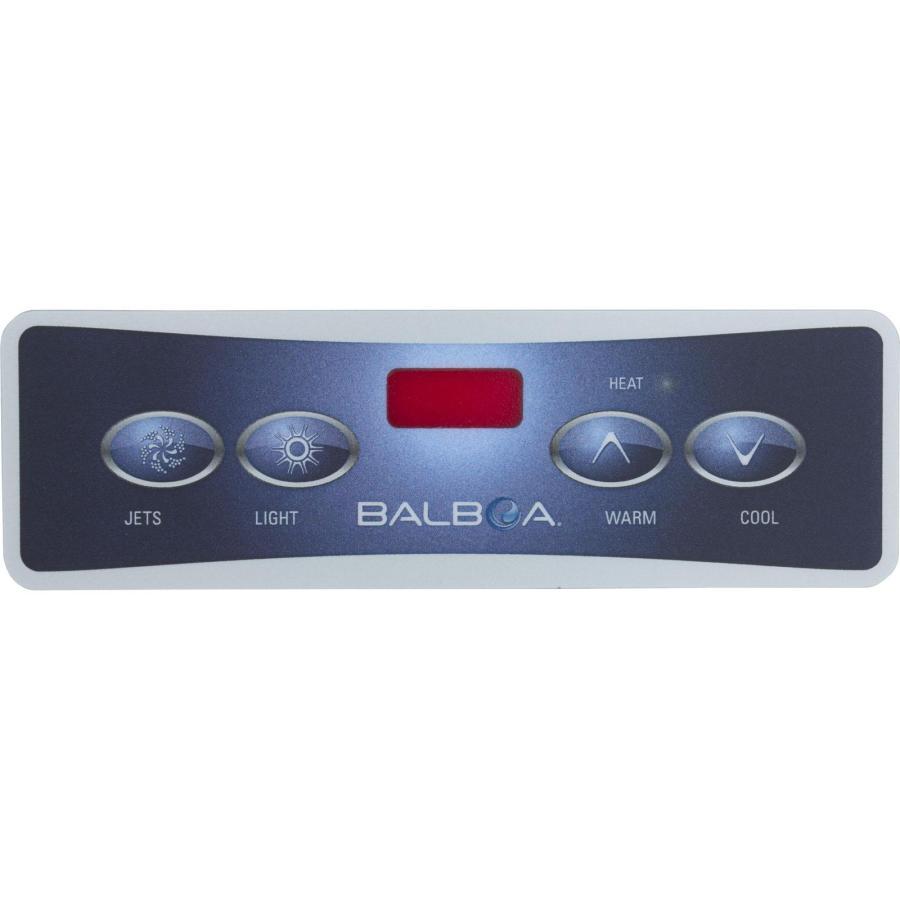

The Balboa 11448 is a 4-button self-adhesive overlay designed for the VL403 (Lite Duplex Digital) series topside control panel.
It is a standard component for compact, entry-level hot tubs featuring a single jet pump and a light.
Compatible Topside Control Panel
This overlay fits the rectangular Balboa VL403 (Lite Duplex) topside series.
- Dimensions: Approximately 6.3" x 2.2".
- Panel Part Numbers: Specifically engineered for the #54130 topside control panel.
- Alternative Identification: Also known as the E4 Jets Lite overlay.
Button Configuration
The 11448 overlay features a 4-button layout. Note that the temperature button order may vary from standard overlays:
- Labels: Jets, Light, Cool, Warm.
- Freeflow Spas Variant: Labeled as Jets, Light, Down, Up.
Spa Manufacturers Using This Part
Because it is a standardized Balboa component, it is utilized by several manufacturers for their single-pump configurations:
- Freeflow Spas: Uses this exact layout on their #54130 control panels.
- Cal Spas: Frequently incorporates these standard digital panels.
- Other Brands: Found in models from China Royal Spa, Essential Hot Tubs, Tuff Spa, and Quality Spas.
