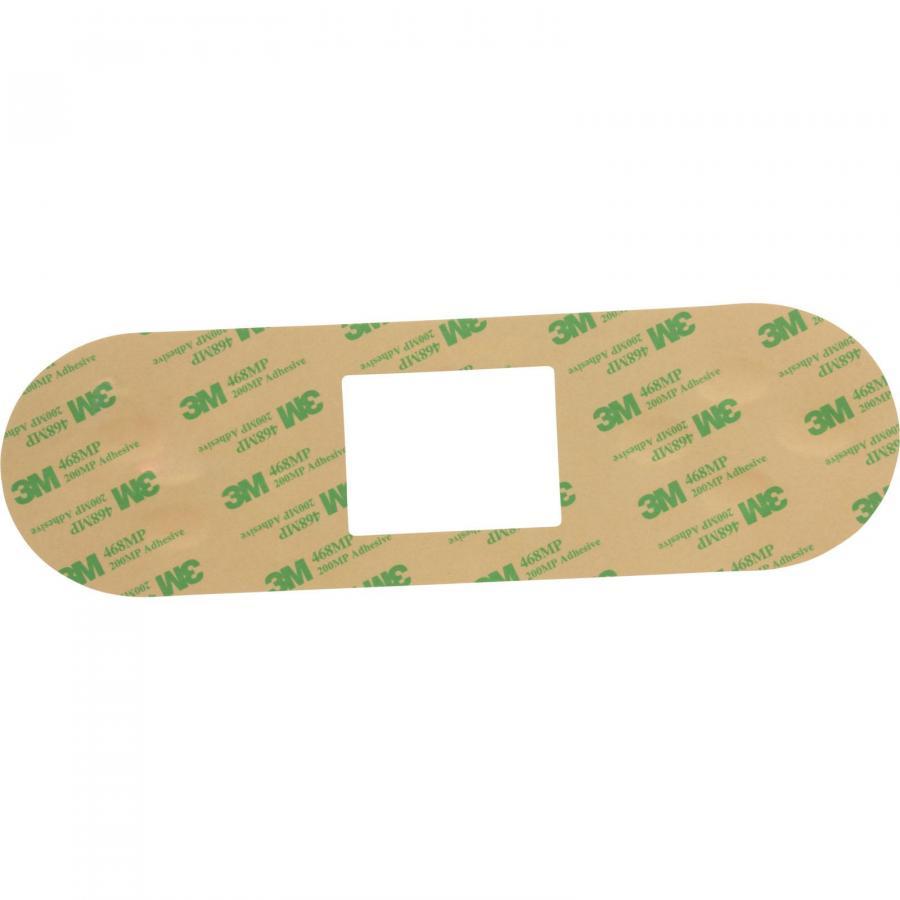

The Balboa 12512 is a self-adhesive, 9-button overlay designed for the TP800 series topside control panel.
It is used in advanced spa systems with dual-pump or triple-pump configurations and auxiliary functions.
Compatible Topside Control Panel
- Model: Balboa TP800 Digital series.
- Topside Model Number: Specifically fits the 57241 and 50261 topside panels.
- Dimensions: Approximately 9.5" to 10" wide by 2.8" to 3.5" high.
- Plug Type: The corresponding panel typically uses a 4-pin Molex style connector.
Button Configuration

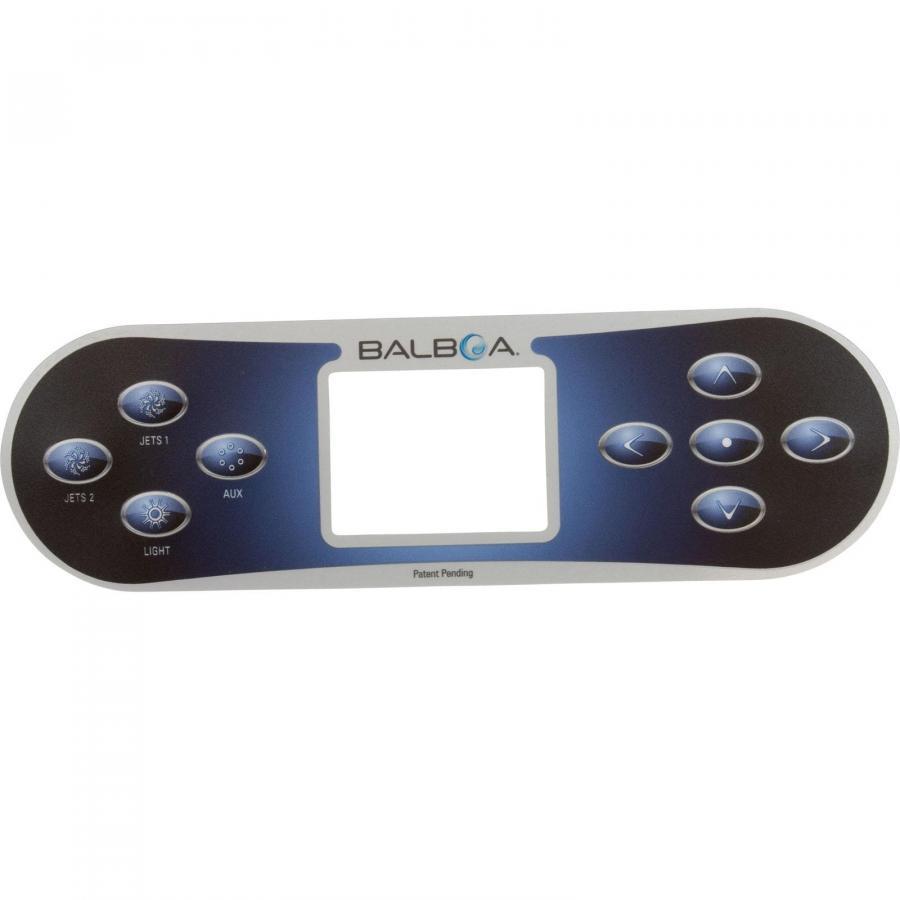

The 12512 overlay features a 9-button layout organized around a central screen cutout:
- Left of Screen (4 buttons): Jets 1, Jets 2, Aux, and Light.
- Right of Screen (5 buttons): Navigation keys including Up, Down, Left, Right, and a central Select button.
Spa Manufacturers Using This Part
Because the TP800 is a premium Balboa component for BP series control systems, it is used by several major spa brands:
- Maax Spas / American Whirlpool: Common in their high-performance models.
- Elite Spas: Used in models requiring advanced pump management.
- Vita Spas: Incorporates these components for precise digital control.
- Bullfrog Spas: Known for utilizing top-of-the-line Balboa electronics across various series.
- Platinum Spas / Superior Wellness: Uses premium Balboa systems as their standard electronics.
- Saratoga Spas: Features compatible Balboa topside controls and overlays.
