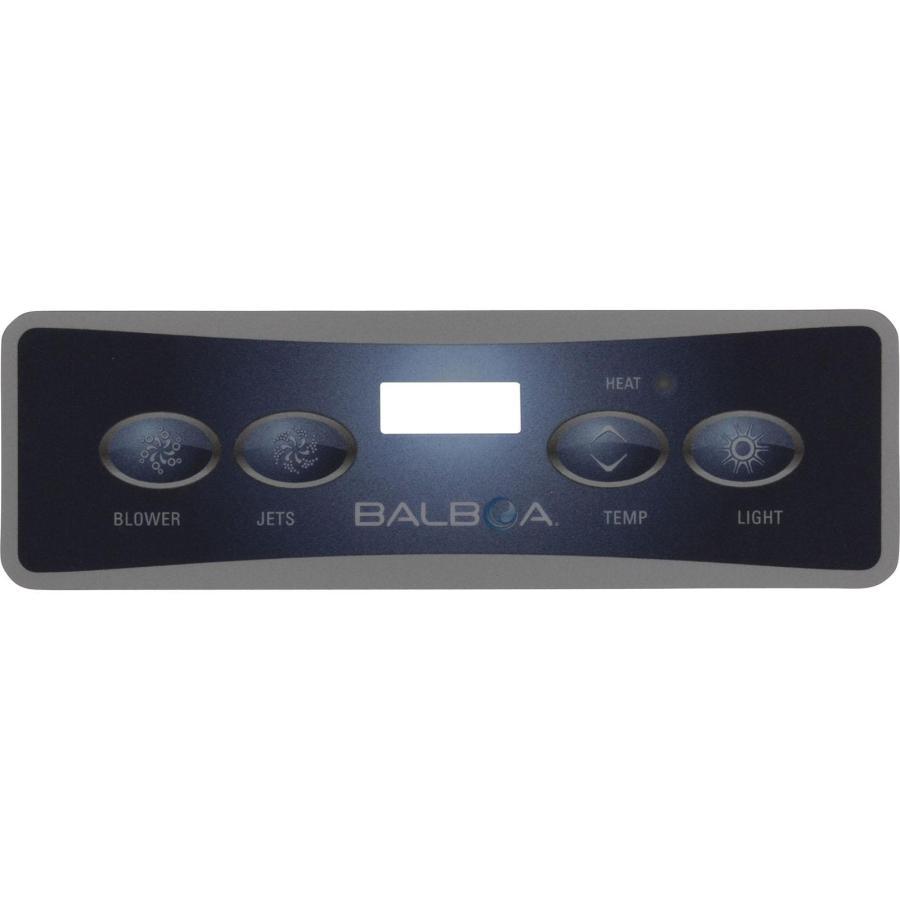

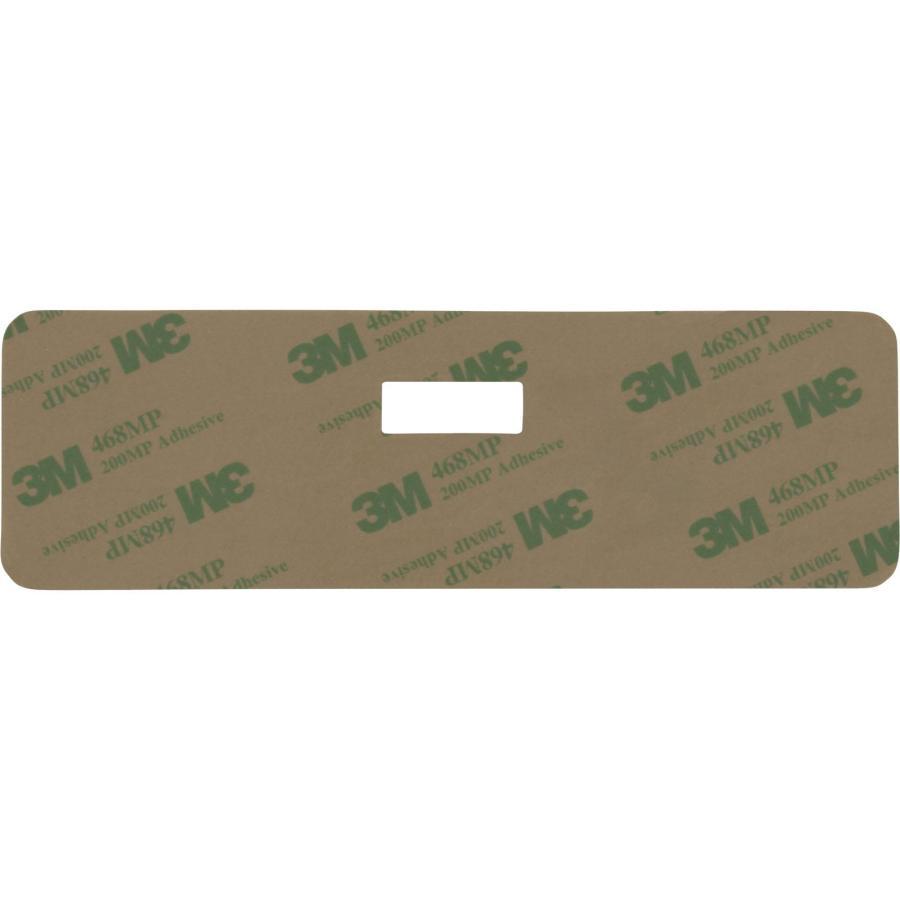

The Balboa 10669 is a 4-button self-adhesive overlay designed for the VL401 (Lite Duplex) series topside control panel.
It is typically used for spa systems that include a single jet pump, an air blower, and a light.
Compatible Topside Control Panel
Topside Model: VL401 Series (Lite Duplex Digital).
Associated Panel Part Numbers: Specifically fits Balboa panel #54094, G8241, and G8243.
Display Type: Designed for panels with an LCD screen.
Dimensions: Rectangular shape measuring approximately 6.3" x 2.2" (faceplate).
Button Configuration
The 10669 overlay features a 4-button layout arranged around a center display cutout:
Blower
Jets
Temp (Temperature adjustment)
Light
Spa Manufacturers Using This Part
Because it is a standardized component for the VL401 series, it is utilized by several manufacturers for their "Value" or single-pump plus blower configurations:
Eco Spas: Specifically designed for use in Eco 401 models.
Bullfrog Spas: Known to use premium Balboa electronics across many series.
H2O Spas, Platinum Spas, and Superior Spas: These brands consistently utilize Balboa control systems.
Other Brands: Frequently found in various generic hot tubs and spas that use Balboa Duplex systems for reliable digital control.
