| Manufacturer |
Balboa Water Group |
| Model |
TP500 |
| # of Buttons |
6 |
| Topside Shape |
Rectangular |
| Part Type |
Overlay |

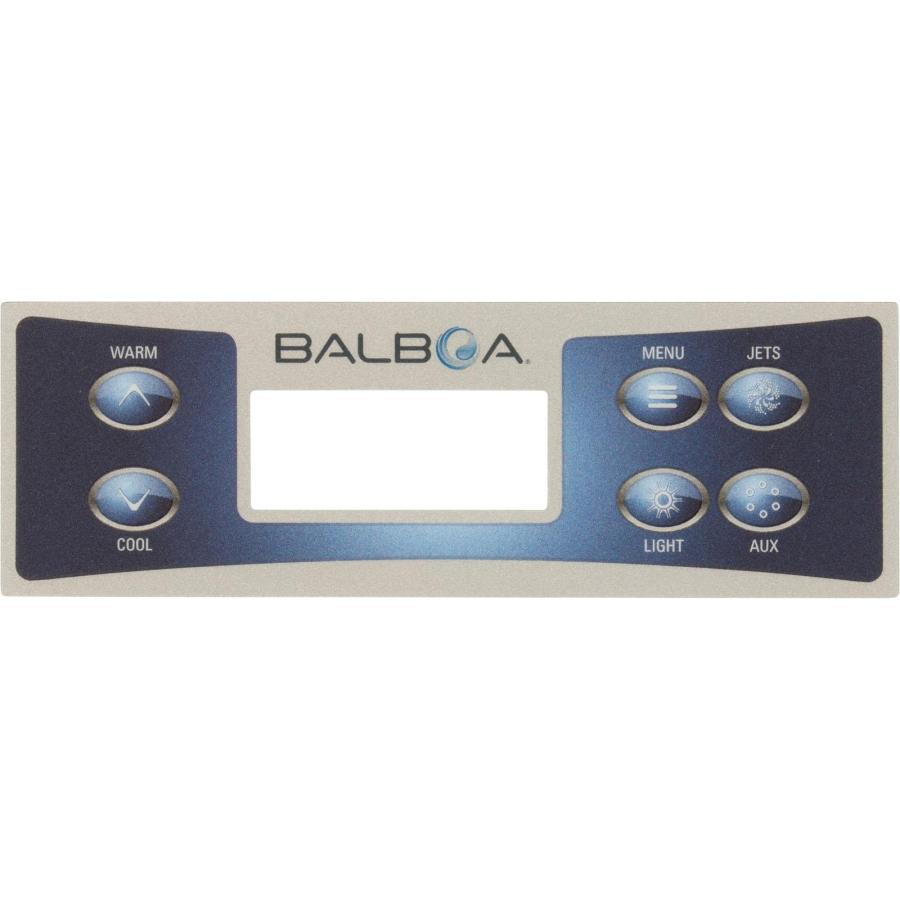

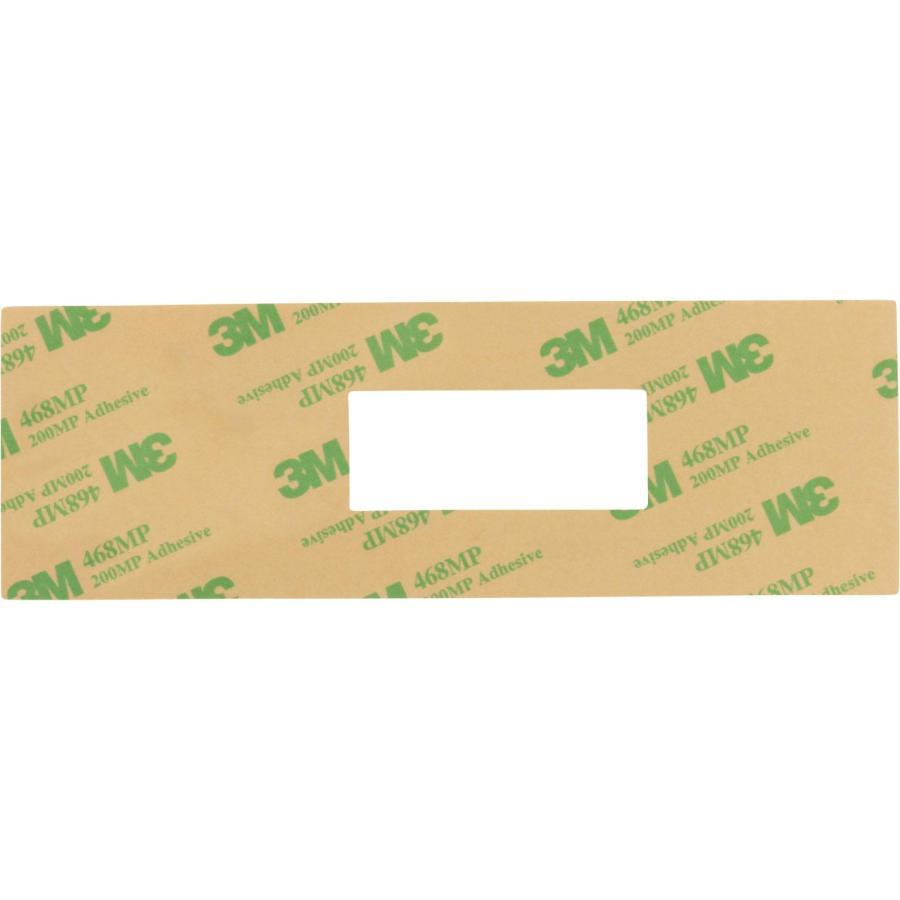

The Balboa 17183 is a 6-button self-adhesive overlay specifically designed for the TP500 series topside control panel.
It is widely used in systems that require control over two pumps or auxiliary equipment.
Compatible Topside Control Panel
- Model: Balboa TP500 (and TP500S).
- Associated Panel Part Numbers: Often paired with topside panel #57238.
- Dimensions: Approximately 6-3/8" x 2-1/4" (rectangular shape).
Button Configuration
The 17183 overlay features a 6-button layout typically organized as follows:
- Left Side: Warm, Cool (Temperature adjustment).
- Right Side: Menu, Jets, Light, Aux.
Spa Manufacturers Using This Part
Because it is a standardized component for the Balboa BP series spa packs, it is found in many popular brands:
- Cal Spas: Frequently listed as a standard component for their models.
- Master Spas: Used in various models, particularly those featuring BP control systems.
- Platinum Spas / Superior Wellness: Uses premium Balboa equipment across current lines.
- Coast Spas: Incorporates these standard panels in their portable spa lines.
- Marquis Spas: Known for using Balboa control systems for advanced digital operation.
- Bullfrog Spas: Uses top-of-the-line Balboa electronics across many of their series.
