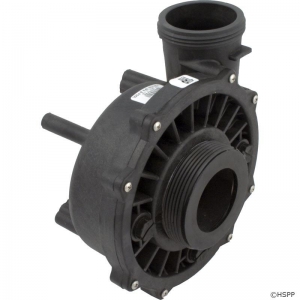

Wet End, WW Executive 1.0hp 2-1/2"mbt x 2"mbt 56fr
Click to enlarge
Sale Price: $80.00
Compared at: $100.00
You Save: $20.00
Product ID : 310-1460
Weight: 3.00 lbs
E-mail to a friend | Add To Wish List

Overview

Waterway Executive Wet End

Side discharge, 2-1/2"mbt suction x 2"mbt discharge, 56 frame wet end for the Waterway Executive pump. This wet end is used with a 1.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.

Purchase

Description


Pump to Motor Foot Types 4
Motor Frame 56 Frame Thru-Bolt
Drain Plug Location 3,6,9 o`clock
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 3-11/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2-1/2"
Discharge Auxilary Port None
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.0hp
Manufacturer Waterway
Pump Model Executive
Manufacturer Impeller Number 310-4220
Volute Fastening Type 8 Screws
