Jet Diffuser, Waterway Cluster
Overview

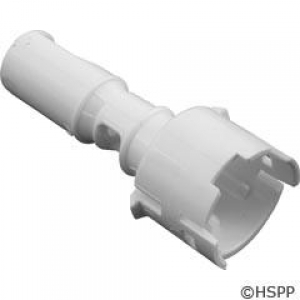

Please take care when selecting this diffuser. There are two versions that are the same except for the tab and they are not interchangeable. The style not shown was flush whereas the version shown has a tab that extends below flush. The Flush version of this diffuser is no longer available.
Waterway's Cluster Storm diffuser and Typhoon 200 diffuser Jets connection Styles are NOT interchangeable.
These jets are all part of the Waterway Cluster Storm line of spa jets. These jets are all interchangeable and share many of the same parts. These parts are sometimes numbered if you find the following numbers on your spa jets you have a jet in the Waterway Cluster Storm Jet family. Part numbers sometimes found on Waterway Cluster Storm Jets are:
- 2185100
- 2185110
- 2185140
- 2185160
These diffusers are for Waterway Spa Jets and may not fit on any other.
| Face Diameter | 2" |
| Diffuser Opening Type | 1 |
| Nozzle Diameter | 9/16" |
| Base Diameter | 1" |
| Total Length | 2-7/8" |
| Diffuser Length | 2-9/16" |
| Manufacturer | Waterway |
| Model | Cluster Storm Adjustable, Cluster Storm |
| Color | Option |
| Internal Type | Option |
| Face Style | Option |
| Jet Part Type | Internal |
Manufacturer: Waterway Plastics Manufacturer #: 218-5140 To install without damage you must - Place the jet faceplate of the jet on the table. With the internals installed in the diffuser - Square the diffuser on the faceplate Once squared and aligned with the snap-on positions. Slowly push STRAIGHT DOWN ( not at an angle) It will slide on evenly and will not break. Remember- the smaller the diameter the harder they are to get on without damage.
