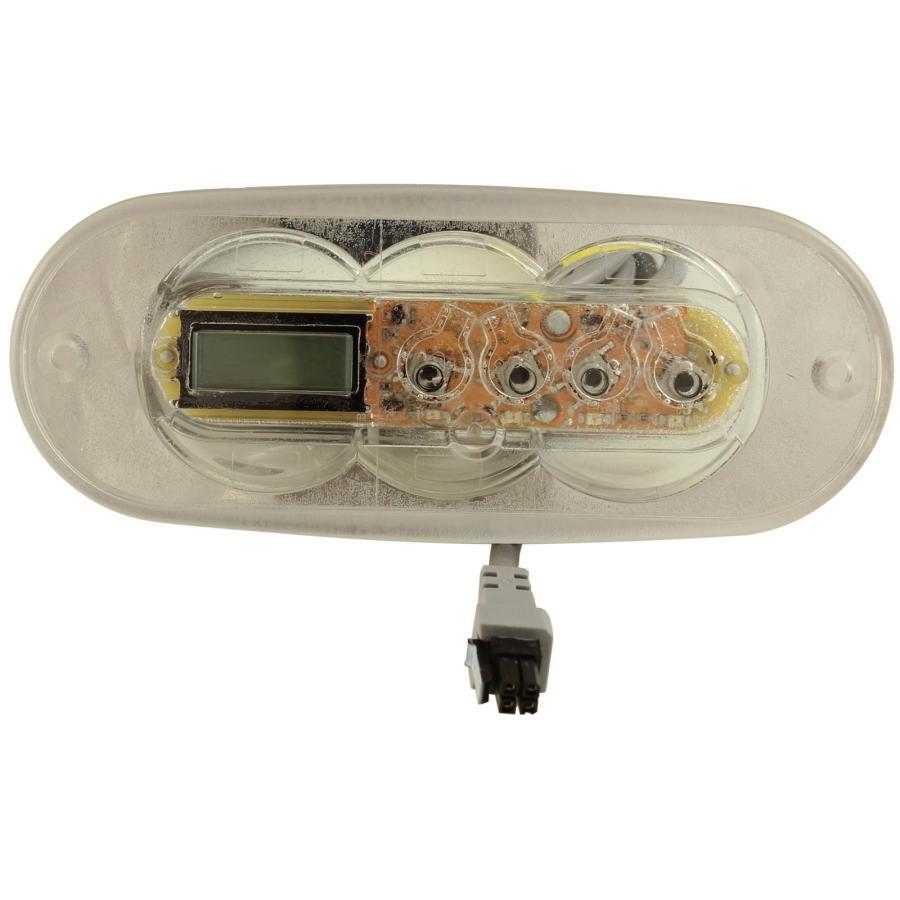

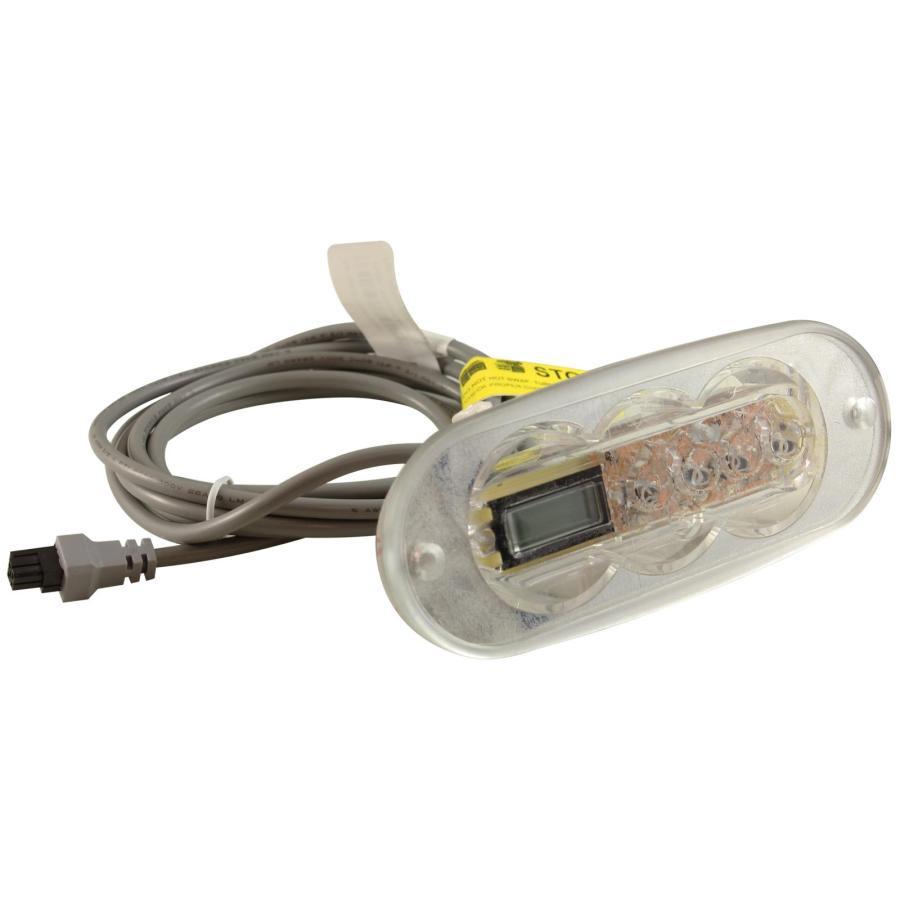

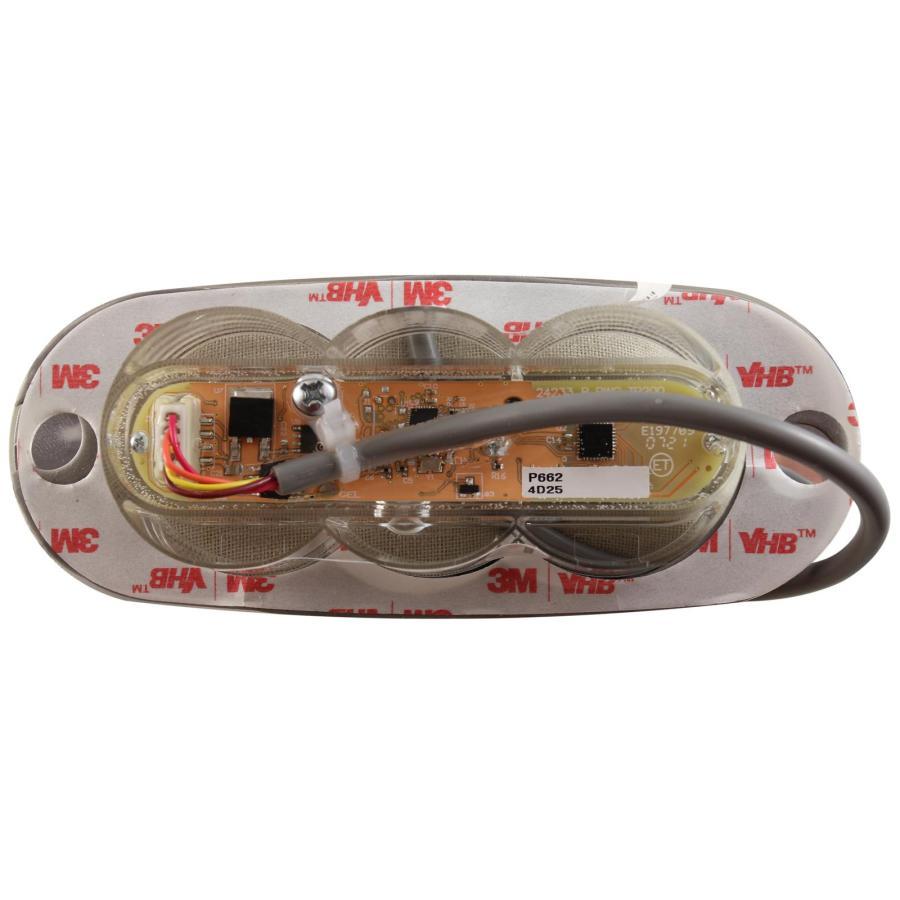

The part number G8424 refers to the Balboa TP240W Topside Control Panel, a generic component used by numerous hot tub manufacturers that incorporate Balboa's BP series control systems.
Manufacturers Using Balboa Part G8424
Because Balboa supplies standardized control systems to a large segment of the hot tub industry, this specific panel is widely used. Manufacturers that use Balboa systems and may have used the G8424 topside in various models include:
Artesian Spas
Bullfrog Spas: Bullfrog uses Balboa electronics in their spas.
Cal Spas
Coast Spas
Dominion Spas: All Dominion Spas feature Balboa control packs and topside controllers.
Master Spas
Platinum Spas / Superior Spas: These brands frequently use Balboa equipment and parts.
QCA Spas
Strong Spas
Key Specifications
Model Name:
Balboa TP240W
.
Button Configuration: 4-button (specific functions depend on the overlay and spa pack programming).
Compatibility: Designed for use with Balboa BP series control systems (e.g., BP7, BP2000).
Connection Type: Uses a 4-pin Molex connector.
Note: The overlay (the sticker with the button labels) is sold separately and is specific to the spa model's functions.
