Pump, WW E-Series, 1.5hp, 115v, 2-Spd, 48fr, 1-1/2", OEM

Pump, WW E-Series, 1.5hp, 115v, 2-Spd, 48fr, 1-1/2", OEM

Be the first to review this product

Product ID: 3420610-15 342061015

Weight: 35.00 lbs

$422.99
~~$469.99~~

BUY MORE - SAVE MORE DISCOUNT AT CHECK OUT

SHIPPING COST DISCOUNT SEEN IN CART AND APPLIED AT CHECKOUT.

What Brand is Replacement for?

Term and Conditions

Yes, I reviewed, understand, and agree to the terms and conditions

Add to wish list E-mail to a friend

Overview

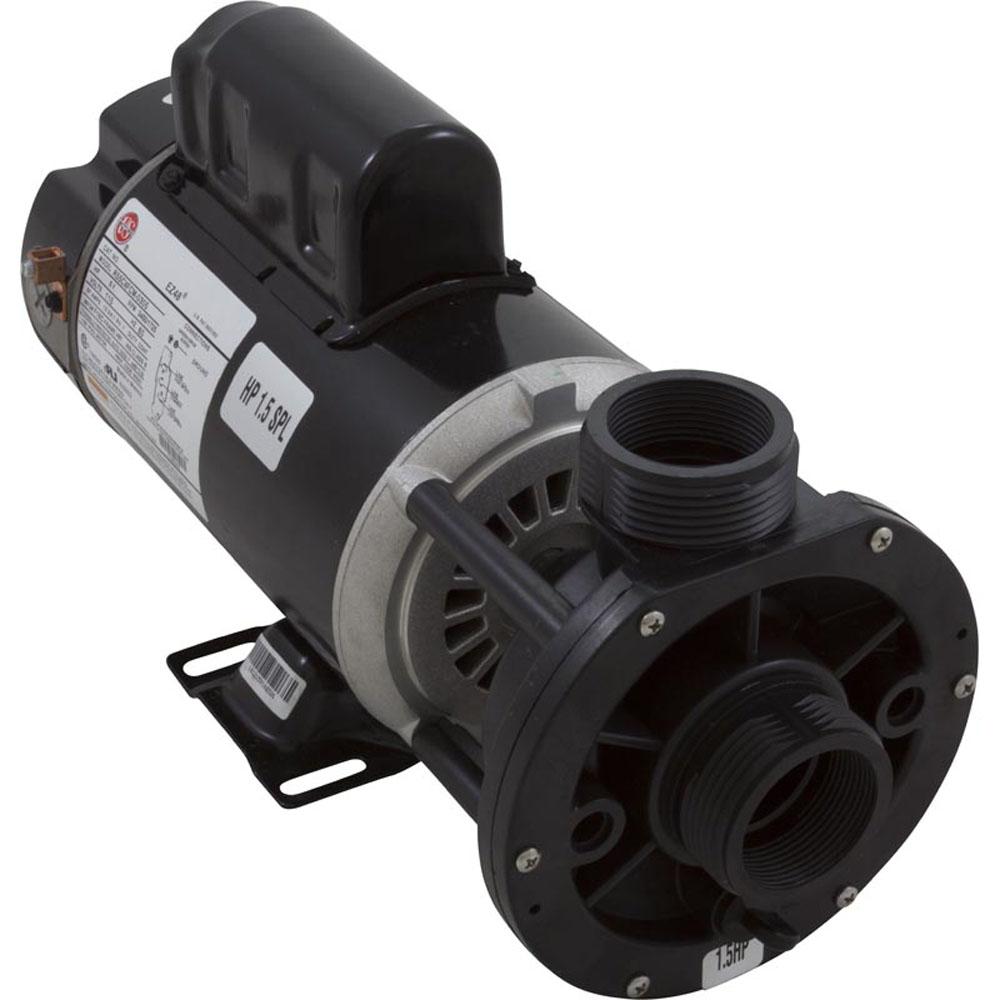

The Waterway Center Discharge 48-Frame pump is the perfect replacement for most center discharge applications. It has reliable performance. It features 1-1/2" intake and discharge and a rotatable wet end for easy installation. Spa Pump Features: Reliable center discharge performance 1-1/2" Intake and discharge Wet end can be rotated for easy installation Dimensions (H x W x L): 7.35" x 7" x 15.75" Note: This new E-Series version replaces the old style Waterway center discharge pump

Complete Pump Type	Portable Spa Pump
Speed	2 Speed (2-Spd)
Motor Voltage	115v
Drain Plug Location	3,6,9 o`clock
Pump to Motor Foot Types	15
Suction Style	Center
Suction Connection (Physical Dimension)	1-7/8" id, 2-7/16" od
Suction Connection Type	Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size	1-1/2"
Discharge Style	Center
Discharge Connection (Physical Dimension)	1-7/8" id, 2-7/16" od
Discharge Connection Type	Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size	1-1/2"
Horsepower	1.5hp

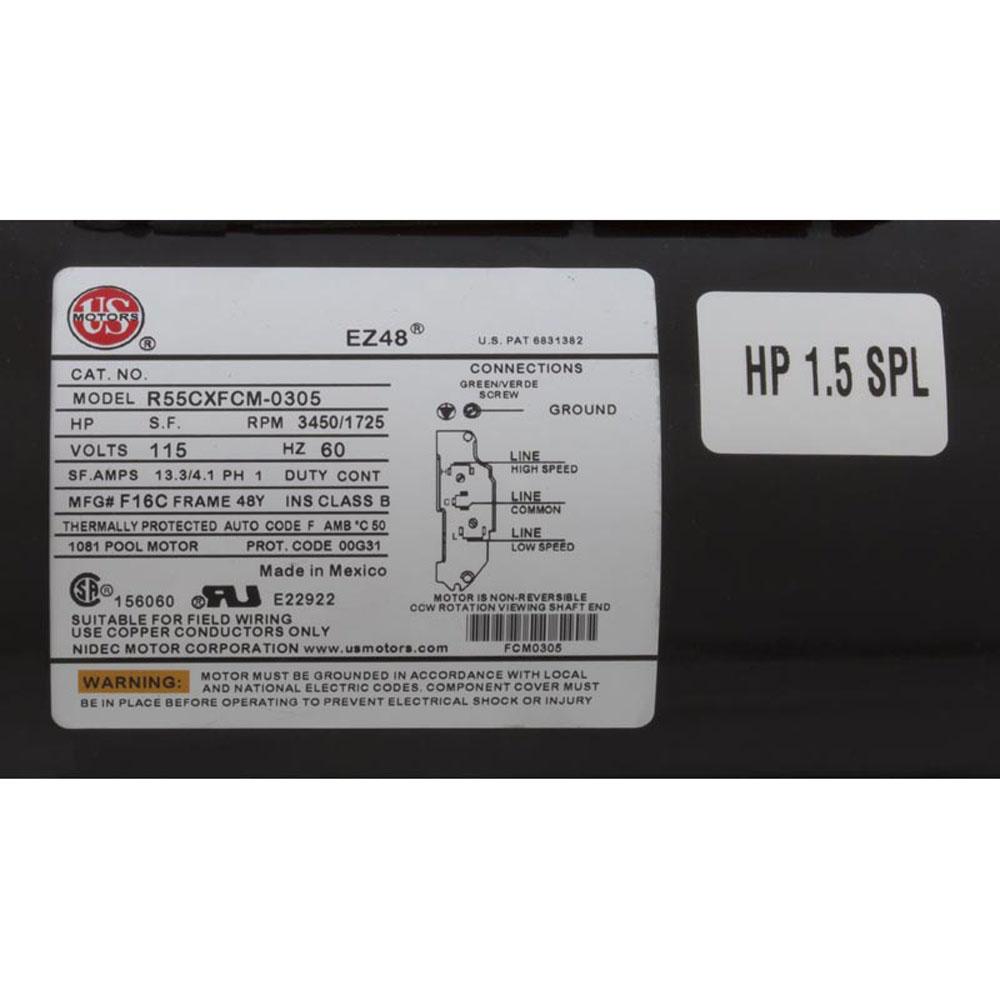

Motor Frame	48 Frame Thru-Bolt
Motor Amperage/Wattage	13.5A/4.7A
Manufacturer	Waterway
Pump Model	E-Series Center Discharge
Manufacturer Impeller Number	310-8030
Volute Fastening Type	6 Screws
Volute/Sealplate Number	315-1070

Horsepower: 1.5 HP
Voltage: 115V
Amperage: 16.4A (high speed), 4.4A (low speed)
Cycle rate: 3,450 RPM (high speed), 1,725 RPM (low speed)
Flow rate: 180 GPM (high speed), 90 GPM (low speed)
Intake and discharge: 1.5"
Discharge type: Center discharge
Motor: Permanent split capacitor (PSC)
Wet end: Viton seals
Warranty: 1 year

This pump is a good choice for small to medium-sized spas. It has two speeds, so you can choose the right speed for the task at hand. The high speed is ideal for circulation and filtration, while the low speed is better for heating and bubble therapy. The pump is also equipped with Viton seals, which are resistant to chemicals and heat.

Here are some additional details about the pump:

The pump is made of cast iron and aluminum, which makes it durable and corrosion resistant.
The motor is a permanent split capacitor (PSC) motor, which is quiet and energy efficient.
The wet end is made of brass and stainless steel, which is resistant to corrosion and wear.
The pump comes with a one-year warranty.
