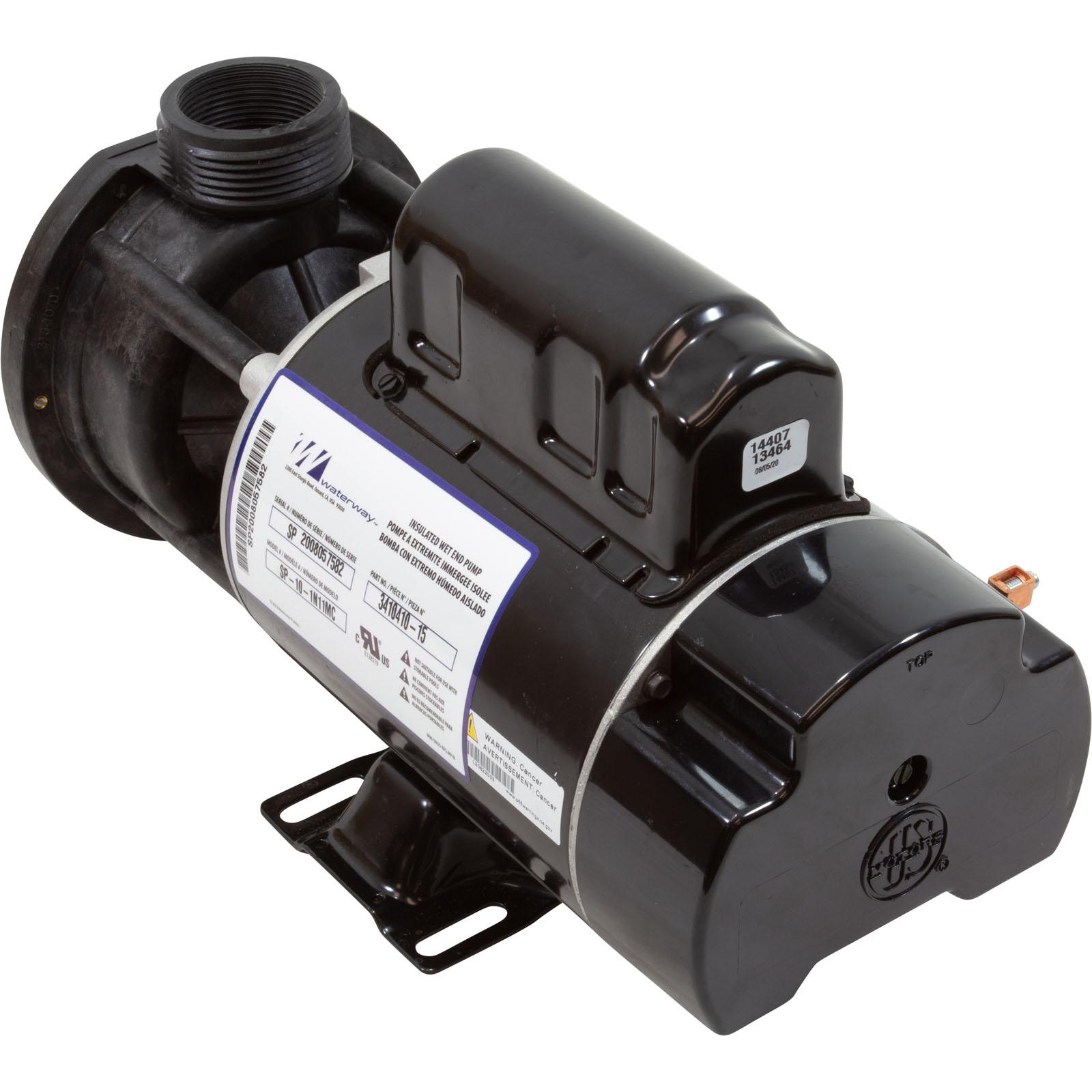

The Waterway Center Discharge 48-Frame pump is the perfect replacement for most center discharge applications. It has reliable performance. It features 1-1/2" intake and discharge and a rotatable wet end for easy installation.
Spa Pump Features:
Reliable center discharge performance
1-1/2" Intake and discharge
Wet end can be rotated for easy installation
Dimensions (H x W x L): 7.35" x 7" x 14.50"
Note: This new E-Series version replaces the old style Waterway center discharge pump
This pump is a good choice for small spas with up to 10 jets. It is a single-speed pump, so you cannot adjust the flow rate or pressure. However, it is still energy efficient and has a low operating cost.
Motor Voltage
115v
Speed
1 Speed (1-Spd)
Motor Amperage/Wattage
11.8A
Horsepower
1.0SPL
Manufacturer
Waterway
Pump Model
E-Series Center Discharge
Suction Pipe Size
1-1/2"
Suction Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Style
Center
Discharge Pipe Size
1-1/2"
Discharge Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Style
Center
Motor Frame
48 Frame Thru-Bolt
Drain Plug Location
3,6,9 o`clock
Here are some additional details about the pump:
The motor is a 1725 RPM induction motor with a capacitor start.
The pump is made of cast iron and stainless steel, which makes it durable and corrosion resistant.
Here are some of the key features of the 3410410-15 spa pump:
Single-speed operation for simple operation
Cast iron and stainless steel construction for durability
Capacitor start motor for quiet operation
UL, CUL, and ETL certified
If you are looking for a simple and affordable spa pump, the 3410410-15 is a good option to consider.
