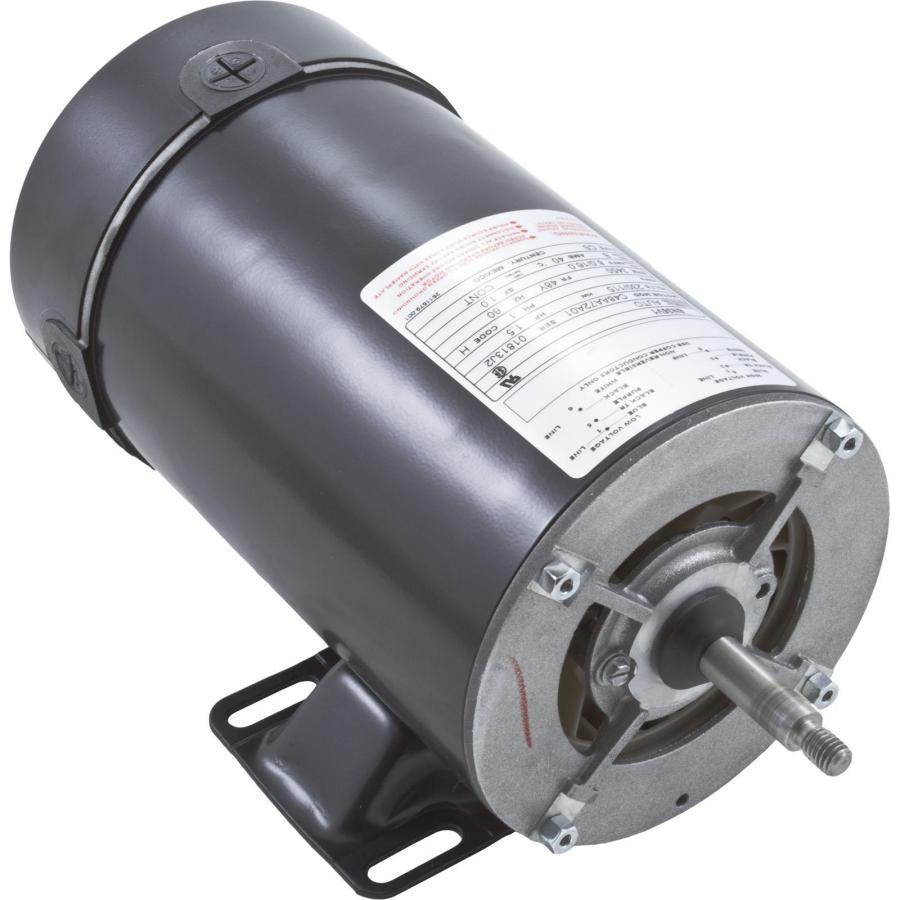

The EZBN35 is a common, general-purpose US Motors (Nidec/Emerson) 1.5 HP, 48Y frame thru-bolt motor used by various pump manufacturers to build complete spa and pool pumps.
It is not specific to a single spa brand.
This motor is typically found attached to a pump "wet end" made by a different company (e.g., Waterway, Aqua-Flo, Pentair), and those complete pumps are then installed by the spa manufacturers.
Manufacturers That May Use Pumps With This Motor
Many spa manufacturers use pumps that are compatible with the US Motors EZBN35 motor.
It is more common for this motor to be found on pumps in above-ground pools or entry-level spas.
Spa brands that might use pumps featuring this motor (or an equivalent like the Century BN35) include:
Aquaterra Spas
Artesian Spas
Cal Spas
Catalina Spas
Coleman Spas
Dream Maker Spas
Dynasty Spas
Master Spas
Strong Spas
Compatible Pump Wet Ends
The EZBN35 motor is compatible with several common pump wet ends due to its standard 48Y thru-bolt frame design:
Waterway: This motor fits certain Waterway pump wet ends.
Aqua-Flo: It is compatible with certain Aqua-Flo pump wet ends.
Hayward: It is a direct replacement motor for certain Hayward Powerflo LX series pumps.
Pentair: It can be used with some Pentair pumps.
Key Motor Specifications
According to information from retailers like SupplyHouse.com and SpaCare.com, the U.S. Motors EZBN35 has the following technical specifications:
Horsepower: 1.5 HP (full rated)
Voltage: 115V / 230V
Amperage: 15.4A (at 115V) / 7.7A (at 230V)
Speeds: Single Speed
Frame Size: 48Y Frame (Thru-bolt mount)
RPM: 3450 RPM
Enclosure Type: ODP (Open Drip-Proof)
Shaft: Stainless steel shaft with threads on the end
When replacing this motor, you typically disconnect the old motor from your existing pump "wet end" and bolt the new one in its place, ensuring you also purchase a new pump seal kit for a proper installation.
