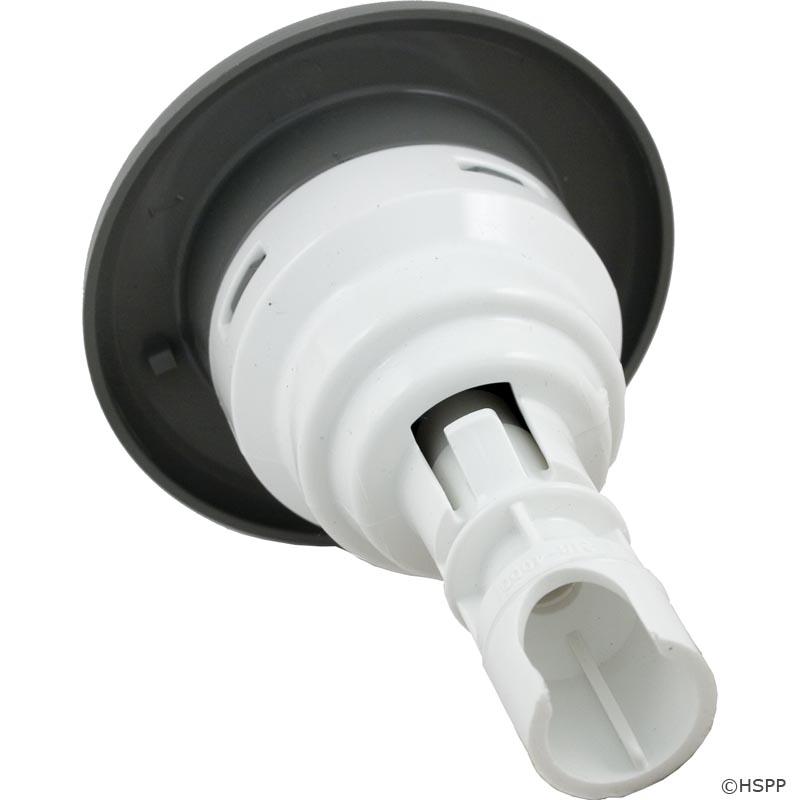

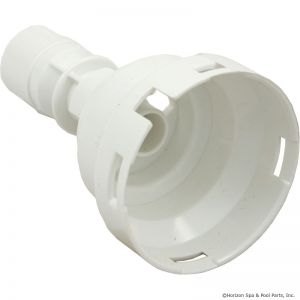

2184000 Diffuser Diverter, Poly Storm Jet Waterway 3 3/8" Poly-Storm Twin Roto Jet Internal - Gray. To install without damage, you must - Place the jet faceplate of the jet on the table. With the internals installed in the diffuser, Square the diffuser on the faceplate. Once squared and aligned with the snap-on positions. Slowly push STRAIGHT DOWN ( not at an angle) It will slide on evenly and will not break. Diameter = 2 - 1/8 inches Length = 3 - 1/2 Inches
These diffusers are for Waterway Spa Jets and may not fit on any other.
Face Diameter
4" OR 3 3/8"
Diffuser Opening Type
7
Nozzle Diameter
5/8"
Base Diameter
2-3/16"
Total Length
4-5/16"
Diffuser Length
3-9/16"
Diffuser Part #
2186530 2184490
Manufacturer
Waterway
Model
Poly Storm Jet
Color
Optional
Internal Type
Optional
Face Style
Optional
Jet Part Type
Internal
Hot Tub Brands That Have Used This Part
The 218-4000 diffuser is a widely used, generic component within the spa industry. Brands that have likely used this, or compatible, Waterway Poly Storm jet systems as Original Equipment Manufacturer (OEM) parts include:
