The 630-K005 hot tub light wall fitting is a product by Waterway Plastics.
Here are the specifications and details:
- Face Diameter: 5"
- Hole Size: 3-3/4"
- Lens Size: 3-1/2"
- The kit includes the 5-inch light assembly and colored lenses.

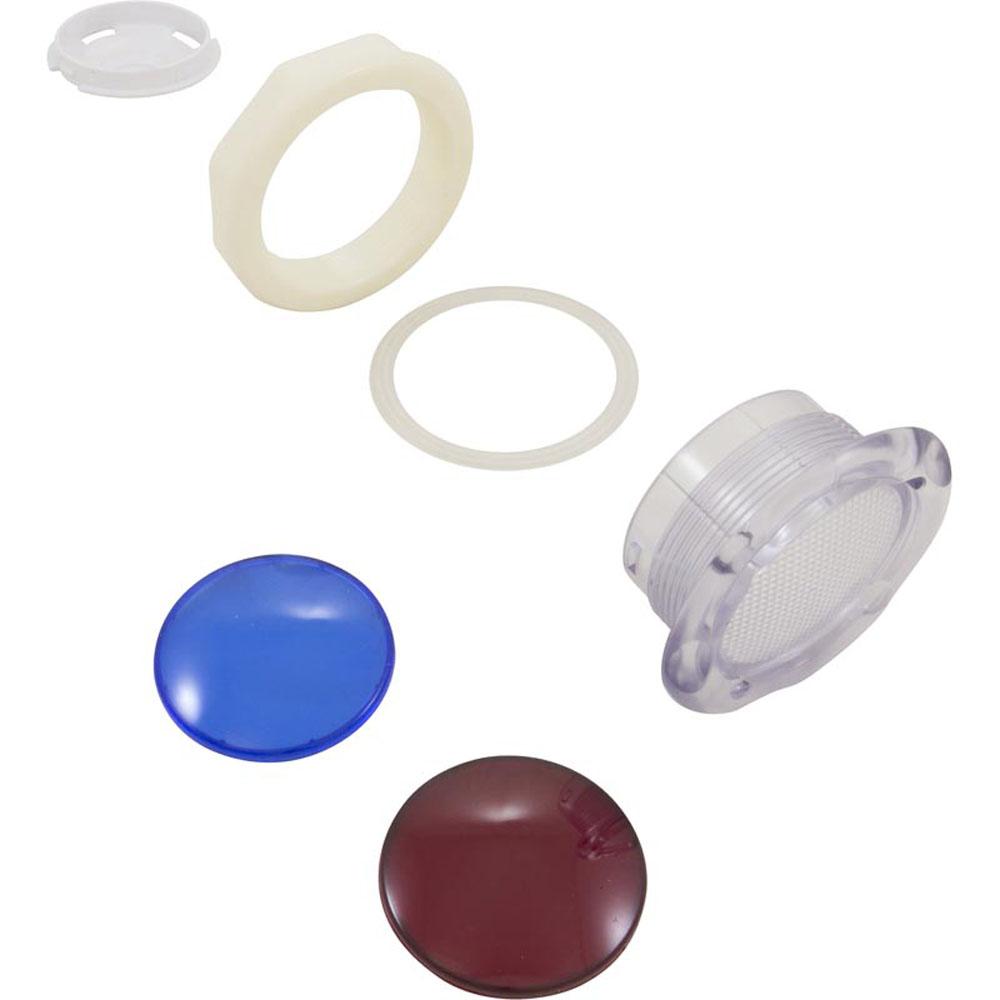

- The assembly includes a lens, reflector, nut, and gasket.
- The light wire harness 813-4360 is sold separately if needed.
- The fixture uses GE912 bulbs, which are not included.

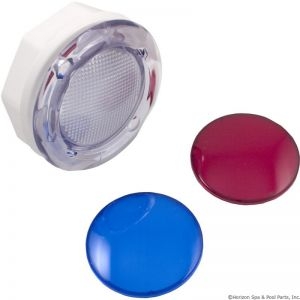

- The kit comes with red and blue lenses1.
- This model also replaces Dynasty Spa 11013 or DYN11013 and replaces 630-K005, 319975, 630K005, 806105107145.
Part number 630-K005 is a 5" Jumbo Spa Light Kit manufactured by Waterway Plastics.

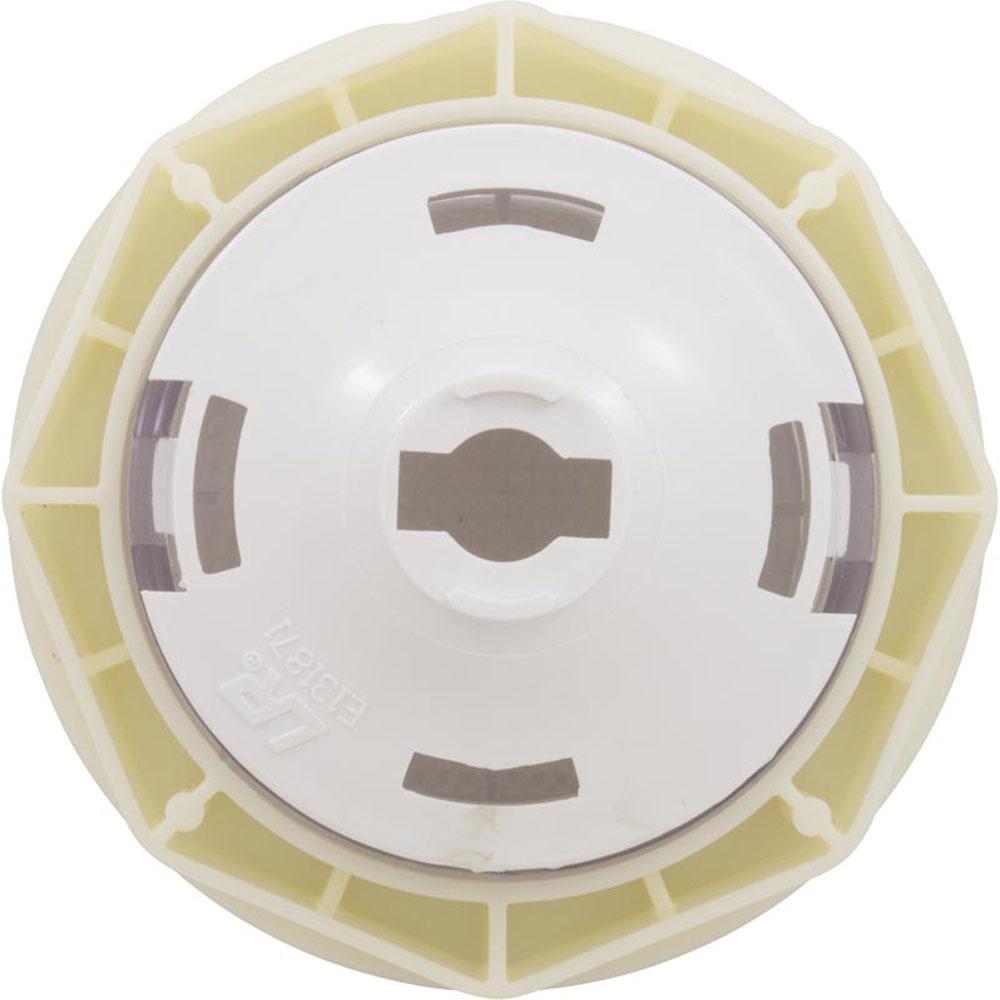

This rear-access light assembly is a standard OEM component used by several major hot tub brands:
- Dynasty Spas: This light kit is a direct replacement for Dynasty Spas part numbers 11013 and DYN11013.
- Coleman Spas: Identified as a compatible light assembly for various Coleman models, specifically cross-referenced with part number 103386.
- Artesian Spas: Used in their spa lines, often listed under the Artesian part number OP35-0001-48.
- California Cooperage: This brand frequently utilizes this jumbo light kit in its spa designs.
- Sundance Spas: Some Sundance/Jacuzzi-affiliated models use compatible 5" jumbo light housings from this Waterway series.
Kit Components & Specifications:
- Included Parts: Typically includes the clear 5" lens, reflector housing, mounting nut, gasket, and one red and one blue colored lens.
- Dimensions: Requires a 3-5/8" to 3-3/4" hole in the hot tub shell for installation.
- Replacement Lens Only: If you only need the colored lenses, the specific part number for the two-lens set is 630-0005.
