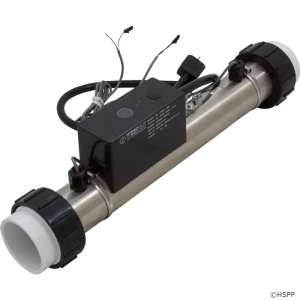

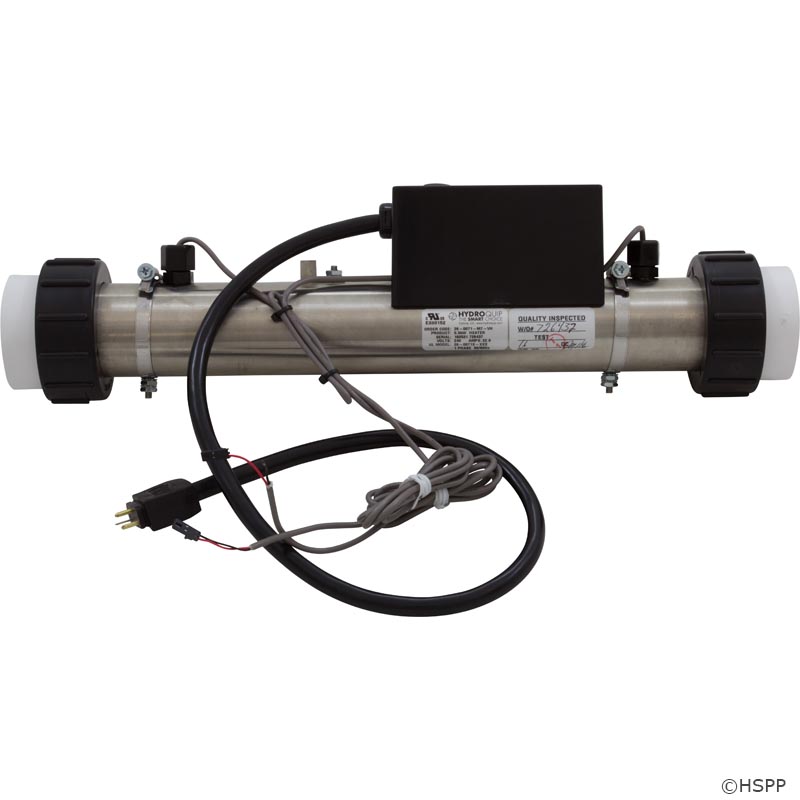

HydroQuip Platinum-B Series M7™ , 5.5kw 115v/230v flo-thru heater. The tube measures 15" x 2" and comes complete with a 24" cord and two Balboa M7™ sensors. For use exclusively with the HydroQuip Platinum B series control systems featuring slide heater technology.
| Housing Configuration |
Straight |
| Heater Length |
15" |
| Lead End Terminal Location |
4-1/8" |
| Threaded Tap Orientation |
12 O`Clock |
| Threaded Tap Location |
12-3/4" From Leading End, 1-5/8" From Leading End |
| Kilowatts |
1.375kW, 5.5kW |
| Voltage |
115v, 230v |
| Sensor Stud Orientation |
None |
| Mounting Stud Type |
Adjustable |
| Heater Size |
2" |
| Heater Application |
HydroQuip Platinum Series |
| Special Features |
Electrical Enclosure, Grounding Lug, M7 Sensors, Power Cord |
- Brand: Hydro-Quip
- Model: 48-PS55-SB
- Wattage: 5.5 kW
- Voltage: 230V
- Current: 24.5 amps
- Dimensions: 15" x 2" x 18.3"
- Weight: 2.75 lbs
- Material: Stainless steel
- Features:
- Flow-through design
- M7 sensor
- 24" cord
- Designed for use with HydroQuip Platinum B series control systems
This heater is designed for use in spas and hot tubs with HydroQuip Platinum B series control systems. It is a 5.5 kW heater, which means it can heat up to 550 gallons of water by 40 degrees Fahrenheit. The heater is made of stainless steel and has a flow-through design, which means that the water flows through the heater element directly. This helps to ensure that the water is heated evenly. The heater also has an M7 sensor, which is more accurate than other types of sensors.
The 48-PS55-SB heater is a good choice for spas and hot tubs that need a reliable and efficient heater. It is also a relatively affordable option.
Here are some additional tips for choosing a hot tub heater:
- The size of the heater should be based on the size of the spa or hot tub. A rule of thumb is to get a heater that is rated for 1.5 kW per 100 gallons of water.
- The voltage of the heater should match the voltage of the spa or hot tub.
- The heater should be made of a durable material, such as stainless steel.
- The heater should have a flow-through design to ensure that the water is heated evenly.
- The heater should have an M7 sensor for accurate temperature readings.
