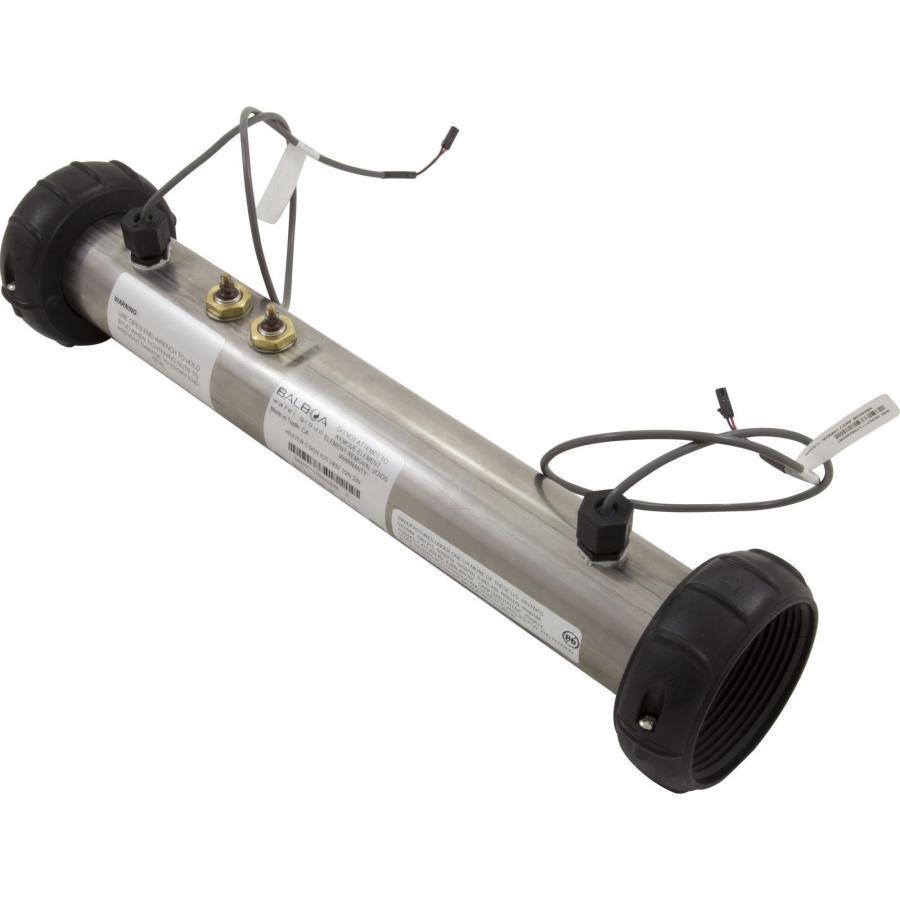

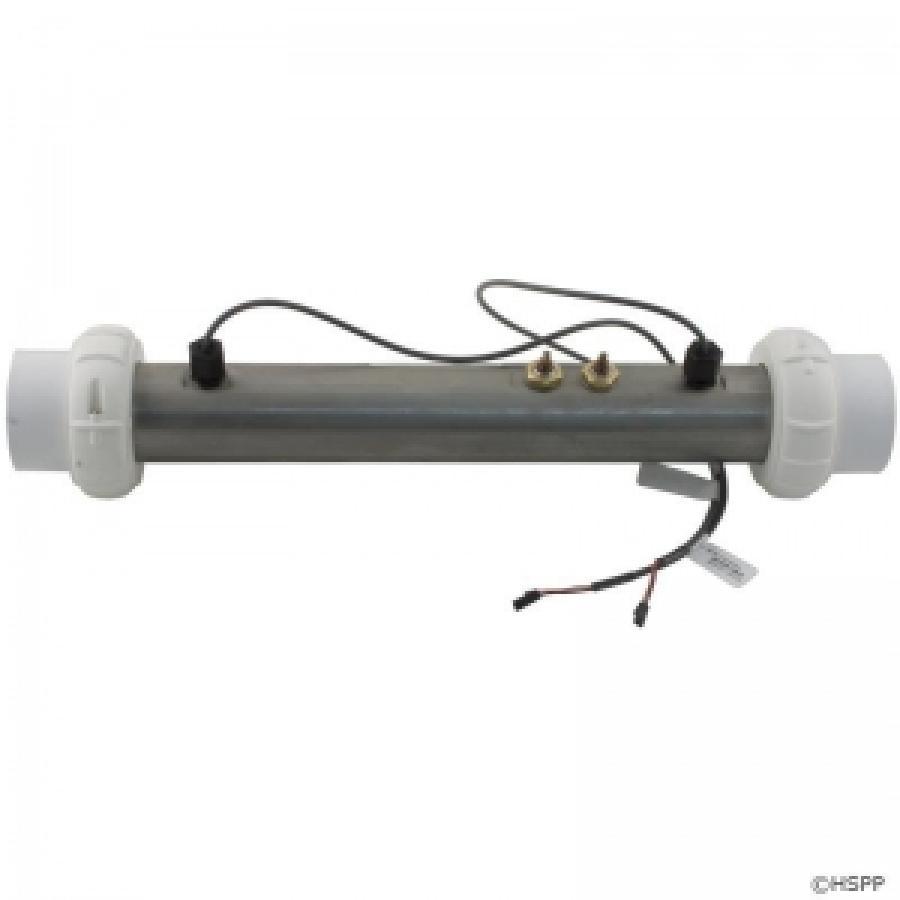

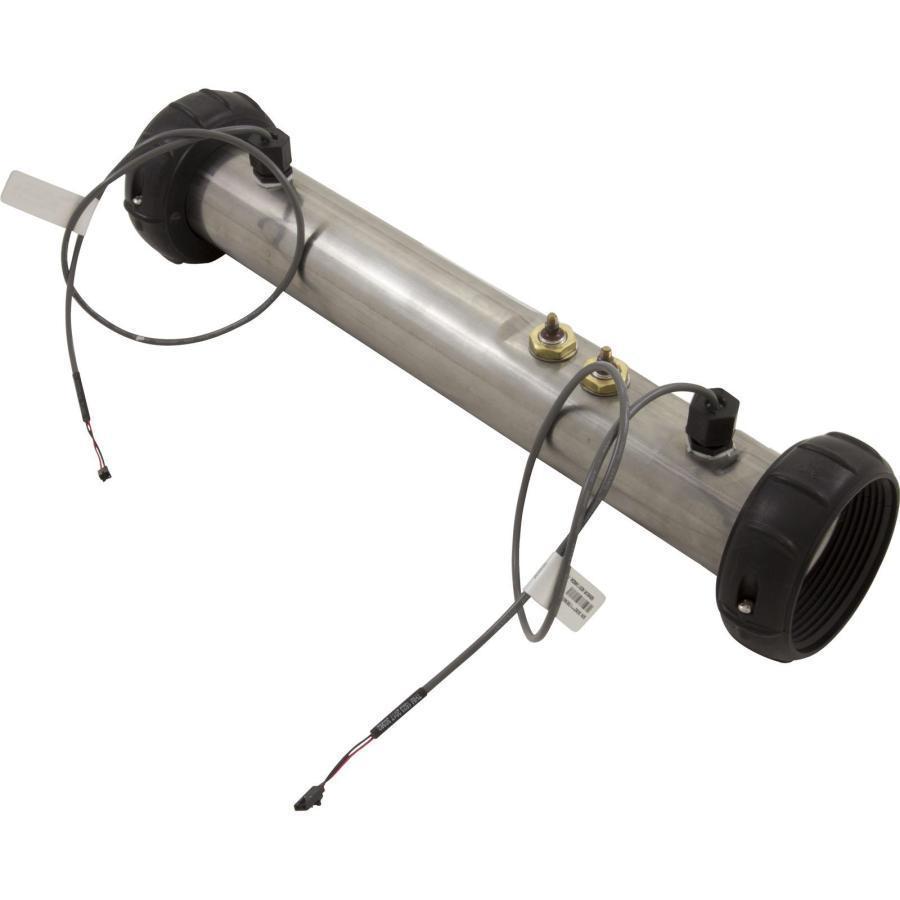

Balboa M7 15" 5.5 kW Spa Heater W/Sensors Value LE M7 System (58010)
Replacement spa heater 58010 is a powerful 5.5 kilowatt heater that uses Balboa's proprietary M7 technology. It runs at 240 volts and contains an Incoloy heating element. This heater also comes with the necessary heat sensors. Heater 58010 is compatible with Balboa spa control systems that contain any of the following part numbers:
52073
52073-01
52074
52074-01
52075
52075-01
52112
52112-01
52112-02
52112-03
52112-04
52112-05
52112-06
52112-07
52112-C2
52112-C3
52112-C4
52112-C5
52112-C6
52310
52310-01
52310-HC
52310HC1
52319
52319-01
52319-02
52319-C
52319-C1
52319-C2
52319-HC
52319HC1
52319HC2
52375
52375-01
52387
52387-01
52387-02
52387-03
52387-04
52391
52391-01
52391-02
52425
52425-01
52425-02
52425-03
52477
52477-01
52477-02
52512
52512-01
52512-02
52516
52516-01
52516-02
52550
52550-02
52550-03
52550-04
52550-C2
52550-C3
52561
52561-01
52561-02
52561-03
52561-04
52561-05
52561-06
52561-07
52561-C5
52561-C6
52701
52701-01
52701-02
52716
52716-01
52716-02
52716-03
52716-04
52716-C
52716-C1
52716-C2
52716-C3
52716-C4
52716-C5
52718
52718-C
52718-C1
52756
52756-01
52756-02
52756-C
52756-C1
52756-C2
52904
52904-01
52904-02
52904-03
52905
52905-01
52906
52906-01
52958-01
52968-01
52968-02
53006
53006-01
53006-02
53006-03
53007
53007-01
53007-02
53007-HC
53007HC1
53007HC2
53324
53325
53325-01
53325-02
53325-03
53420
53420-01
53420-02
53425
53425-01
53425-02
53425-03
53672
53672-01
53672-02
54261
54261-01
54261-02
Brand: Balboa
Model: 58010
Wattage: 7.5 kW
Voltage: 230V
Current: 32.8 amps
Dimensions: 17" x 2" x 18.3"
Weight: 3.9 lbs
Material: Stainless steel
Features:
Flow-through design
Incoloy-coated heater element
1/8" NPT pressure switch tap
Shipped with 2" tailpieces, split nuts, and gaskets
Pressure switch not included
This heater is designed for use in spas and hot tubs with Balboa controls. It is a 5.5 kW heater, which means it can heat up to 750 gallons of water by 40 degrees Fahrenheit. The heater is made of stainless steel and has a flow-through design, which means that the water flows through the heater element directly. This helps to ensure that the water is heated evenly. The heater also has an Incoloy coated heater element, which is more resistant to corrosion than other types of heater elements.
The 58010 heater is a good choice for spas and hot tubs that need a reliable and efficient heater. It is also a relatively affordable option.
Here are some additional tips for choosing a hot tub heater:
The size of the heater should be based on the size of the spa or hot tub. A rule of thumb is to get a heater that is rated for 1.5 kW per 100 gallons of water.
The voltage of the heater should match the voltage of the spa or hot tub.
The heater should be made of a durable material, such as stainless steel.
The heater should have a flow-through design to ensure the water is heated evenly.
The heater should have an Incoloy-coated heater element to resist corrosion.
Companies That Used This Part
This universal M7 heater design is perhaps one of the most common heaters in the industry and has been used by nearly every spa manufacturer that incorporates Balboa control packs (VS, GS, EL, BP, Value, LE series) into their systems.
Specific brands that use compatible M7 systems include:
