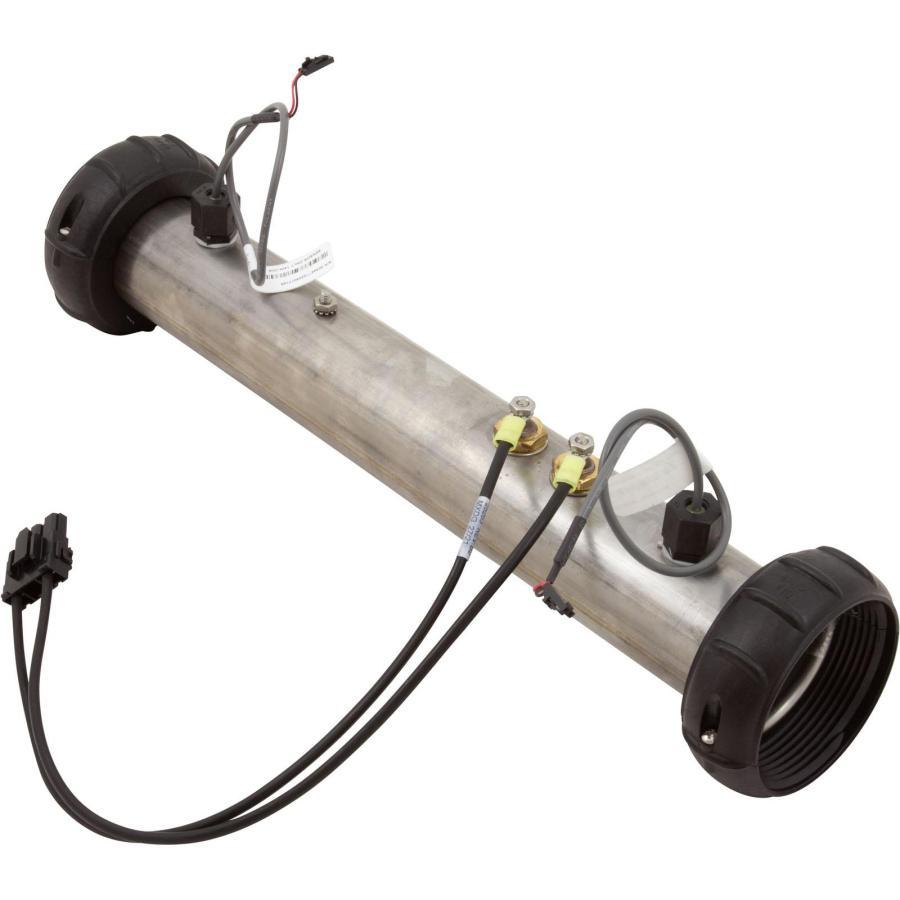

The part number G7512-01 refers to a specific 5.5 kW, 230V flow-through heater assembly made by Balboa Water Group.
This heater uses Balboa's M7 sensor technology and is compatible with the widely used Balboa M7 and newer BP series control systems.
Because Balboa components are standard across a significant portion of the spa industry, this heater is installed in a large number of different hot tub brands.
Spa Manufacturers Using the G7512-01 Heater
The following brands have been known to use the
Balboa G7512-01 heater
or compatible Balboa control packs in their hot tubs:
Aquaterra Spas
Artesian Spas
Cal Spas
Caldera Spas
Coast Spas
Coleman Spas / Maax Spas
Dynasty Spas
Emerald Spas
Freeflow Spas
Great Lakes Spas
Hydro Spa
Jacuzzi/Sundance Spas (on specific control systems)
Marquis Spas
Master Spas
Platinum Spas
Strong Spas
Superior Spas
Thermo Spas
Viking Spas
Vita Spas
Heater Specifications & Part Details
Manufacturer: Balboa Water Group
Voltage: 230V (can be wired for 120V/1.375kW operation in some configurations)
Wattage: 5.5 kW (5500 Watts)
Length: 15-inch stainless steel tube
Plumbing Connection: 2-inch slip socket
Technology: Uses patented M7 dual sensor technology for safety and flow detection.
Replaces Other Parts: This part number replaces several older numbers, including 58083, 55302, 58209, 58000, 58105, and HydroQuip number 26-58306-KH
