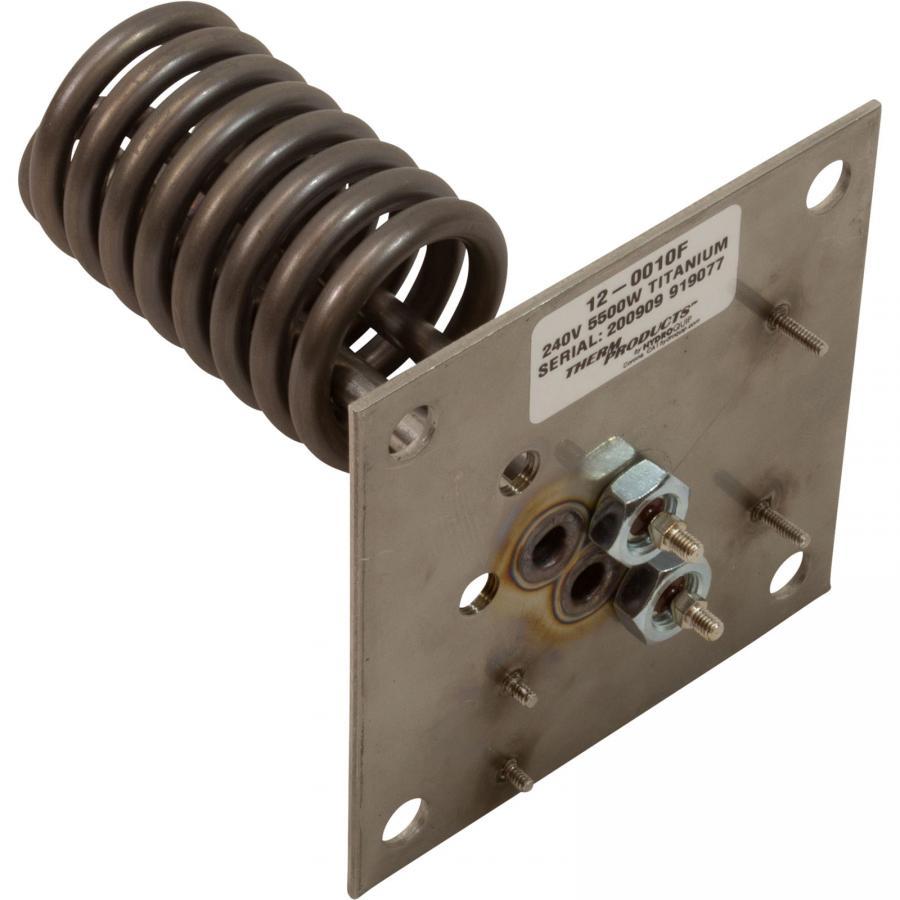

5"x 5"Flange Element Welded construction is most commonly used in plastic manifolds such as Brett Aqualine, Premier, Allstate, and Hot Water products. Dual 5/16" thermowell, studs for thermodisc, 1/8"npt pressure switch tap, the hole for current collector bolt. Flange mount holes 4" on center.
The element does not include 1/8" plug or nuts for current collector/hi-limit.
Part number 47-555-2030T is a titanium flange heater element (5" x 5") typically rated at 5.5kW. It is a universal replacement part often manufactured by Horizon or HydroQuip under the "Brett Style" designation.
This specific heater element is most commonly used in hot tubs featuring plastic manifolds or control systems from the following manufacturers:
Brett Aqualine: The primary system for which this "Brett Style" universal element was designed.
Aruba Spas: Specifically uses HydroQuip replacement parts including this heater line.
Premier Spas: Utilizes the plastic manifolds compatible with this welded flange element.
Allstate Spas: Another brand known to use the compatible plastic manifold systems.
Hot Water Products: Frequently uses these specific flange-mount elements in their spa builds.
HydroQuip: As a major OEM of replacement systems, HydroQuip provides this part for a wide range of retrofitted spas including Arctic Spas, Coleman, Maax, and Vita Spas.
