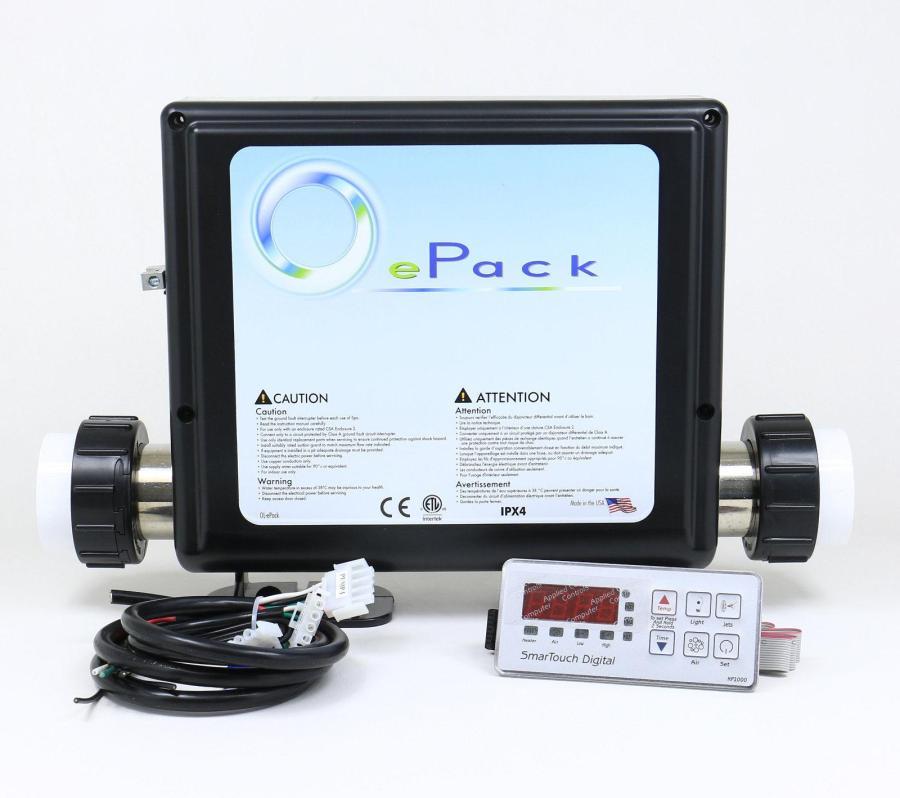

ACC ePack Digital Baptismal Heating & Control System (120V Configuration)
Before finalizing your order for the ACC ePack, please review these specifications tailored for baptismal pool applications to ensure compatibility with your facility's electrical and plumbing setup.
System Overview
The ACC ePack is a robust, digital control solution ideal for maintaining consistent water temperatures in baptismal fonts.
This specific configuration is optimized for 120V power, providing an efficient heating and filtration loop for single-pump setups.
Key Baptismal Features:
- 120V Conversion: While the system is multi-volt capable, this setup is designed for 120V installations. Note that at 120V, the 4.0KW heater will operate at approximately 1.0KW, providing a steady, gentle heat rise ideal for smaller pools or maintaining temperature.
- Single Pump Operation: Perfectly suited to manage one circulation pump (120V, 12A Max) to handle both heating and water filtration.

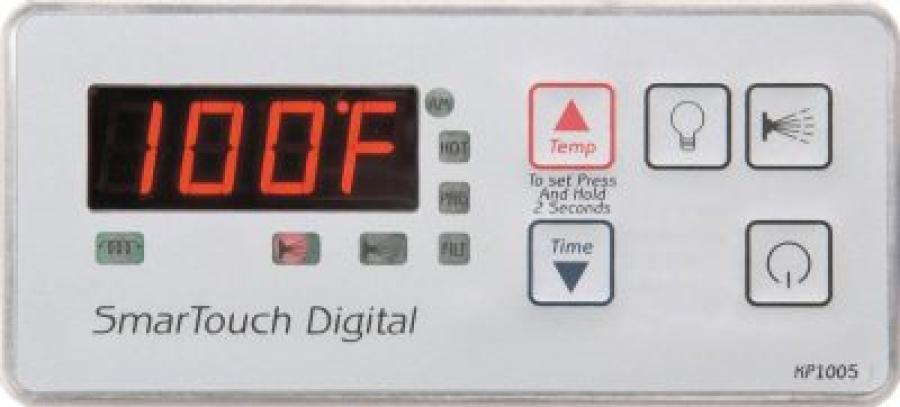

- Digital Precision: Includes a user-friendly digital topside controller (2.5" x 5.5") for precise temperature adjustments, ensuring the water is comfortable for candidates and clergy.
- Safety & Durability:
- Stainless Steel Flo-Thru Heater: Resists corrosion and provides long-term reliability.
- Safety Sensors: Equipped with freeze protection, high-limit shut-off, and a calibrated pressure switch to prevent dry-firing.
- Heavy-Duty Contactor: Features a 2-pole contactor for reliable heater element control.
Installation Specifications:
- Topside Cutout: Standard controller requires a 4 3/4" x 1 3/4" opening. (Optional compact or deluxe sizes available).
- Plumbing: Includes a pair of 2-inch heater tailpieces with O-ring gaskets for easy integration into your existing PVC plumbing.
- Wiring: Includes 48-inch cords with AMP connectors for the motor and optional ozone/light circuits.
Important Considerations for Baptisms:
- Pump Compatibility: When running the pack at 120V, your circulation pump must also be 120V.
- Heat Recovery: At 120V (1.0KW), the heating process is slower than at 240V. Please verify your pool volume to ensure this wattage meets your "heat-up" time requirements.
- Warranty: Includes a 2-year limited factory warranty.
Support:
Please verify the physical space available for the pack installation. If you are unsure if this 120V configuration will provide enough recovery heat for your specific gallon capacity, please contact us for a technical consultation.
