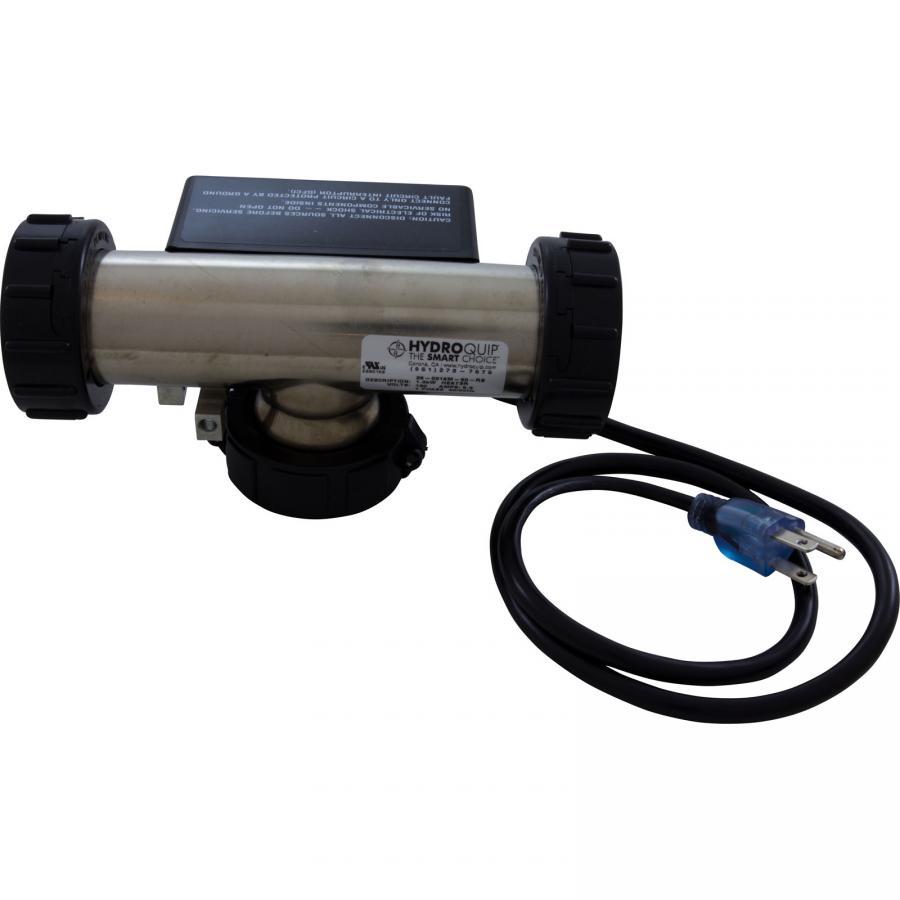

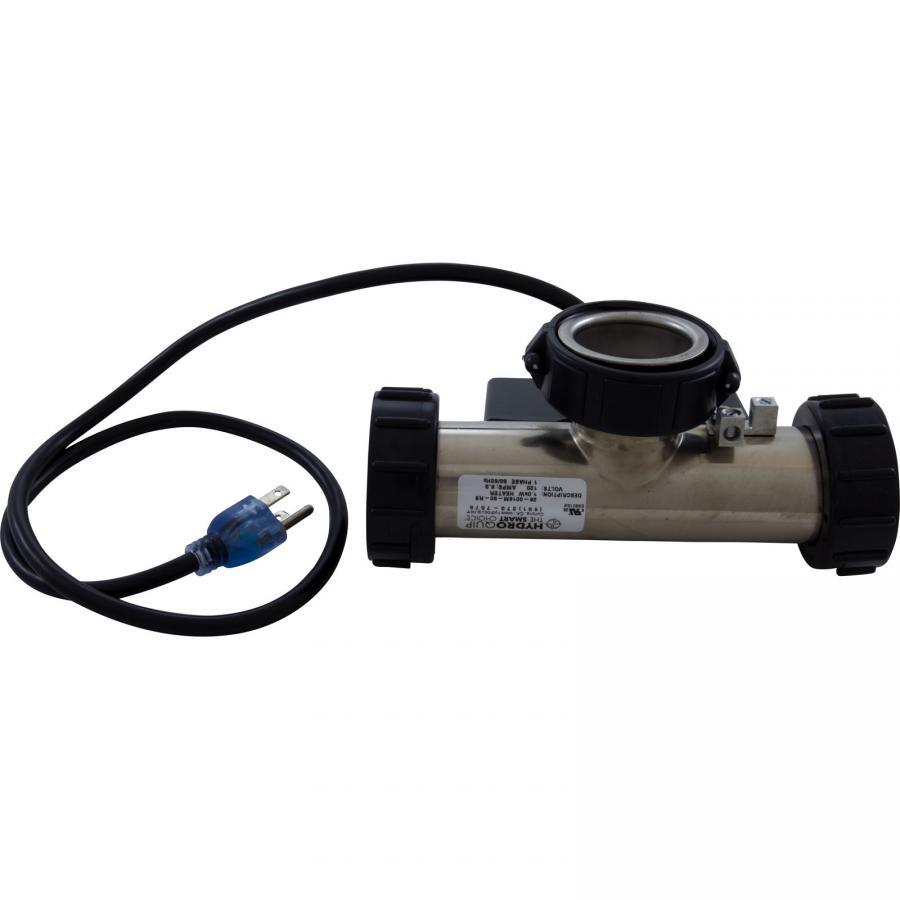

Hydro-Quip Compact Series Whirlpool Bath Heaters Positively the smallest, most compact bath heater on the market today Features
T-Style, in-line vacuum, and in-line pressure
1" socket unions (pressure) or 1-1/2" socket unions (vacuum)
1.9" stainless housing
7" flange to flange length
115v or 230v models
Automatic smart thermostat
Intelligent high-temperature limit circuit (will not trip)
Heater control pressure switch (pressure-activated models)
Heater control vacuum switch (vacuum-activated models)
Heater "ON" indicator light

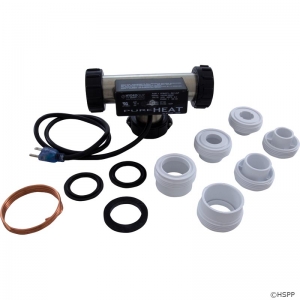

The part number CFB4PP1-D011JUP refers to an inline, low-flow 1.0kW/4.0kW heater element replacement, a common cross-reference part used in hot tubs originally equipped with Laing Thermotech heaters. Hydro-Quip makes this part and often replaces the Hydro-Quip part number PH100-10UP.
The following hot tub manufacturers and brands have used this part or compatible heater assemblies in their spas:
Jacuzzi: This is a major manufacturer that uses this heater or compatible assemblies in models such as the J-310, J-315, J-325, J-330, J-335, J-340, and J-345.
Sundance Spas: A related brand to Jacuzzi that frequently uses this low-flow "trombone-style" heater design in models like the Metro, Caprio, Tango, Solo, Bahia, Cayman, Palermo, and Sweetwater Lagunas.
Hot Spring Spas: Some of their models, particularly those using older Laing designs, are compatible with this replacement part.
Spa Builders (Balboa): The heater assembly is compatible with systems from Spa Builders and Balboa that are configured for low-flow heaters with integrated sensors.
Pinnacle Spas: Certain models using universal control packs may be compatible with the CFB4PP1-D011JUP heater assembly.
