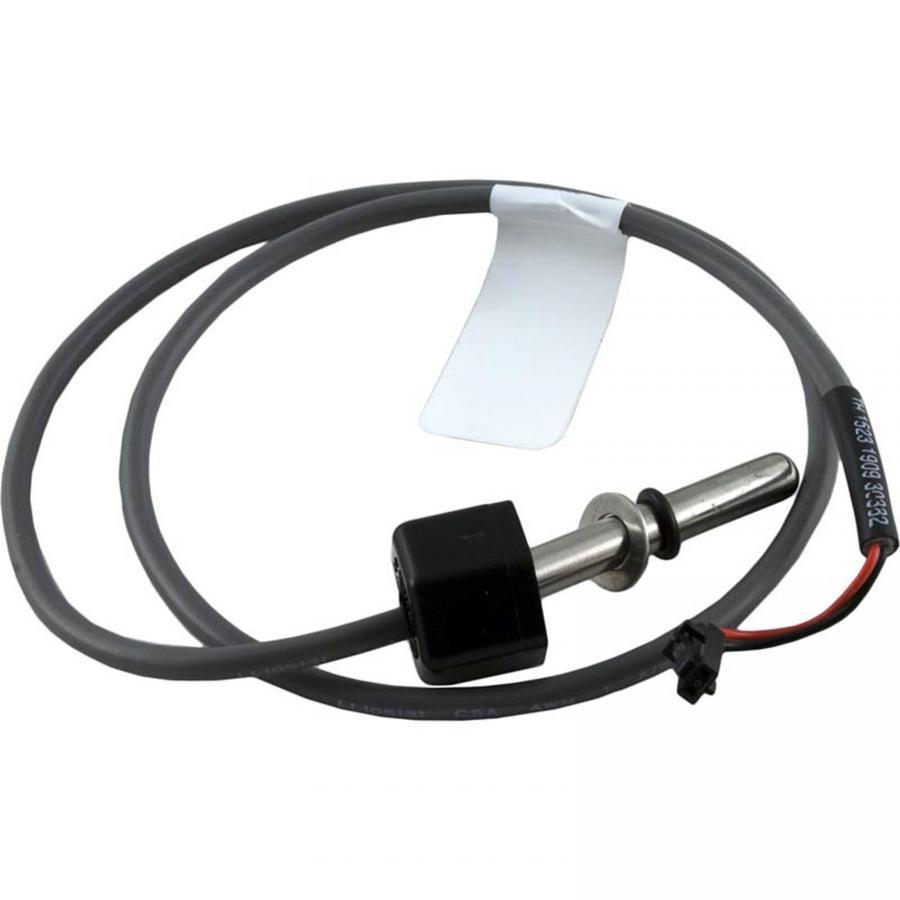

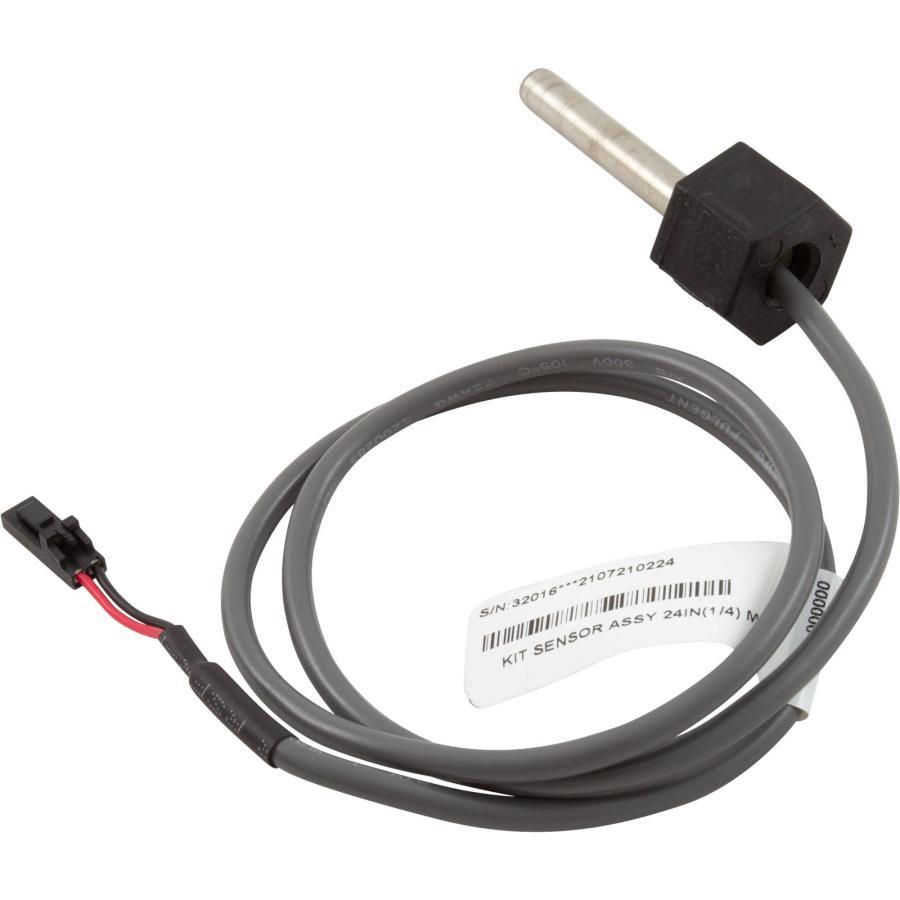

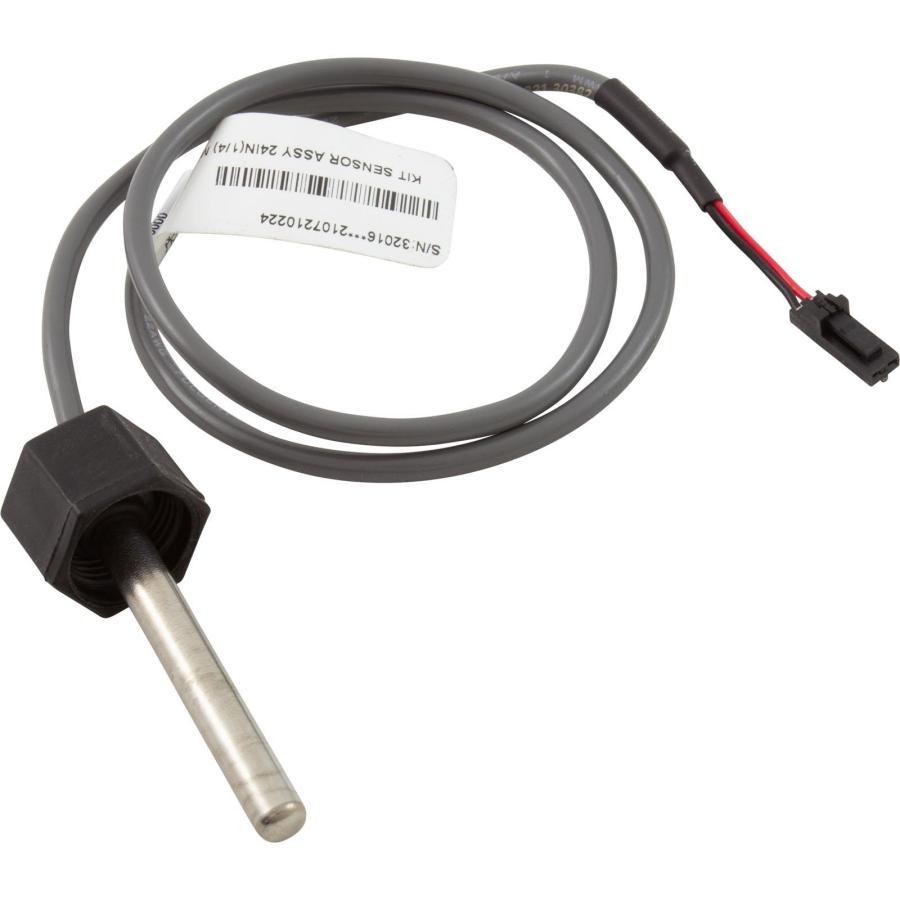

The Balboa 32016 is a temperature and high-limit sensor assembly that plays a pivotal role in Balboa’s M7 technology systems, including the LE, Value, and SUV models. This sensor assembly is integral to the functioning of M7 heaters, which are equipped with two identical sensors at each end of the heater tube. These sensors work together to monitor the water temperature and provide high-limit protection, ensuring the system operates within safe parameters.
Here are some key features of the Balboa 32016 sensor that contribute to its use and effectiveness:
- Sensor Probe with 1/4" x 2" bulb: The size of the bulb allows for precise temperature readings.
- Sensor Mount Cap: This feature ensures the sensor is securely installed.
- Bulb O-Ring & Washer: These components help maintain a tight seal, preventing potential leaks and preserving the sensor’s integrity.
- 24" Cable with Board Connector: The length of the cable provides flexibility during installation.
This sensor assembly is a genuine OEM part from Balboa Water Group, designed specifically for M7 Systems. If both sensors are needed for the M7 heater, it is recommended to purchase two of these units.
Here are additional details about the sensor:
- Sensor Application: Spa Control
- Sensor Type: Temp or Hi Limit
- Application: Balboa Water Group
- Model: M7
- Connector Type: 2 pin
- Sensor Diameter: 1/4"
- Wire Count: 2 wire
- Wire Length: 24"
The manufacturer of this sensor is the Balboa Water Group, and the manufacturer number is 32016. This sensor can replace the following parts: _32016, 30042, 30344, 30382, 304988, 34-0202A-K, 52016, 53605, BX9983, and RME-30344A. This wide range of compatibility makes it a versatile choice for various system requirements.
