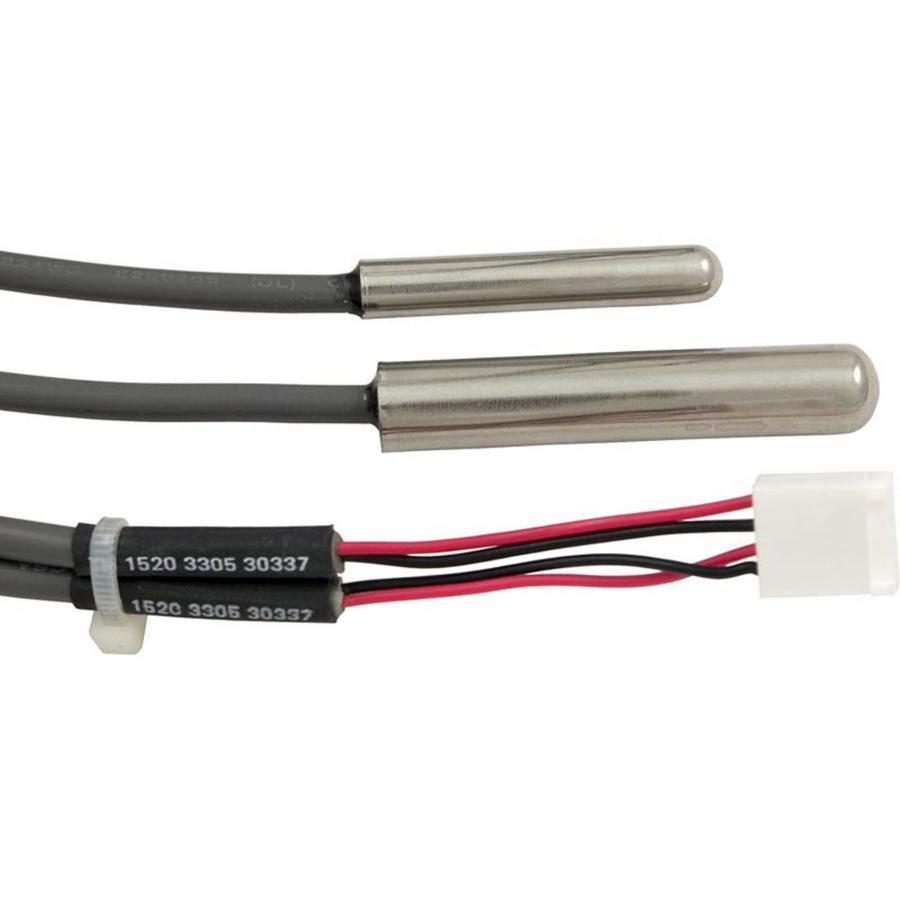

The 30337 Sensor, BWG, 96" Temp 3/8"dia, 31" Hi Limit 1/4"dia, 4-pin is a sensor assembly designed for spa control applications.
Here are the details:
Sensor Application: It is used in Spa Control systems.
Sensor Type: It is a Temp and Hi Limit sensor.
Application: It is specifically designed for the Balboa Water Group Model.
Connector Type: It has a 4-pin connector.
Sensor Diameter: The sensor diameters are 3/8" and 1/4".
Wire Count: It has a 4-wire count and 2 wire/2wire.
Wire Length: The wire lengths are 96" and 31" respectively.
Replaces: This sensor can replace the following models: 30337, 34-0202D-K, 610989, 9711-27, BAL30337, BB30337KIT, HQP-851-9054.
This sensor is an essential component in maintaining the optimal temperature and high limit control in spa systems.
It ensures that the spa operates within safe temperature limits, providing a comfortable and safe spa experience. It’s available for purchase from various suppliers.
The 30337 (or 30337KIT) is a Balboa Water Group dual sensor assembly that includes both a temperature sensor and a high-limit sensor on a single 4-pin connector. It is widely used by many original equipment manufacturers (OEMs) that utilize Balboa control systems, particularly older "non-M7" systems that require external sensors rather than those built into the heater.
The following spa manufacturers have utilized the 30337 sensor assembly or compatible Balboa packs in their hot tubs:
Cal Spas (Replaces P/N ELE09900310 and ELE09900290).
Coleman Spas (Used for model years 1991–2000 and 2001–2002 600 & 700 Series).
Sundance Spas (Specifically for systems 701 and 724).
MAAX Spas (Commonly found in older models from the 1990s and early 2000s).
QCA Spas (Used in systems that typically feature pressure switches instead of built-in sensors).
Catalina Spas.
Viking Spas (Compatible with P/N 80080).
Bullfrog Spas (Compatible with various models using standard Balboa electronics).
Master Spas.
Clearwater Spas.
Emerald Spa Corporation.
Jacuzzi Whirlpool Bath (In older models using standard Balboa components).
Technical Specifications for Replacement:
Configuration: Dual sensor (Temp + Hi-Limit) on one wiring harness.
Connector: 4-pin, 4-wire plug.
Cable Lengths: Typically 96 inches for the temperature sensor and 31 inches for the hi-limit sensor.
Bulb Diameters: Temperature bulb is 3/8 inch; Hi-limit bulb is 1/4 inch.
