| Pump to Motor Foot Types |
3 |
| Motor Frame |
48 Frame Thru-Bolt, 56 Frame Thru-Bolt |
| Drain Plug Location |
3,4,6,9 o`clock |
| Suction Auxillary Port |
None |
| Suction Style |
Center |
| Suction Connection (Physical Dimension) |
3-1/16"od |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Pipe Size |
2" |
| Discharge Auxilary Port |
None |
| Discharge Style |
Side |
| Discharge Connection (Physical Dimension) |
3-1/16"od |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Pipe Size |
2" |
| Horsepower |
2.5hp |
| Manufacturer |
AquaFlo/Gecko |
| Pump Model |
Flo-Master XP3 |
| Manufacturer Impeller Number |
91698250 |
| Volute Fastening Type |
8 Screws |
| Volute/Sealplate Number |
92770735 |

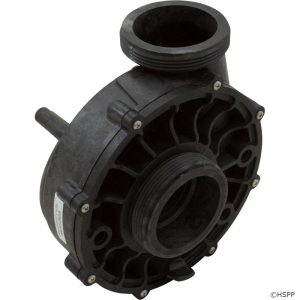

AquaFlo/Gecko Wet End
Side discharge, 2-1/2"mbt suction/discharge, 48/56 frame wet end for XP3 pump. This wet end is used with a 3.0hp, 48 or 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.
