| Pump to Motor Foot Types |
14 |
| Motor Frame |
56 Frame Thru-Bolt- 4" Spacing |
| Drain Plug Location |
4,6,9 o`clock |
| Suction Auxillary Port |
None |
| Suction Style |
Center |
| Suction Connection (Physical Dimension) |
3-1/16"od |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Pipe Size |
2" |
| Discharge Auxilary Port |
None |
| Discharge Style |
Side |
| Discharge Connection (Physical Dimension) |
3-1/16"od |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Discharge Pipe Size |
2" |
| Horsepower |
2.0hp |
| Manufacturer |
AquaFlo/Gecko |
| Pump Model |

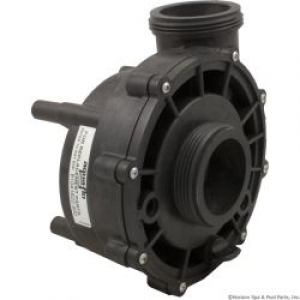

Flo-Master XP2 |
| Manufacturer Impeller Number |
91694200 |
| Volute Fastening Type |
8 Screws |

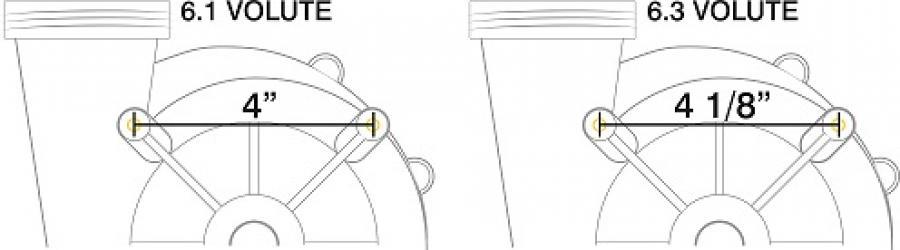

Check your Diameter of MOTOR.
6.3"dia, 56fr is standard
