Smart Touch Topside Selection
Overview
The checkout PHOTO will not change. ONLY Price and SELECTION!
The spa-side controls are designed to seamlessly replace all ACC Controls, Applied Computer Controls, and Smart Touch Controls. These are used by a variety of companies including, but not limited to Acura Spas, Life Spas, LifeForce, United Spas, Sunbelt Spas, Phoenix Spas, American Spas, Waterways, Hot Tub Works, Spa Mechanics, Viking Spa, Hawkeye Spa, Catalina Spa.
Please ensure to verify the compatibility of our controls with your existing system before proceeding with the replacement.
The Control Packs come with the topside included.
Topsides Compatible with Smart Touch Control Boxes.

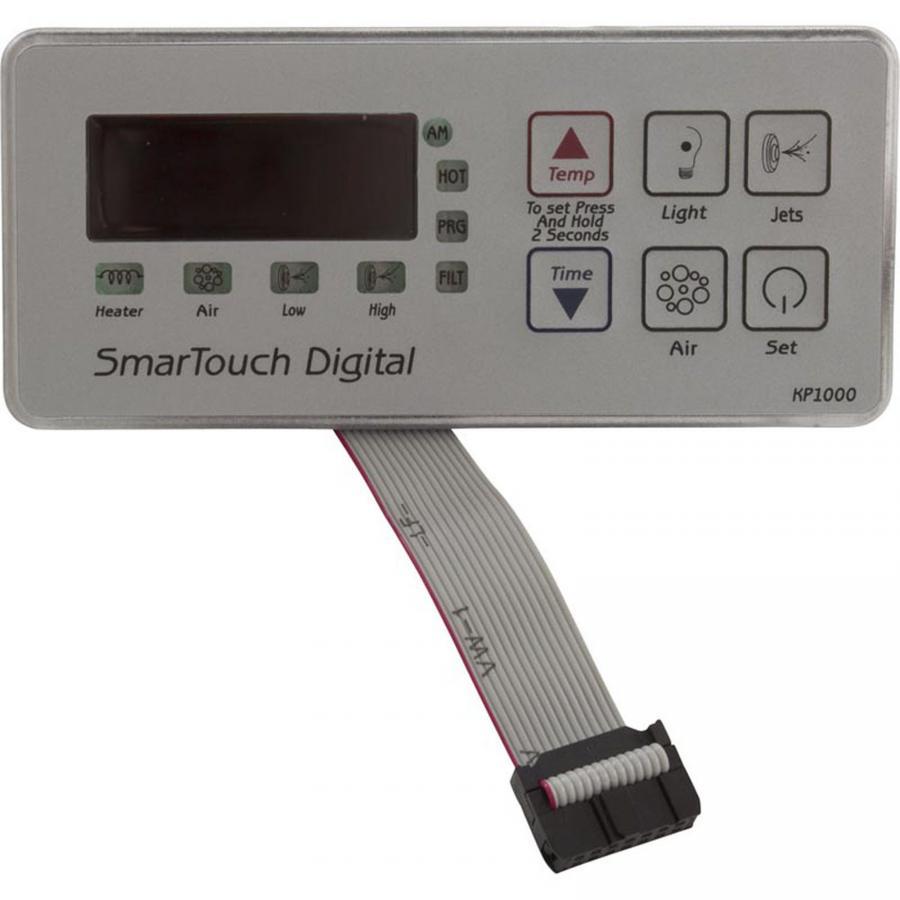

The KP1000 is a 5 or 6-button topside control panel made by ACC (Applied Computer Controls) for use with the Smartouch Digital Epack, STD 1000, STD Uni-Pack 1000, and Compack Jr.
- Size: The overall length of the KP1000 is 2.5" x 5.5".
- Cutout Required: For installation, a cutout of 1-3/4" x 4-3/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 6 buttons which are Temp, Lights, Jets, Jet, Set.
_______________________________________
The KP1005 is a 5-button topside control panel made by ACC (Applied Computer Controls) for use with the Smartouch Digital Epack, STD 1000, STD Uni-Pack 1000 and Compack Jr.
- Size: The overall length of the KP1005 is 2.5" x 5.5".
- Cutout Required: For installation, a cutout of 1-3/4" x 4-3/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 5 buttons which are Temp, Lights, Jets, Set.
_______________________________________
LX1000 2 PUMP
LX1005 (3” x 6.5”) but NO air button ( One Pump )
- Size: The overall size of the LX-1000/5 is 3" x 6.5".
- Cut Out Required: A 2" x 5.25" cut-out is required for installation.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 5 or 6 buttons
_______________________________________
KP2100 (2” x 4.5”)
- Size: The overall size of the KP-2100 is 2" x 4.5".
- Cut Out Required: A cut out of 1-3/4" x 4.25" is required for installation.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 6 buttons
_______________________________________
KPR2100 (2” x 4.5”)
Standard 2nd Topside Option
- Size: The overall size of the KPR-2100 is 2" x 4.50".
- Cutout Required: For installation, a cutout of 1-3/4" x 4-1/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 4 buttons
_______________________________________
KP2105 (2” x 4.5”)
- Size: The overall size of the KP-2105 is 2" x 4.5".
- Cutout Required: For installation, a cutout of 1-3/4" x 4-1/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 5 buttons
_______________________________________
KP2005 (3.25” x 7.25”)
Standard for Smartouch 2000 Packs
- Size: The overall size of the KP-2005 is 3.25" x 7.25".
- Cutout Required: For installation, a cutout of 2-3/4" x 6-3/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 5 buttons
_______________________________________
KP2010 (3.25” x 7.25”)
Standard for Smartouch 2000 Packs
- Size: The overall size of the KP-2010 is 3.25" x 7.25".
- Cutout Required: For installation, a cutout of 2-3/4" x 6-3/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 6 buttons
_______________________________________
KP2020 (3.25” x 7.25”)
Standard for Smartouch 2000 Packs
- Size: The overall size of the KP-2020 is 3.25" x 7.25".
- Cutout Required: For installation, a cutout of 2-3/4" x 6-3/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 7 buttons
_______________________________________
LX2020 (3.5” x 9”)
- Size: The overall size of the LX-2020 is 3.5" x 9".
- Cut Out Required: A cutout of 2-3/4" x 7-1/4" is required for installation.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 7 buttons
_______________________________________
XP-2020 (3.25” x 7.25”)
- Size: The overall size of the XP-2020 is 3.25" x 7.25".
- Cutout Required: For installation, a cutout of 2-3/4" x 6-3/4" is required.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 7 buttons
_______________________________________
LXP-2020 (3.5” x 9”)
- Size: The overall size of the LXP-2020 is 3.5" x 9".
- Cut Out Required: A cutout of 2-3/4" x 7-3/4" is required for installation.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 7 buttons
_______________________________________
XL3020 (3.5” x 9”)
- Size: The overall size of the XL-3020 is 3.50" x 9".
- Cut Out Required: A cutout of 2-3/4" x 7-3/4" is required for installation.
- Cable: It comes with a 5-foot ribbon cable with a 14-pin connector.
- Buttons: The panel has 7 buttons
The ACC XL3020 is a large topside control keypad for spa systems. It measures 9" x 3.5" and is compatible with ACC Epack, SMTD1000, 1000 Unipack, SMTD2000, 2000 Unipack, and 3000 spa control systems.
The XL3020 operates up to the following components:
- Pump 1
- Pump 2
- Pump 3 or Air blower
- Circ pump
- Ozone
- Light
It also includes the ribbon cable that attaches the topside to the spa control pack. Please note that circ pumps are not listed in the drop-down menu because they are operated by the same button as the Pump 1 on the topside display.
In terms of functionality, the XL3020 has a built-in timer. A 20-minute elapsed-time clock switches off any active function. That function can be restarted immediately for continued use. The primary pump is dual-speed. Press once to activate the low jets. Press again for high jets. A third depression turns the jets OFF if the heater is off.
Your spa may contain a third pump OR air blower system. Press once to activate the high jets or blower. Press again to turn it off. Your spa is equipped with a light system. Press the light button once to turn the lights on. Press again to turn the light off.
