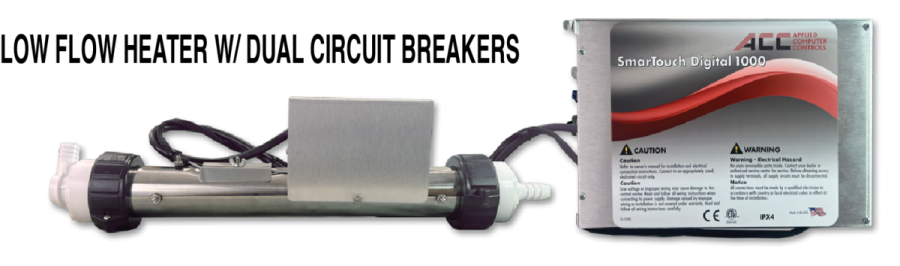

The UNI1000 ACC hot tub control pack, also known as SmarTouch Digital UNI 1000, is a versatile upgrade for your hot tub system. Manufactured by Applied Computer Controls, it can manage various components including a 2-speed primary pump, a single-speed air blower or secondary pump, spa and auxiliary lights, and an Ozonator. It features a calibrated pressure switch and a robust 2-pole contactor to manage the multi position heater. The system is convertible to run on 120 volts. Available at Quality Spa Parts Company, it offers customization options for the control box, heater type, wiring, ozone unit, pumps, and topside. The UNI1000 ACC is a reliable choice for enhancing your hot tub experience.
Before you finalize your order for the Smart Touch 1000 Digital Control Pack with a digital topside, please review the following features and specifications to ensure it meets your needs:

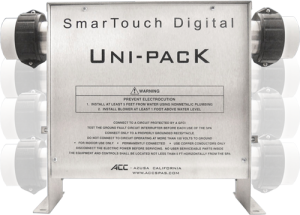

The Smart Touch 1000 UNI Digital Control Pack is a comprehensive spa control system designed with user-friendly features and built to last.
This unit is convertible to replace a Low Flo unit.

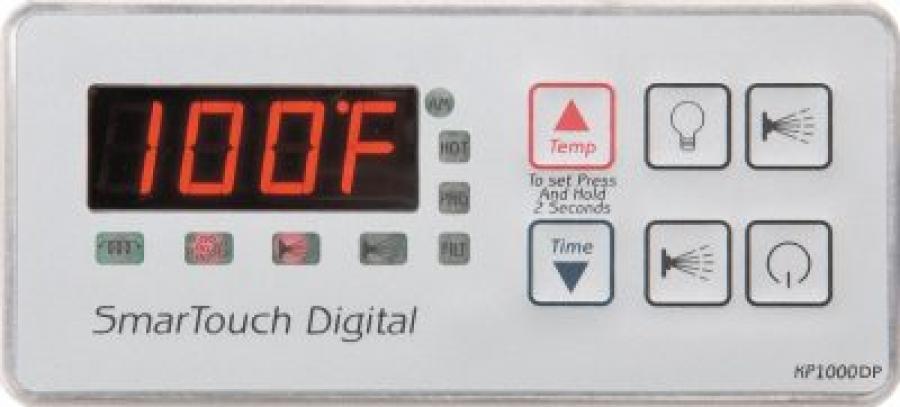

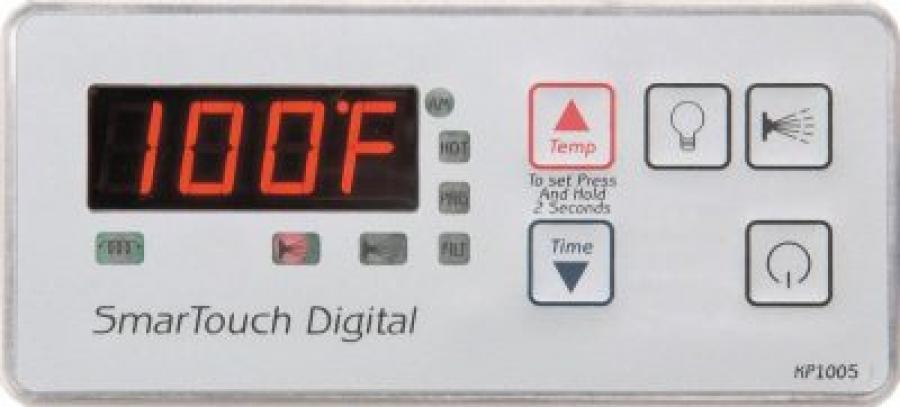

The package includes a digital topside measuring 2.5" x 5.5", which requires an access hole of 4 3/4" X 1 3/4" for installation.
An optional deluxe topside measuring 3.5" x 7.5" requiring a hole size of 6" x 2.25" is also available.
To review photos of the topsides available go to Smart Touch Topside Selection on our site.
The system can control one pump circuit with two speeds (110/220V, 12A Max), and a blower or Pump 2 circuit with one speed (110/220V, 12A Max).
It also includes a circulation pump circuit (110/220V, 4A Max) that operates 24 hours when activated and requires 25 GPM, an ozone circuit (110/220V, 1A Max), and a 12V 12W light circuit.

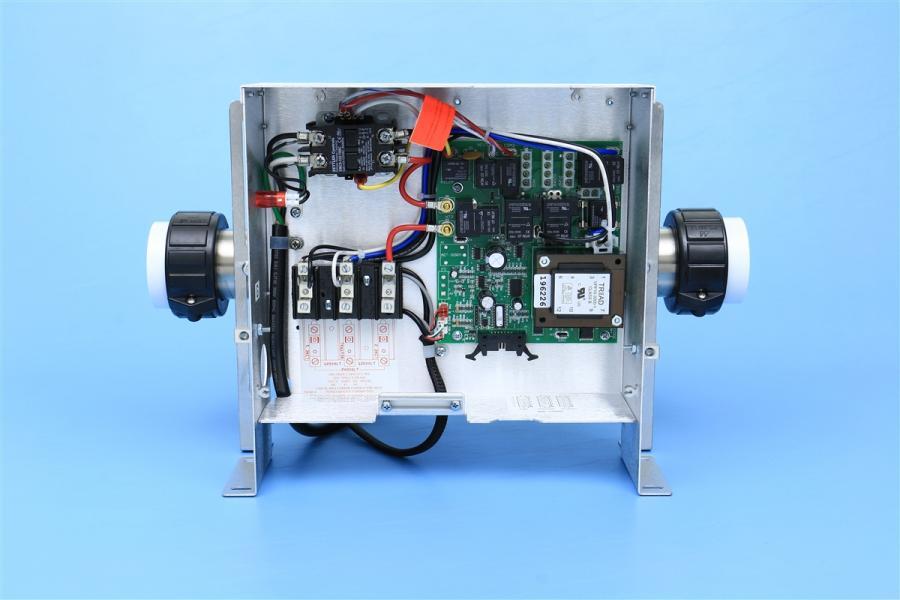

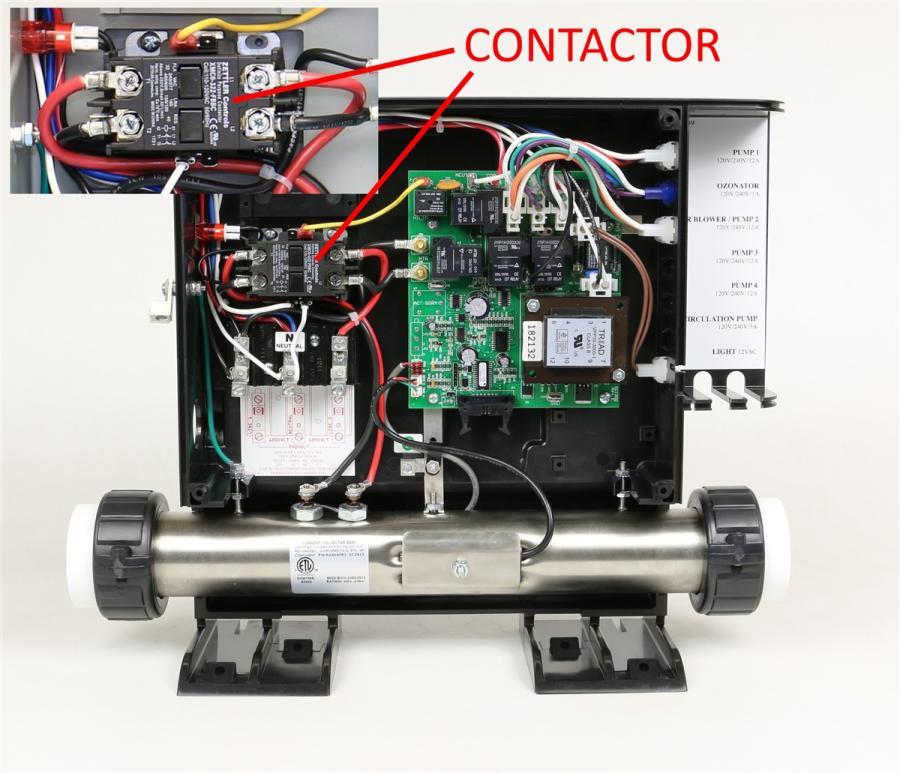

The package includes a 1.4/4.0KW, 120/240V Flo-Thru heater housed in stainless steel, a calibrated pressure switch, and a heavy-duty 2-pole contactor to control the attached heating element.

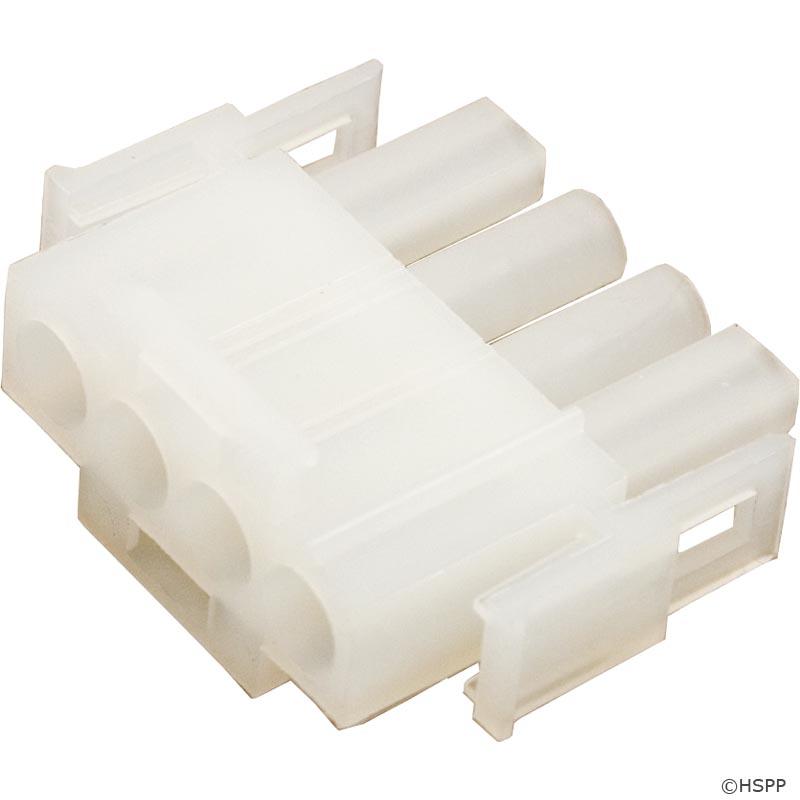

The system includes 48-inch cords with amp connectors for motor, blower, and ozone.
It offers freeze protection, high-limit protection, filtration mode, and an economy mode for energy efficiency.
The package includes a pair of 2-inch heater tailpieces with O-ring gaskets.
The product has a 2-year limited factory warranty for your peace of mind.
This controller has a flexible heater mount for replacing different heater placements and heater lengths. It’s an excellent replacement for virtually any spa control at an industry-best price.
Please note that this system is convertible and may be run on either 120 volts or 230 volts. However, if converting from 230V to 120V, pumps must be either 120V or convertible from 230V to 120V to work.
Before ordering, please verify the pack size requirements for installation as it is your responsibility to check this information. If you’re unsure about any of these features or need further assistance, please don’t hesitate to call us. We’re here to help ensure you choose the right product for your needs

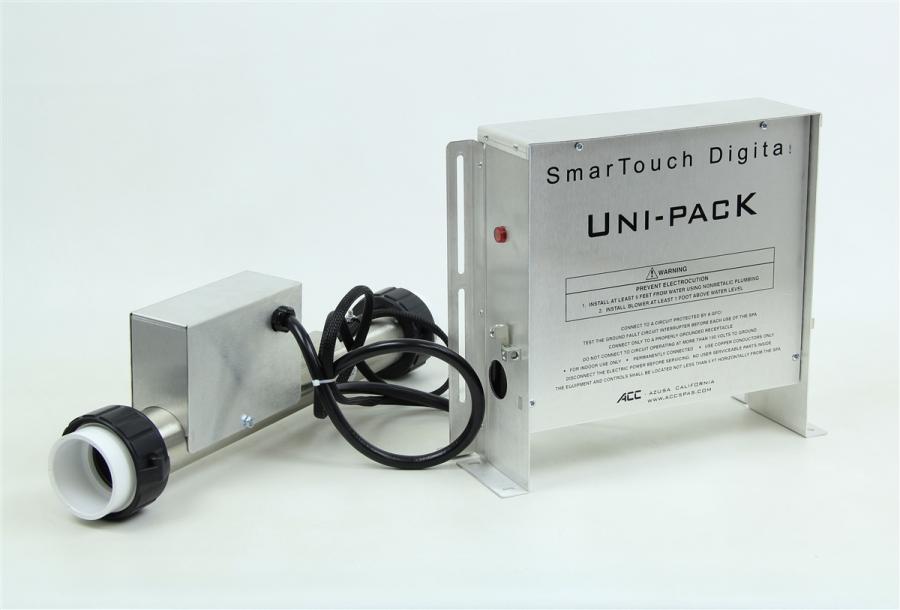

Unipack, Unipak, Uni Pack, Uni-Pack, or Uni-Pak. However, you spell it. It is a great Hot tub spa controller.
