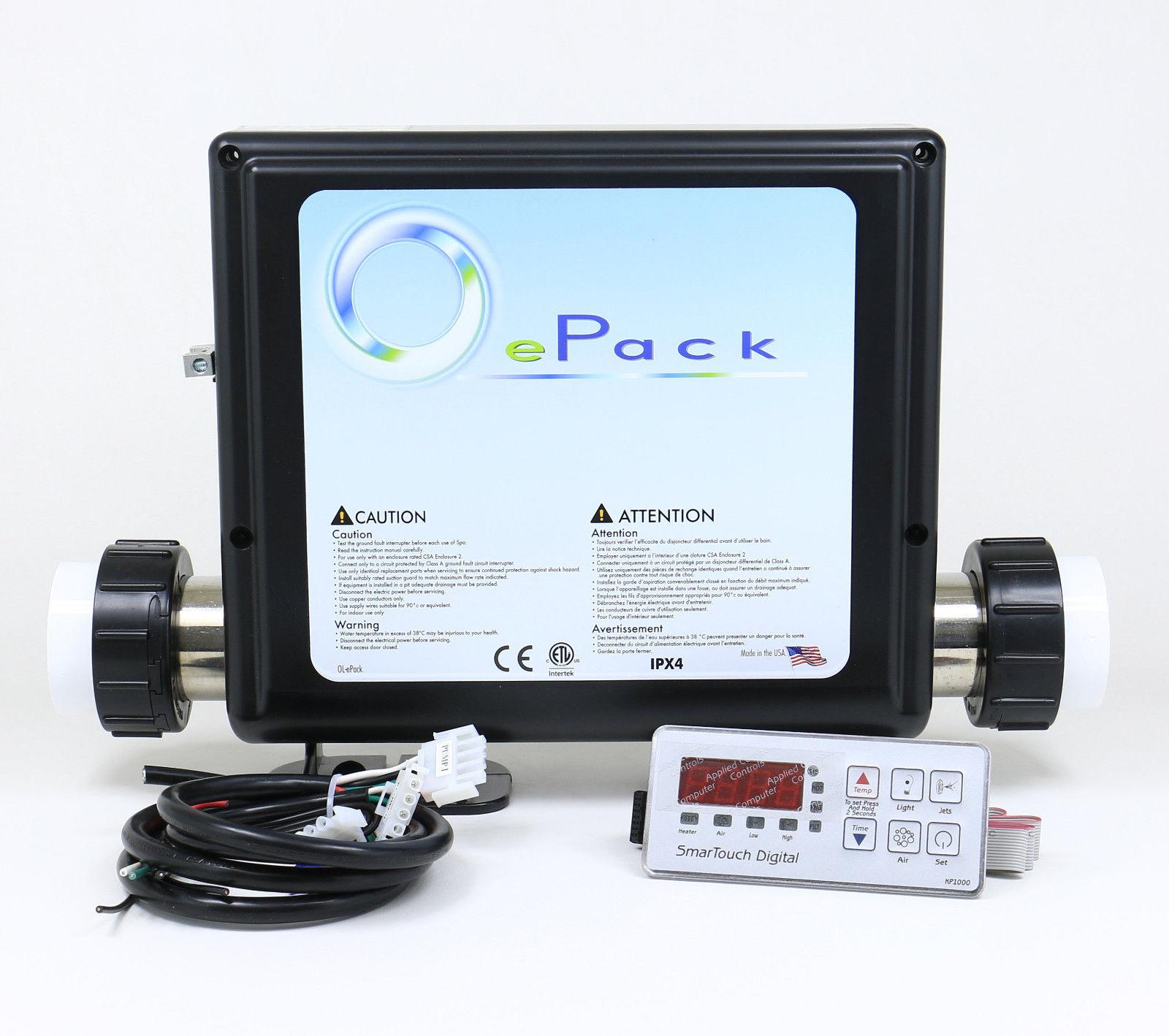

A complete hot tub control pack. TOPSIDE IS INCLUDED
The ePack controls a 2-speed primary pump, a single-speed air blower or a single-speed secondary pump, a 12-volt spa light, an auxiliary light, and an ozonator. This system is convertible and may be run on 120 volts.
Factory Shipping, Warranty, and Technical Support
Before finalizing your order for the ACC ePack with a digital topside, please review the following features and specifications to ensure it meets your needs:
Be Aware that a AIR BLOWER IS A PUMP. So if you have 2 water pumps and an air blower, you need a 3-pump controller.
The ACC ePack is a comprehensive spa control system designed with user-friendly features and built to last.
This unit is convertible to replace a Low Flo unit.

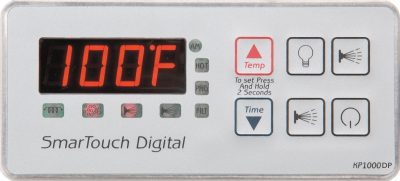

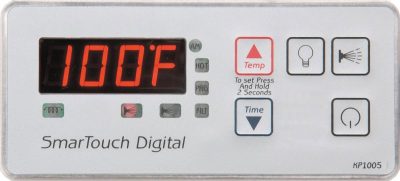

The package includes a digital topside measuring 2.5" x 5.5", which requires an access hole of 4 3/4" X 1 3/4" for installation. Options are available like the KP2105 (2” x 4.5”).
An optional deluxe topside measuring 3.5" x 7.5" requiring a hole size of 6" x 2.25" is also available.
To review photos of the topsides available go to Smart Touch Topside Selection on our site.
The system can control one pump circuit with two speeds (110/220V, 12A Max), and a second pump circuit with one speed (110/220V, 12A Max).
It also includes a circulation pump circuit (110/220V, 4A Max) that operates 24 hours when activated and requires 25 GPM, an ozone circuit (110/220V, 1A Max), and a 12V 12W light circuit.

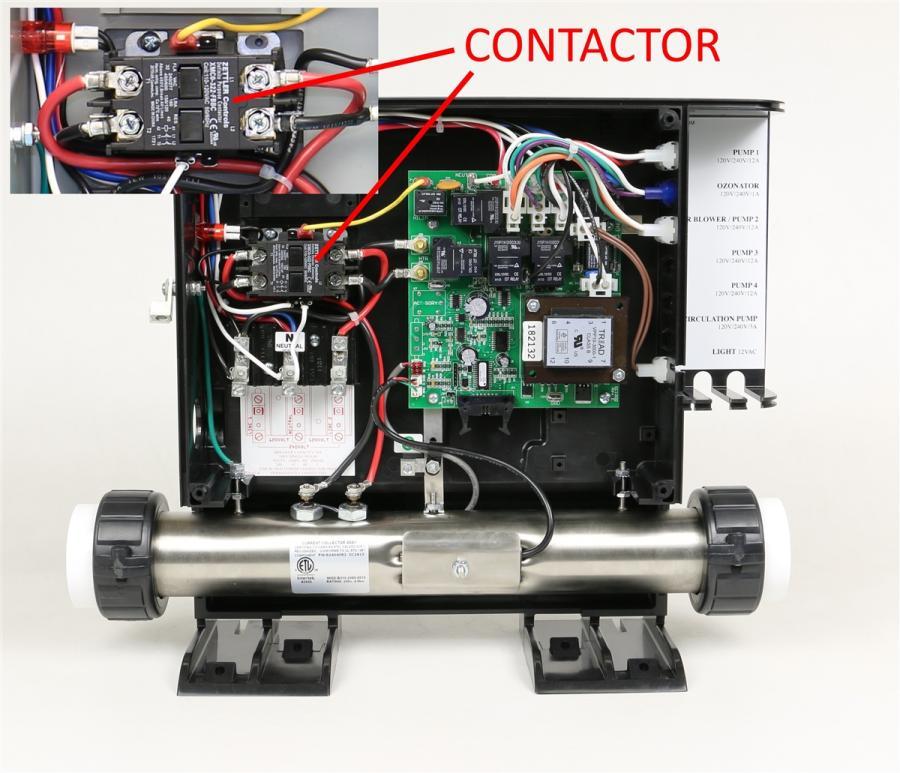

The package includes a 4.0KW, 240V Flo-Thru heater housed in stainless steel, a calibrated pressure switch, and a heavy-duty 2-pole contactor to control the attached heating element.

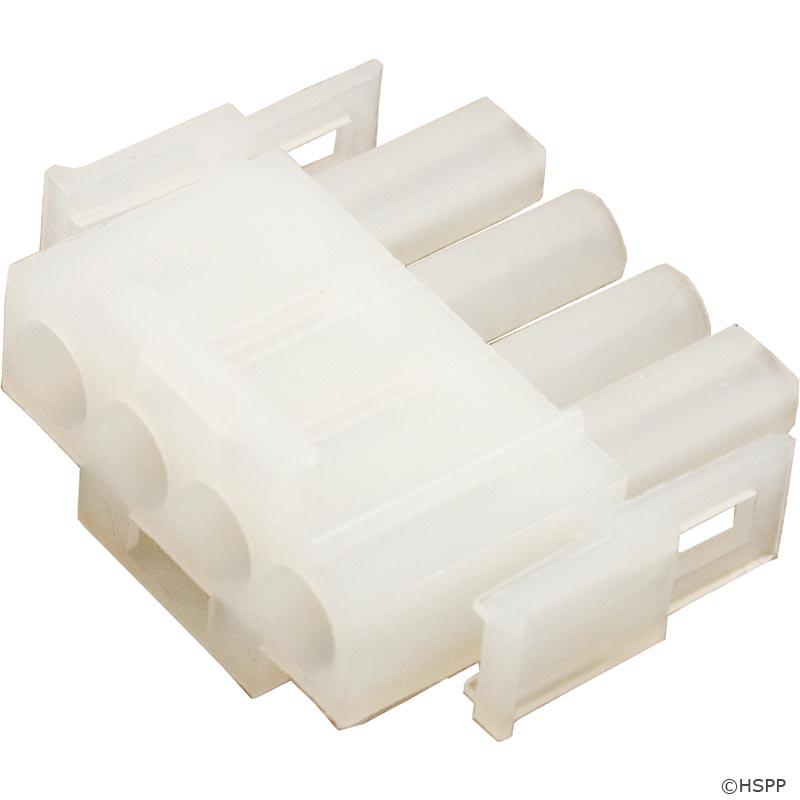

The system includes 48-inch cords with amp connectors for motor, blower, and ozone.
It offers freeze protection, high-limit protection, filtration mode, and an economy mode for energy efficiency.
The package includes a pair of 2-inch heater tailpieces with O-ring gaskets.
The product comes with a 2-year limited factory warranty for your peace of mind.
This controller is flexible enough to replace different heater placements and heater lengths controlling multiple pumps. It’s an excellent replacement for virtually any spa control at an industry-best price.
Please note that this system is convertible and may be run on either 120 volts or 230 volts. However, if converting from 230V to 120V, pumps must be either 120V or convertible from 230V to 120V to work.

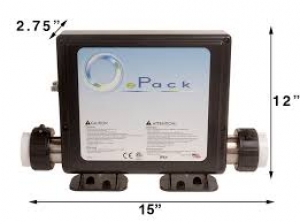

Before ordering, please verify the pack size requirements for installation as it is your responsibility to check this information. If you’re unsure about any of these features or need further assistance, please don’t hesitate to call us. We’re here to help ensure you choose the right product for your needs.
Super excited , this is second one I purchased to replace Marquis spa from 2006 year ( roughly) . Perfect fit . Nothing to cut or modify. Works like a chemp. Little tight but fits . Will buy again ..
Purchased for the spa salon, and second one for my self.
Compare to original Marquis parts i saved over a $1K easy. Main board housing is a lot better sealed than original Marquis. Hopefully will get a long time out of it. Custom service is superb. On both ends , seller and E-Pack .
