| Pump to Motor Foot Types |
1a |

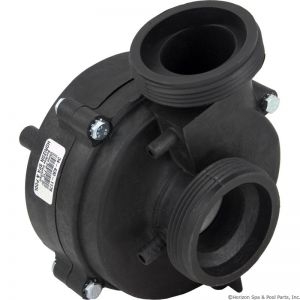

| Wet End Complete |
Complete Wet End |
| Drain Plug Location |
6 o`clock |
| Suction Connection Size |
2" |
| Suction Auxillary Port |
3/8" barb (b) 1ea. |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Style |
Center |
| Discharge Connection Size |
2" |
| Suction Connection (Physical Dimension) |
3-1/16" od |
| Discharge Connection Type |
Male Buttress Thread (mbt) |
| Operational Horsepower |
4.0hp |
| Suction Pipe Size |
2" |
| Discharge Auxillary Port |
3/8" barb (b) 1ea. |
| Discharge Style |
Side |
| Motor Frame |
48 Frame, 48 Frame Thru-Bolt |
| Discharge Connection (Physical Dimension) |
3-1/16" od |
| Discharge Pipe Size |
2" |
| Manufacturer |
Vico/Balboa |
| Horsepower |
4.0hp |
| Spa Pump Model |
Ultima |
| Manfufacturer Impeller Number |
1212221 black/green/red |
| Pump Model |
Ultima |
| Volute Fastening Type |
4 Bolts |
| Volute/Sealplate Number |
1211008 |
