Nu-Wave

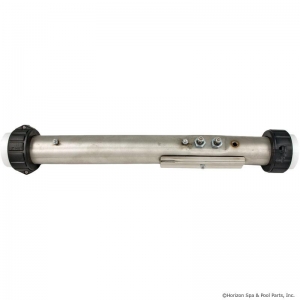

Stainless steel replacement heater assembly. 2" x 19" manifold includes 5.5kW/230v element and tailpiece assemblies. Pressure switch not included
Heater Application
NuWave, West Coast
Heater Length
19"
Heater Type
Flo Thru
Housing Configuration
Straight
Housing Diameter
2"
Kilowatts
1.375kW/5.5kW
Pressure Tap Orientation
0 Deg from Terminals
Voltage
115v/230v
Heater Inlet Size
2"
Heater Inlet Type
Slip (s)
Heater Outlet Size
2"
Heater Outlet Type
Slip (s)
Brand: Spa Components
Model: B24055C
Wattage: 5.5 kW
Voltage: 230V
Current: 20.8 amps
Dimensions: 19" x 2" x 18.3"
Weight: 3.0 lbs
Material: Stainless steel
Features:
Flow-through design
Incoloy coated heater element
1/8" NPT pressure switch tap
Shipped with 2" tailpieces, split nuts, and gaskets
Pressure switch not included
This heater is designed for use in spas and hot tubs with NuWave controls. It is a 5.5 kW heater, which means it can heat up to 550 gallons of water by 40 degrees Fahrenheit. The heater is made of stainless steel and has a flow-through design, which means that the water flows through the heater element directly. This helps to ensure that the water is heated evenly. The heater also has an Incoloy coated heater element, which is more resistant to corrosion than other types of heater elements.
The B24055C heater is a good choice for spas and hot tubs that need a reliable and efficient heater. It is also a relatively affordable option.
