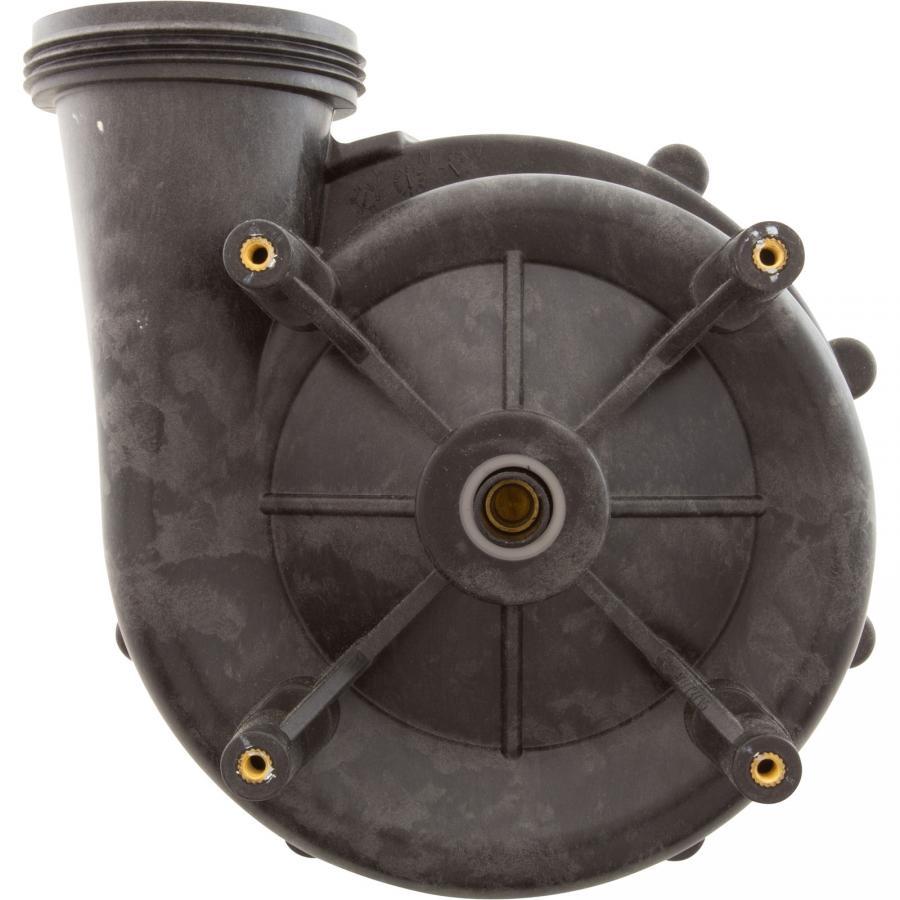

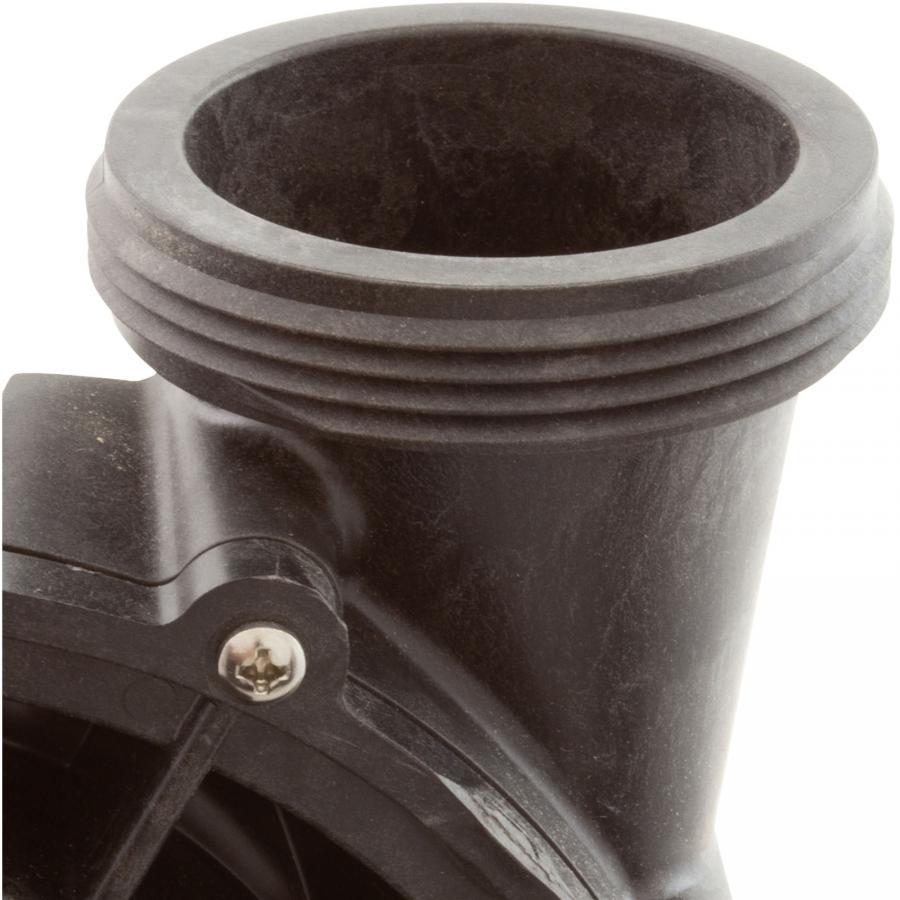

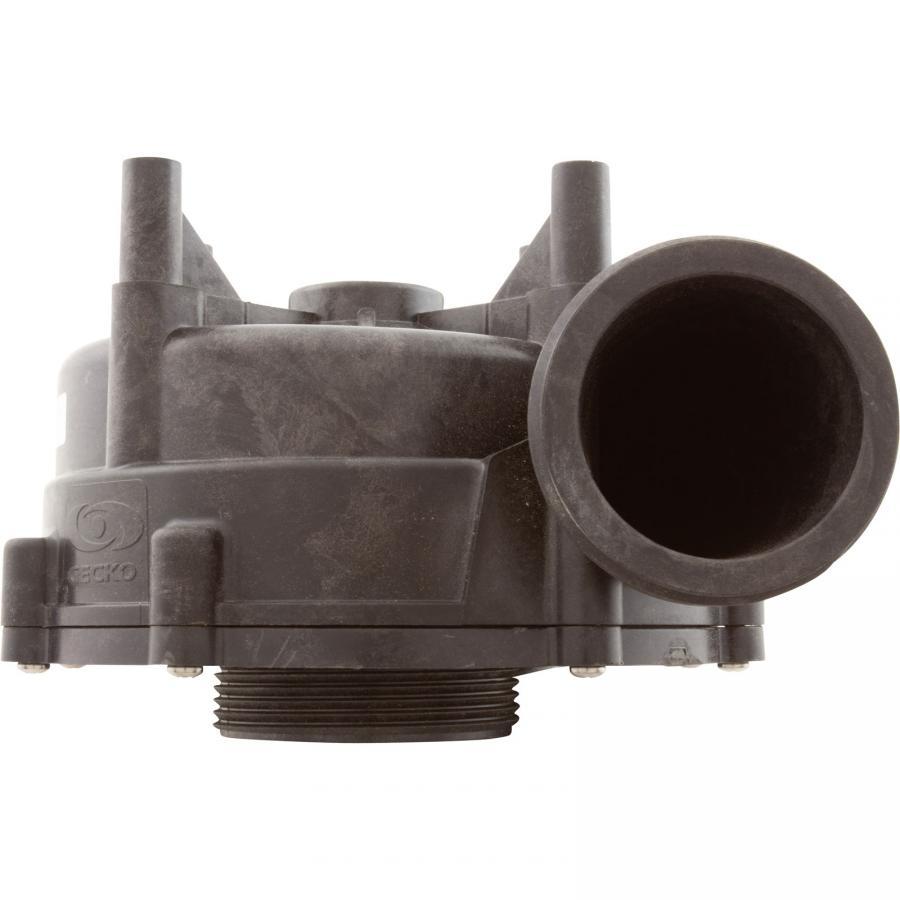

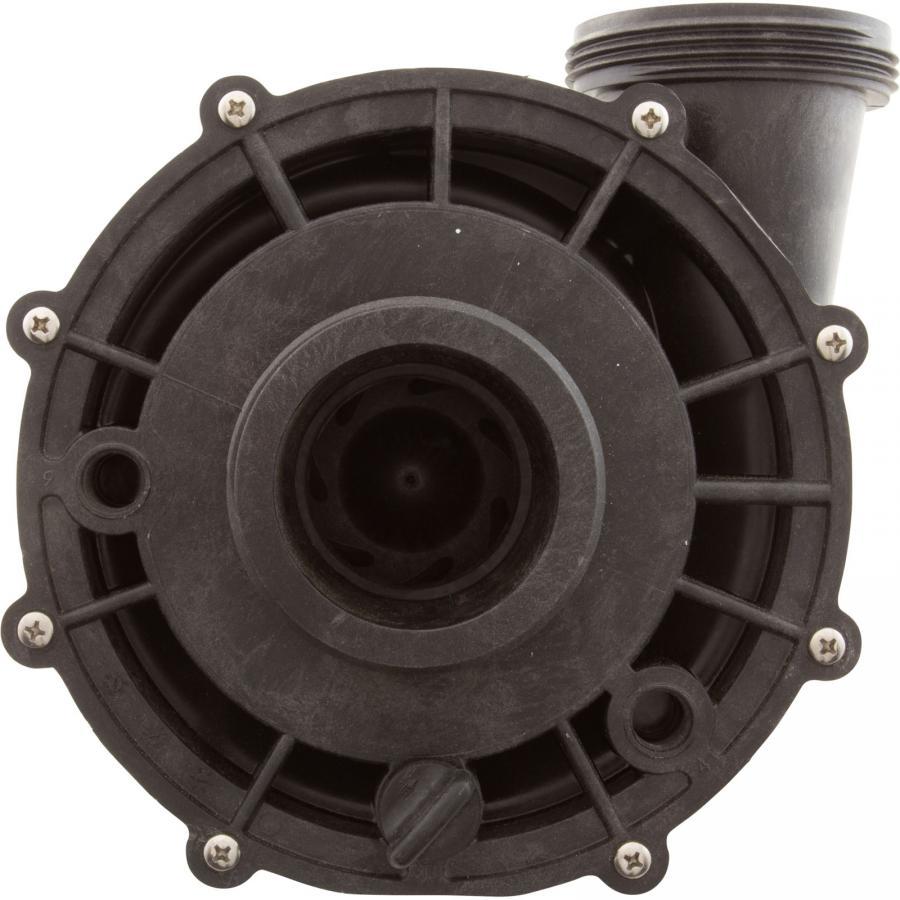

Wet End, Gecko AquaFlo FMXP2 2.5hp 2"mbt 6.1"dia 56fr

Wet End, Gecko AquaFlo FMXP2 2.5hp 2"mbt 6.1"dia 56fr
Click to enlarge
Sale Price: $80.00
Compared at: $100.00
You Save: $20.00
Product ID : 91041623
Weight: 3.00 lbs
E-mail to a friend | Add To Wish List

Overview

Replaces Sundance / Jaccuzi wetend

Purchase

Description

Note: This is a 6.1 wet end.

56 frame spa wet ends can have one of two designations - 6.1 or 6.3. The difference is the measurement between the top two thru-bolts. 6.1 wet ends measure 4" and 6.3 wet ends measure 4-1/8". See diagram below.




Pump to Motor Foot Types 14
Motor Frame 56 Frame Thru-Bolt- 4" Spacing
Drain Plug Location 4,6,9 o`clock
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 3-1/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Auxilary Port None
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 2.5hp
Manufacturer AquaFlo/Gecko
Pump Model Flo-Master XP2
Manufacturer Impeller Number 91694251
Volute Fastening Type 8 Screws
