Wet End, Gecko AquaFlo FMCP 1.5ohp/2.0thp 1-1/2"mbt 48fr

Wet End, Gecko AquaFlo FMCP 1.5ohp/2.0thp 1-1/2"mbt 48fr
Click to enlarge
Sale Price: $80.00
Compared at: $100.00
You Save: $20.00
Product ID : 91040820
Weight: 3.00 lbs
E-mail to a friend | Add To Wish List

Overview

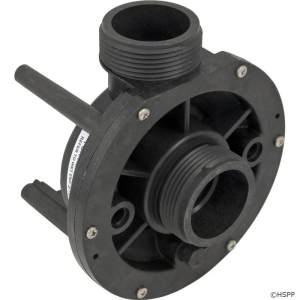

AquaFlo/Gecko Wet End

Center discharge, 1-1/2"mbt suction/discharge, 48 frame wet end for FMCP pump. This wet end is used with a 1.5hp, 48Y frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.

In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.

Purchase

Description

Pump to Motor Foot Types 15
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 6 o`clock
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 2-7/16" od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2"
Discharge Auxilary Port None
Discharge Style Center
Discharge Connection (Physical Dimension) 2-7/16" od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2"
Horsepower 1.5hp
Manufacturer AquaFlo/Gecko
Pump Model Flo-Master FMCP
Manufacturer Impeller Number 91693651
Volute Fastening Type 6 Screws
Volute/Sealplate Number 92770603
