Aqua flo Wetends

Aqua flo Wetends

Frames" refers to the size of your Motor. All main spa motors have either 48 or 56 frames. 48 frame  motors are 5.5" in diameter. 56 frame pump motors are typically 6.5" in diameter. You can also determine the frame size from the bolt spacing- the 48 frame is 3-5/8" and the 56 frame is 4-1/4."

To determine the size of the plumbing, measure from outside thread to outside thread.
 If it measures 2 3/8 it is 1 1/2 inch.
 If it measures approx 3 inches, it is 2 inch.

We are asked how large of a pump can I put on my spa?   Well, 1.5 inch plumbing  2.0hp.  2 inch plumbing 5hp.

RULE of THUMB; 10 - 15 jets - 1.5 -2 hp, 15 - 20 jets - 3hp, 20 - 25 jets -  4hp ( This is WATER no Air jets. ) You do not have to have the same size pump with multiple pump systems. 2 & 3, 2 & 4, 3 & 5 etc based on your performance and jet requirements.

Drain Plug,XP2,XP2E,XP3
Drain Plug,XP2,XP2E,XP3 Aqua flo
$6.00
$4.50
Aqu Flo Drain Plug,XP2,XP2E,XP3
Aqu Flo Drain Plug,XP2,XP2E,XP3
$8.00
$6.00
Wet End 1.0 HP FMVP
AquaFlo/Gecko Wet End Top suction, side discharge, 1-1/2"mbt...
$100.00
$70.00
Wet End 1.0HP FMXP2
Wet End 1.0HP FMXP2
$100.00
$70.00
Wet End 1.0HP TMCP
Wet End 1.0HP TMCP
$100.00
$70.00
Wet End, 2.0HP 2", 6.1"Dia. 56 Frame FMXP2
Wet End, 2.0HP 2", 6.1"Dia. 56 Frame FMXP2
$100.00
$70.00
Wet End, Gecko Aqua-Flo XP2/XP2E 1.5ohp/2.0thp 2"mbt 48fr
AquaFlo/Gecko Wet End Side discharge, 2"mbt suction/discharge, 48 frame...
$100.00
$70.00
Wet End, Gecko Aqua-Flo XP2/XPE 2.0ohp/3.0thp 2"48fr
AquaFlo/Gecko Wet End Side discharge, 2"mbt suction/discharge, 48 frame...
$100.00
$70.00
Wet End, Gecko AquaFlo FMCP 0.5hp 1-1/2"mbt 48fr
Wet End 1/2HP FMCP
$100.00
$70.00
Wet End, Gecko AquaFlo FMCP 1.0ohp/1.5thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Center discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMCP 1.5ohp/2.0thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Center discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMCP 2.0ohp/3.0thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Center discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMHP 0.75ohp/1.0thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Side discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMHP 1.0ohp/1.5thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Side discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMHP 1.5ohp/2.0thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Side discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMHP 2.0ohp/3.0thp 1-1/2"mbt 48fr
AquaFlo/Gecko Wet End Side discharge, 1-1/2"mbt suction/discharge, 48...
$100.00
$70.00
Wet End, Gecko AquaFlo FMXP2 3.0hp 2"mbt 6.1"dia 56fr

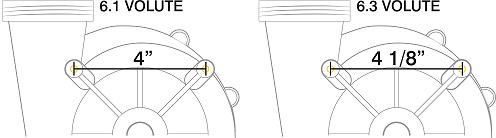

56 frame spa wet ends can have one of two designations - 6.1 or 6.3. The...
$100.00
$70.00
Wet End, Gecko AquaFlo TMCP 2.0hp 1-1/2"mbt 48fr
Wet End 2.0HP TMCP
$118.00
$70.00
Wet End, Gecko AquaFlo XP2 1.0hp 2"mbt 48fr
AquaFlo/Gecko Wet End Side discharge, 2"mbt suction/discharge, 48 frame...
$100.00
$70.00
Wet End, Gecko AquaFlo XP2/XP2E 1.5ohp/2.0thp 2"mbt, 6.3"56fr
AquaFlo/Gecko Wet End Side discharge, 2"mbt suction/discharge, 56 frame...
$100.00
$70.00

Frames" refers to the size of your Motor. All main spa motors have either 48 or 56 frames. 48 frame  motors are 5.5" in diameter. 56 frame pump motors are typically 6.5" in diameter. You can also determine the frame size from the bolt spacing- the 48 frame is 3-5/8" and the 56 frame is 4-1/4."

To determine the size of the plumbing, measure from outside thread to outside thread.
 If it measures 2 3/8 it is 1 1/2 inch.
 If it measures approx 3 inches, it is 2 inch.

We are asked how large of a pump can I put on my spa?   Well, 1.5 inch plumbing  2.0hp.  2 inch plumbing 5hp.

RULE of THUMB; 10 - 15 jets - 1.5 -2 hp, 15 - 20 jets - 3hp, 20 - 25 jets -  4hp ( This is WATER no Air jets. ) You do not have to have the same size pump with multiple pump systems. 2 & 3, 2 & 4, 3 & 5 etc based on your performance and jet requirements.
